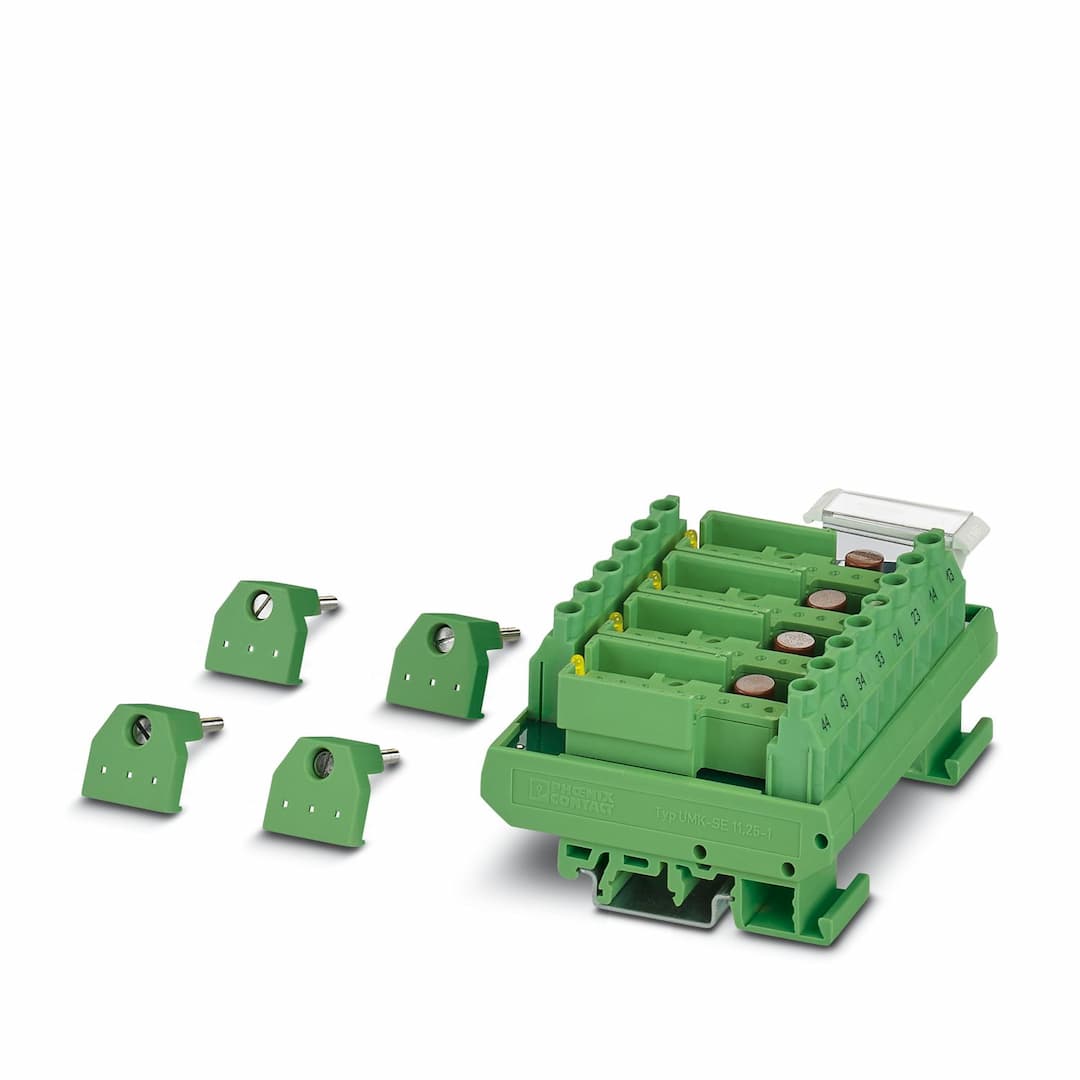

Product Model
UMK- 4 OM-R/MF
Selling Points
- 14 Solid-State Relays: Plug-in socket for seamless integration.
- 2Security Latch: Ensures reliable and secure operation.
- 3Screw Connections: Easy and durable connectivity.
- 4Light Indicator & Fuse: Enhanced line protection and status display.
- 5Ambient Temperature Range: Operates from -20°C to 55°C, suitable for various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Multi-channel solid-state relay module | No. of channels | 4 |
Compatible components | Digital I/O modules | With components | no |
Input voltage range | 4 V ... 32 V | Typical input current at U | 30 mA (Optocoupler dependent) |
Status display/channel | Yellow LED | Compatible components | Digital I/O modules |
Limiting continuous current | 4 A | Error detection (line break / short-circuit) | no |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Number of connections | 1 |
Number of positions | 6 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Number of connections | 8 |
Number of positions | 9 | Conductor cross section rigid | 0.2 mm² ... 6 mm² |
Conductor cross section flexible | 0.2 mm² ... 4 mm² | Conductor cross section AWG | 24 ... 10 |
Width | 90 mm | Height | 77 mm |
Depth | 72 mm | Color | green (RAL 6021) |
Housing insulation material | PVC, side panel PA non-reinforced, | Ambient temperature (operation) | -20 °C ... 55 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | DIN VDE 0110b, Gr. C for 250 V DC
DIN VDE 0160 (in relevant parts) |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any |
Specifications may be subject to change without notice
