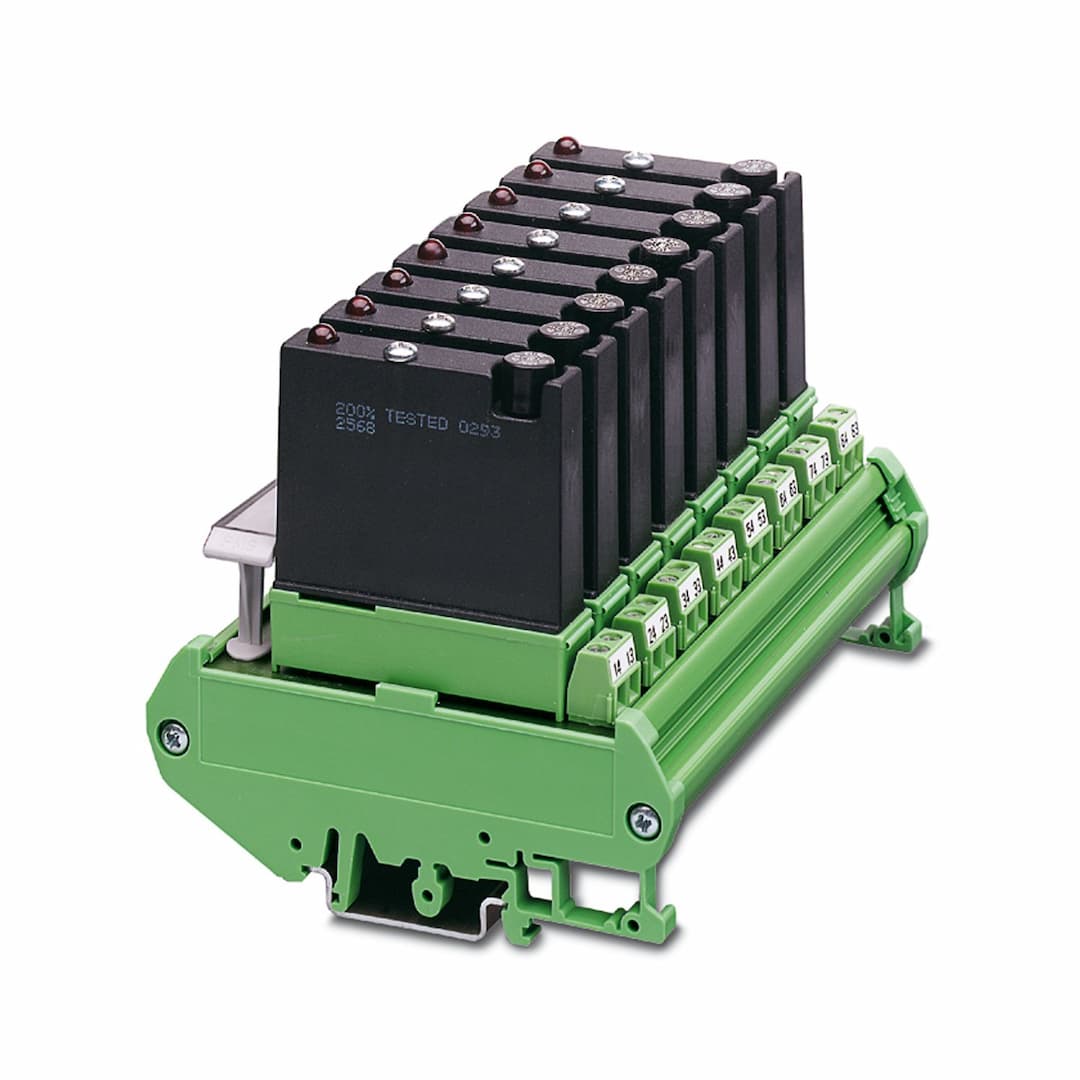

Product Model
UMK- 8 OM/AMSC/PLC
Selling Points
- 1High Reliability: 100% operating factor ensures consistent performance.
- 2Robust Insulation: Safe isolation and reinforced insulation for reliable operation.
- 3Versatile Connectivity: Plug-in sockets for Generation 4 solid-state relays from OPTO 22.
- 4Compact Design: Compact dimensions (180 mm x 77 mm x 80 mm) for easy integration.
- 5Enhanced Safety Features: Includes a status display with a yellow LED and an output fuse for added safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | No. of channels | 8 |
Compatible components | Solid-state relay, Generation 4 from OPTO 22 | With components | no |
Insulation | Functional insulation | Rated surge voltage | 1.2 kV |
Suitable I/O card | 6ES7422-1BL00-0AA0
6ES7422-7BL00-0AB0 | Suitable I/O card | IC693 MDL732
IC693 MDL740
IC693 MDL742 |
Suitable I/O card | 1756-OB32
1756-OB16E | Suitable I/O card | 1771 OBN |
Suitable I/O card | 1746 OB16
1746 OB 32 | Suitable I/O card | TC-ODD 321 |
Suitable I/O card | QY81P | Suitable I/O card | CPU 313C-2DP
CPU 314C-2DP
CPU 314C-2PtP
6ES7322-1BH01-0AA0
6ES7322-1BL00-0AA0
6ES7323-1BH01-0AA0
6ES7323-1BL00-0AA0
CPU 313C
CPU 313C-2PtP |
Suitable I/O card | DO810
DO840 | Suitable I/O card | IC694MDL754 |
Nominal input voltage U | 24 V DC | Protective circuit | Reverse polarity protection; Polarity protection diode |
Operating voltage display | Green LED | Compatible components | Solid-state relay, Generation 4 from OPTO 22 |
Contact switching type | 1 N/O contact | Maximum switching voltage | 250 V AC/DC |
Limiting continuous current | 6 A | Nominal supply voltage | 250 V AC/DC (data is module-specific) |
Continuous load current | 6 A | Error detection (line break / short-circuit) | no |
Connection method | Screw connection | Stripping length | 6 mm |
Screw thread | M3 | Number of connections | 18 |
Number of positions | 2 | Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 1.5 mm² | Conductor cross section AWG | 26 ... 14 |
Connection method | IDC/FLK pin strip | Number of connections | 1 |
Number of positions | 14 | Pitch | 2.54 mm |
Status display present | Yes | Width | 123.5 mm |
Height | 90 mm | Depth | 87 mm |
Color | green (RAL 6021) | Housing insulation material | PVC, side panel PA non-reinforced, |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | IEC 60664
DIN EN 50178 | Mounting type | DIN rail mounting |
Mounting position | any | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
