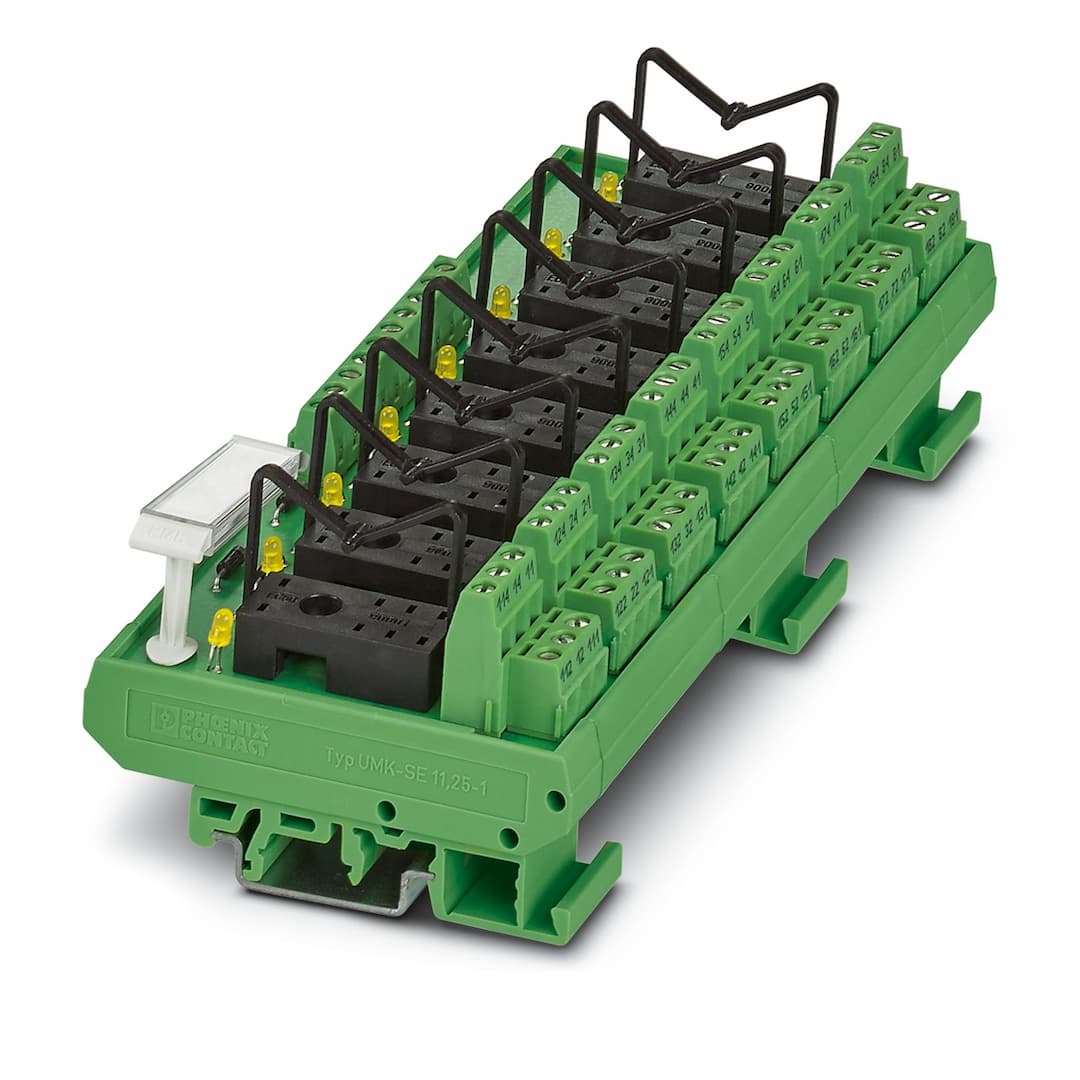

Product Model
UMK- 8 RELS/KSR-24/21/21
Selling Points
- 1Designed with 8 miniature relays for reliable operation in various applications.
- 2Measures 168.8 mm x 77 mm x 59 mm, making it a compact solution for space-constrained environments.
- 3Equipped with a yellow LED for easy status monitoring of the relay channels.
- 4Operates within an ambient temperature range of -20°C to 50°C, ensuring flexibility in different environments.
- 5Meets DIN VDE 0110 standards and is EMC class A compliant, ensuring safety and regulatory compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
EMC note | EMC: class A product, see manufacturer's declaration in the download area | Product type | Multi-channel relay module |
No. of channels | 8 | Compatible components | Miniature relays or miniature optocouplers |
With components | no | Overvoltage category | III |
Pollution degree | 2 | Nominal input voltage U | 24 V DC ±10 % |
Input voltage range in reference to U | 0.9 ... 1.1 | Protective circuit | Freewheeling diode; Freewheeling diode
Reverse polarity protection; Polarity protection diode |
Status display/channel | Yellow LED | Compatible components | Miniature relays or miniature optocouplers |
Contact switching type | 2 changeover contacts | Maximum switching voltage | 250 V AC |
Limiting continuous current | 5 A | Error detection (line break / short-circuit) | no |
Connection method | Screw connection | Stripping length | 6 mm |
Screw thread | M3 | Number of connections | 1 |
Number of positions | 10 | Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 1.5 mm² | Conductor cross section AWG | 26 ... 14 |
Connection method | Screw connection | Stripping length | 6 mm |
Screw thread | M3 | Number of connections | 48 |
Number of positions | 6 | Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 1.5 mm² | Conductor cross section AWG | 26 ... 14 |
Status display present | Yes | Width | 168.8 mm |
Height | 77 mm | Depth | 59 mm |
Color | green (RAL 6021) | Housing insulation material | PVC, side panel PA non-reinforced, |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | DIN VDE 0110 | Mounting type | DIN rail mounting |
Mounting position | any |
Specifications may be subject to change without notice
