Product Model

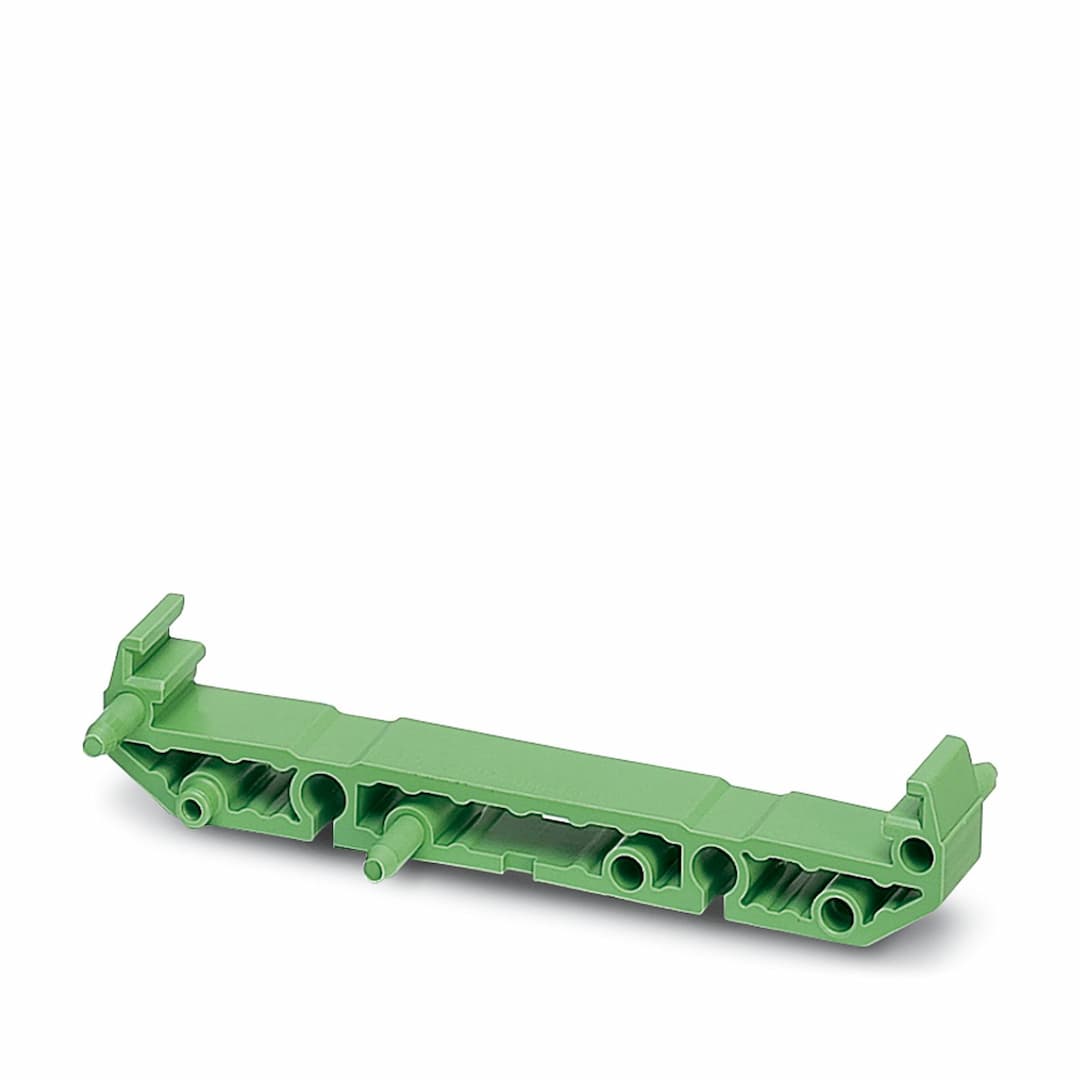

UMK-BE 11,25 GROSSVERPACKUNG
Selling Points
- 1Designed for consistent performance in various ambient conditions.
- 2Measures 11.25 mm in length and 15.5 mm in depth.
- 3Made from high-quality polyamide with a flammability rating of V2.
- 4Plug-in module design for seamless integration into electronic boards.
- 5Operates from -40°C to 105°C, ensuring flexibility in different environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Component housing lower part | Housing type | Press-drawn section housings |
Housing series | UMK | Product family | UMK BE |
Type | Module width 11.25 mm, since the housing can remain open at the top, it is possible for parts to protrude above the actual profile height | Type | Plug-in module base element |
Ventilation openings present | no | Depth | 15.5 mm |
Length | 11.25 mm | Profile width (external) | 77 mm |
Profile width (internal) | 72.2 mm | Color (Housing) | green (RAL 6021) |
Flammability rating according to UL 94 | V2 | Housing material | Polyamide |
Surface characteristics | untreated | Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
Ambient temperature (storage/transport) | -40 °C ... 55 °C | Ambient temperature (assembly) | -5 °C ... 100 °C |
Relative humidity (storage/transport) | 80 % |
Specifications may be subject to change without notice
