Product Model

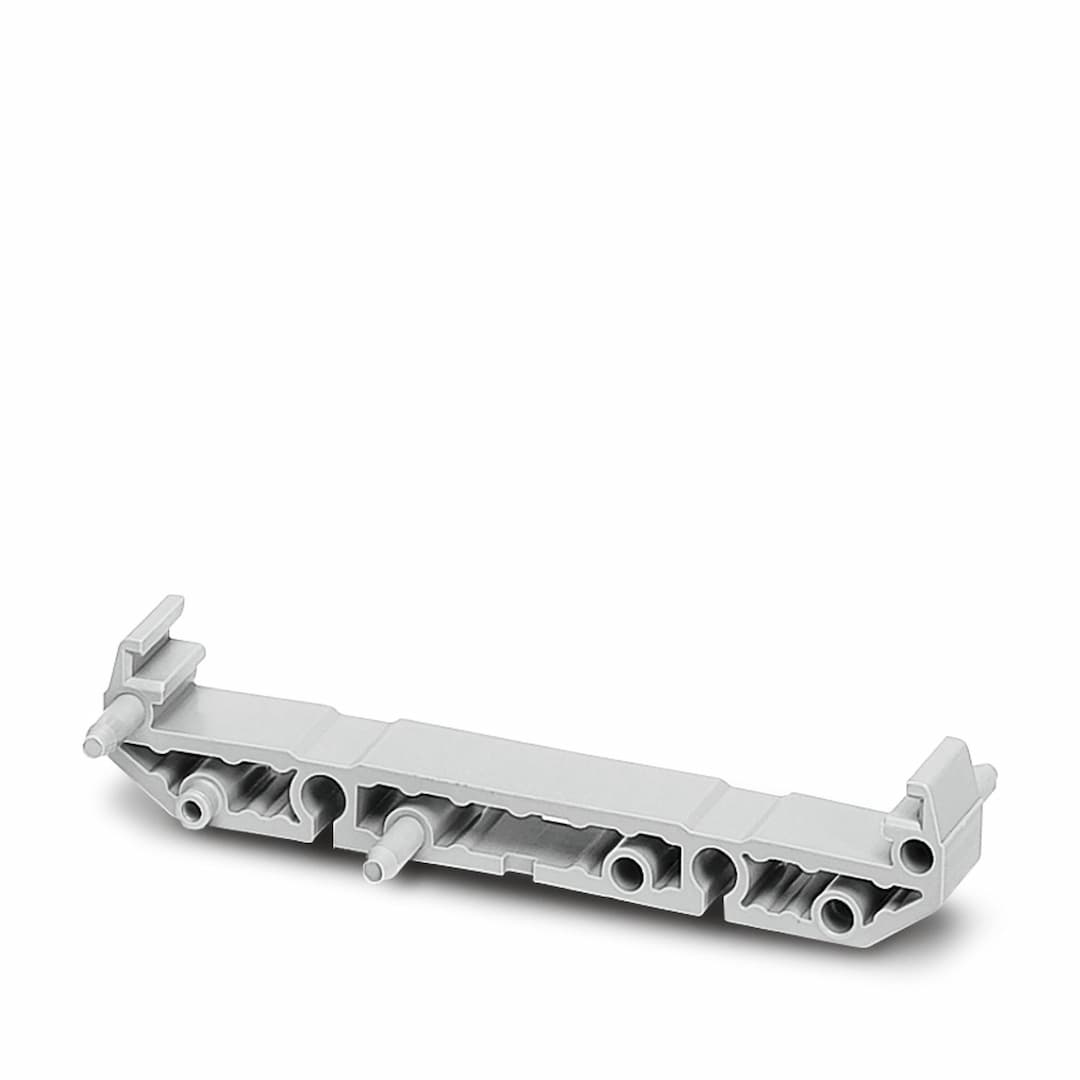

UMK-BE 11,25 KMGY
Selling Points
- 1Durable polyamide housing with light grey color (RAL 7035).
- 2Compliant with UL 94 V2 flammability rating.
- 3Suitable for ambient temperatures from -40°C to 105°C.
- 4Compact dimensions: 15.5 mm depth, 11.25 mm length, and 77 mm external profile width.
- 5Ideal for electronic board bases and plug-in modules in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Component housing lower part | Housing type | Press-drawn section housings |
Housing series | UMK | Product family | UMK BE |
Type | Plug-in module base element | Ventilation openings present | no |
Depth | 15.5 mm | Length | 11.25 mm |
Profile width (external) | 77 mm | Profile width (internal) | 72.2 mm |
Color (Housing) | light gray (RAL 7035) | Flammability rating according to UL 94 | V2 |
Housing material | Polyamide | Surface characteristics | untreated |
Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) | Ambient temperature (storage/transport) | -40 °C ... 55 °C |
Ambient temperature (assembly) | -5 °C ... 100 °C | Relative humidity (storage/transport) | 80 % |
Specifications may be subject to change without notice
