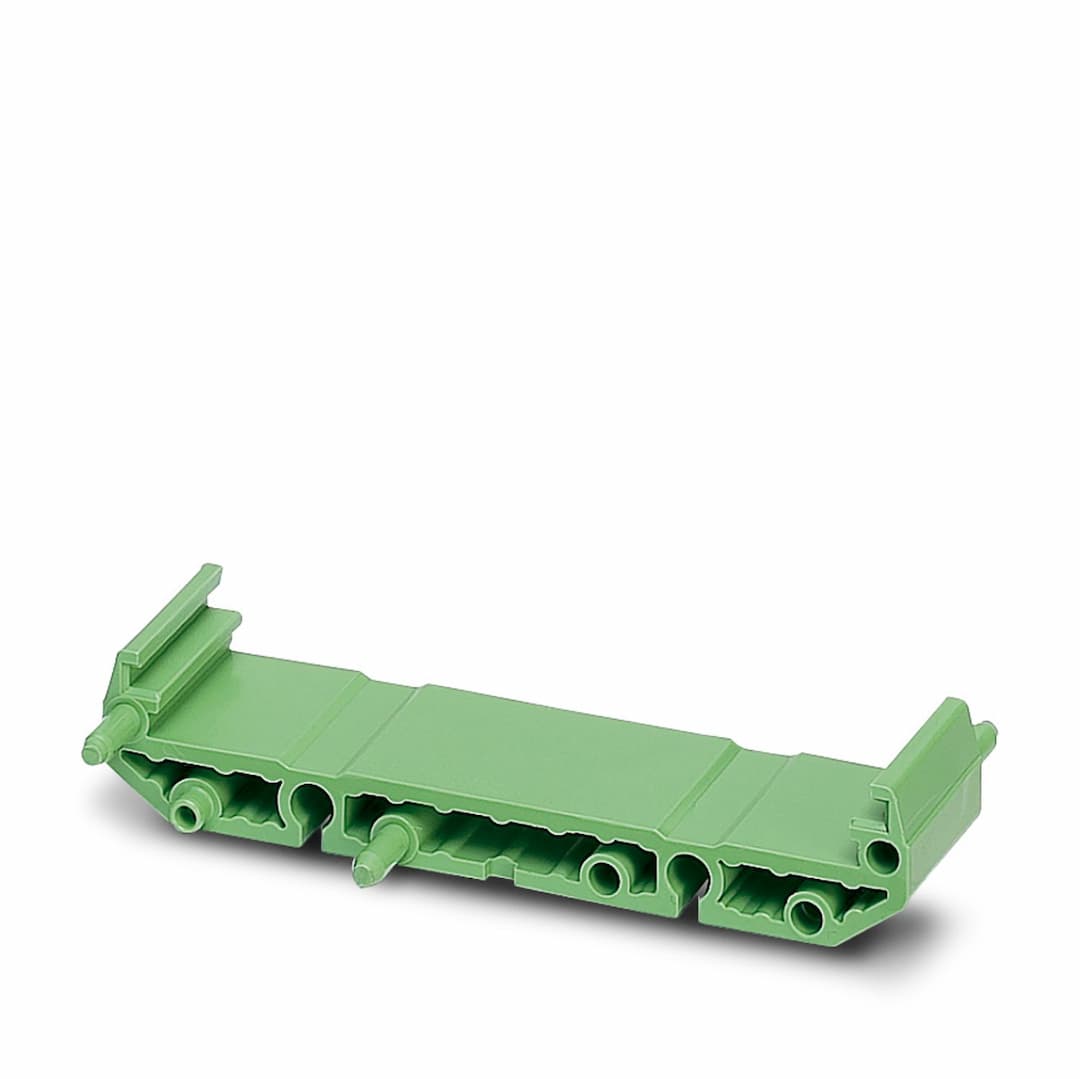

Product Model
UMK-BE 22,5
Selling Points
- 1Durable Polyamide Housing: Made from high-quality polyamide, ensuring long-lasting performance.
- 2Compact Design: Module width of 22.5 mm, perfect for space-constrained applications.
- 3Versatile Mounting Options: Compatible with DIN rail NS 32 and NS 35/7.5, offering flexible installation.
- 4Environmental Compliance: Meets China RoHS standards, ensuring environmentally friendly use.
- 5UL Recognized Approval: Compliant with UL 94 V2 flammability rating, ensuring safety in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Component housing lower part | Housing type | Press-drawn section housings |
Housing series | UMK | Product family | UMK BE |
Type | Module width 22,5 mm, since the housing can remain open at the top, it is possible for parts to protrude above the actual profile height | Type | Plug-in module base element |
Ventilation openings present | no | Article revision | 02 |
Depth | 15.5 mm | Length | 22.5 mm |
Profile width (external) | 77 mm | Profile width (internal) | 72.2 mm |
Color (Housing) | green (RAL 6021) | Flammability rating according to UL 94 | V2 |
Housing material | Polyamide | Surface characteristics | untreated |
Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) | Ambient temperature (storage/transport) | -40 °C ... 55 °C |
Ambient temperature (assembly) | -5 °C ... 100 °C | Relative humidity (storage/transport) | 80 % |
Specifications may be subject to change without notice
