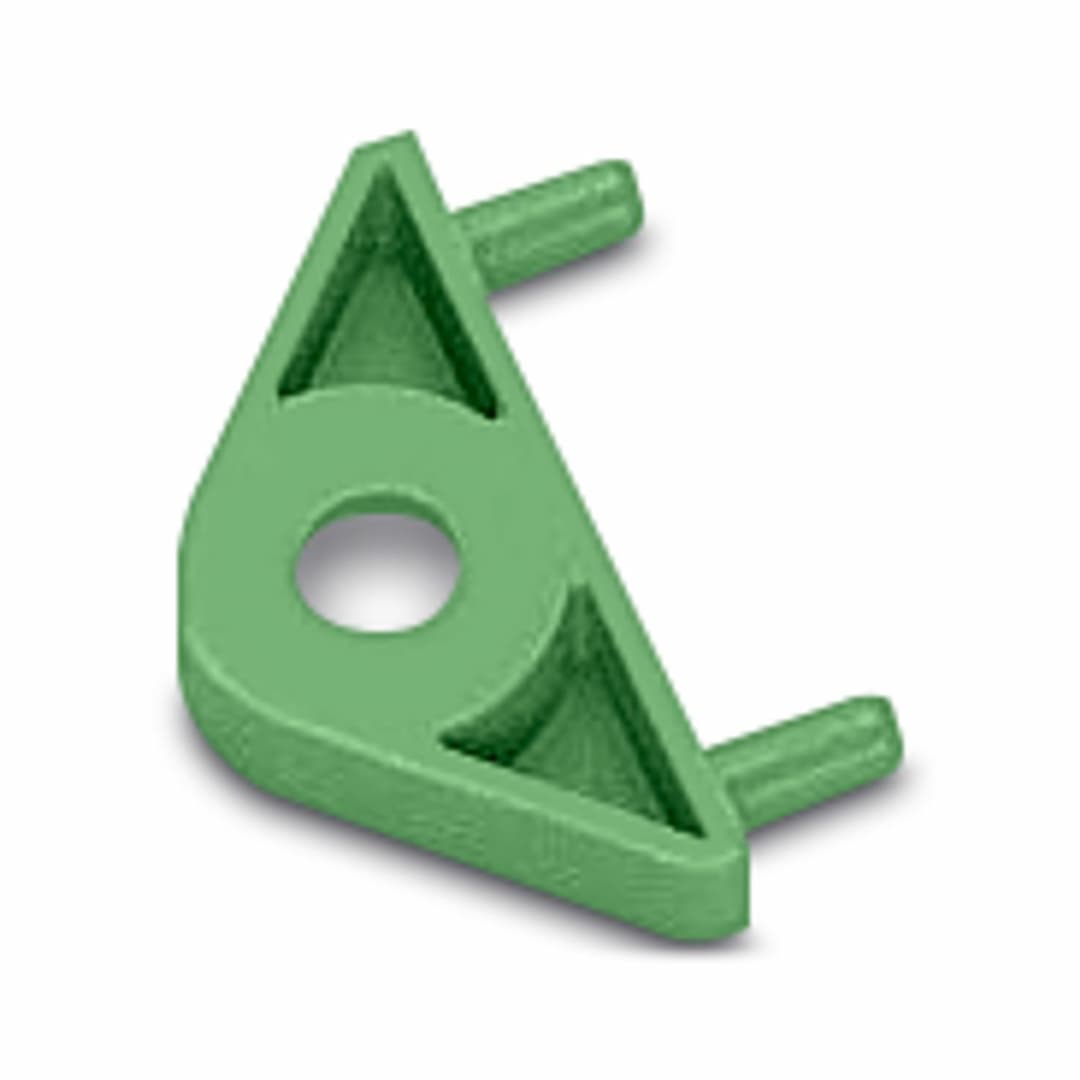

Product Model
UMK-BF
Selling Points
- 1Fast assembly thanks to the plug-in module principle.
- 2Secure connection through tight engagement of individual elements.
- 3Wide range of options for external conductor connections.
- 4Supports direct wall mounting with a universal foot.
- 5Environmentally friendly, compliant with China RoHS standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Flange | Housing type | Press-drawn section housings |
Housing series | UMK | Ventilation openings present | no |
Width | 4.6 mm | Height | 26 mm |
Color (Housing) | green (RAL 6021) | Flammability rating according to UL 94 | V2 |
Housing material | Polyamide | Surface characteristics | untreated |
Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) | Ambient temperature (storage/transport) | -40 °C ... 55 °C |
Ambient temperature (assembly) | -5 °C ... 100 °C | Relative humidity (storage/transport) | 80 % |
Specifications may be subject to change without notice
