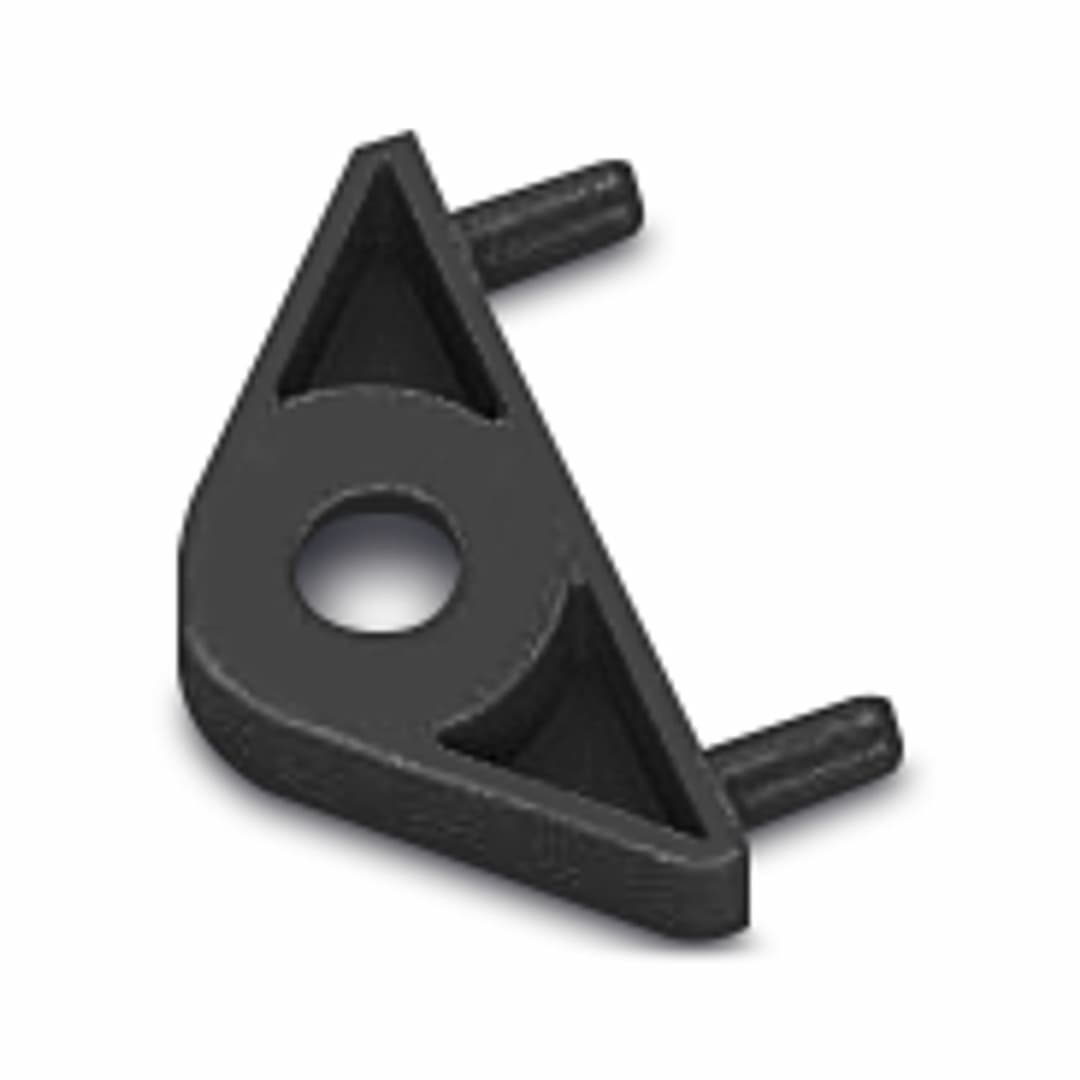

Product Model
UMK-BF BK
Selling Points
- 1Durable mounting flange designed for direct wall installation.
- 2Compatible with UMK-BE series base elements for versatile use.
- 3Made from high-quality polyamide material for long-lasting performance.
- 4Easy to install and secure, ideal for various industrial applications.
- 5Compliant with environmental standards, including China RoHS.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Flange | Housing type | Press-drawn section housings |
Housing series | UMK | Ventilation openings present | no |
Width | 4.6 mm | Height | 26 mm |
Color (Housing) | black (RAL 9005) | Flammability rating according to UL 94 | V2 |
Housing material | Polyamide | Surface characteristics | untreated |
Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) | Ambient temperature (storage/transport) | -40 °C ... 55 °C |
Ambient temperature (assembly) | -5 °C ... 100 °C | Relative humidity (storage/transport) | 80 % |
Specifications may be subject to change without notice
