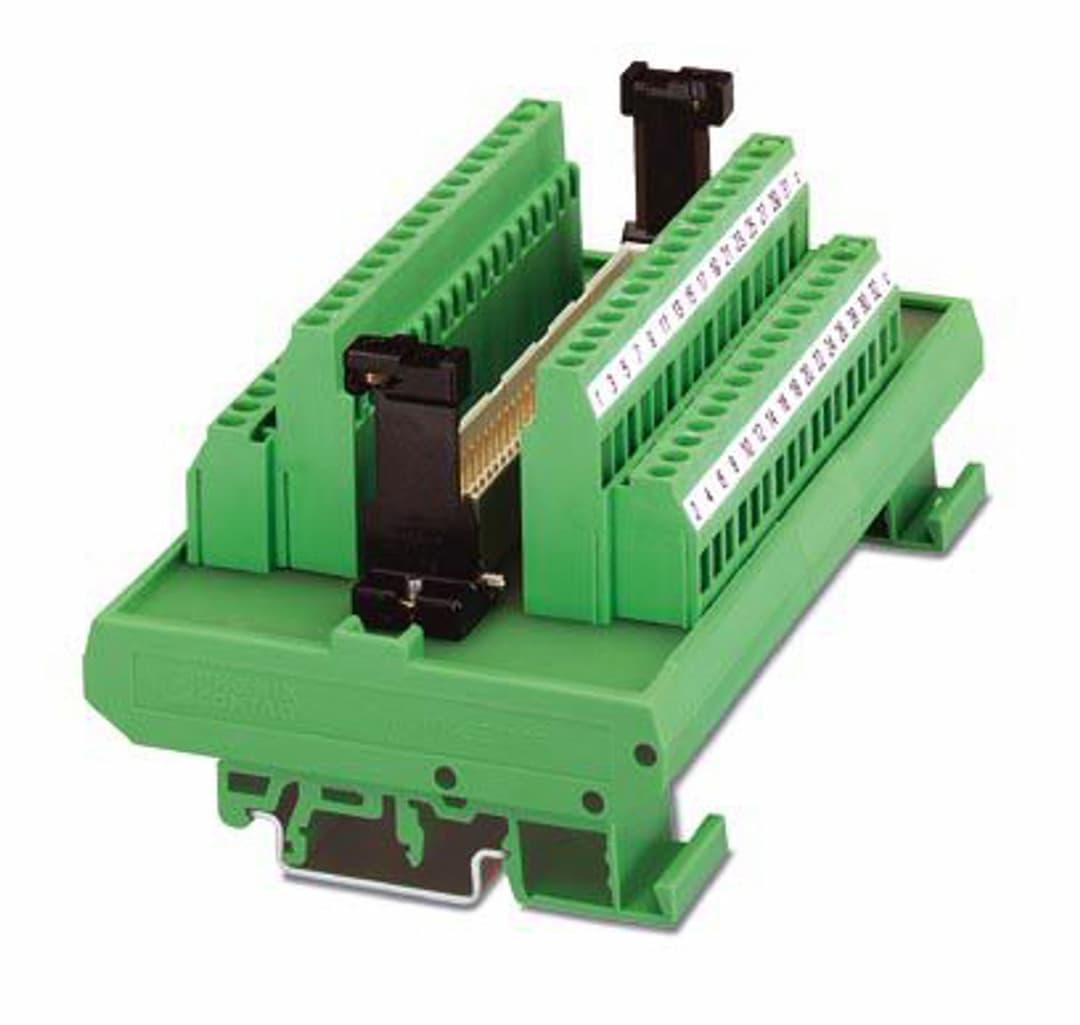

Product Model
UMK- C64F-VS
Selling Points
- 1High-Pin Count Connectivity: Supports up to 64 pins for extensive data transfer.
- 2Robust Design: Equipped with a socket strip and cable housing with screw interlock for secure connections.
- 3Versatile Application: Ideal for various industrial applications requiring high-pin count interfaces.
- 4Durable Performance: Operates within a temperature range of -20°C to +50°C for reliable operation.
- 5Compliant Standards: Meets IEC 603/DIN 41612 connector standards for compatibility and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Number of positions | 64 |
Nominal voltage U | 125 V AC/DC | Max. current carrying capacity per branch | 1 A |
Connection in acc. with standard | IEC / EN | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Connection method | IEC 603/DIN 41612 connection |
Status display present | No | Width | 77 mm |
Height | 135 mm | Depth | 62.5 mm |
Color | green (RAL 6021) | Housing insulation material | Polyamide PA non-reinforced |
Ambient temperature (operation) | -25 °C ... 50 °C | Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Standards/regulations | DIN VDE 0110 | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
