Product Model

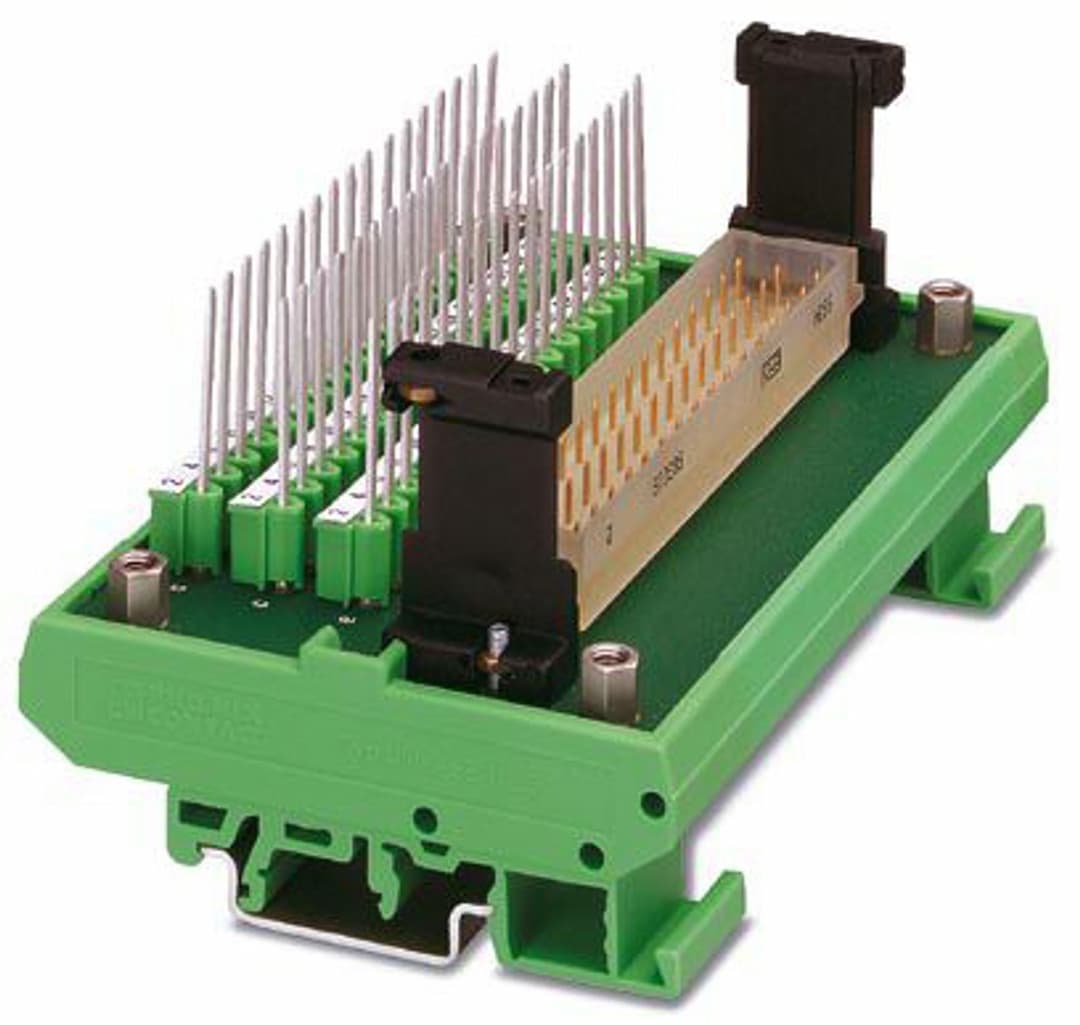

UMK- E48F-VS/TP(1,6X0,8)L
Selling Points
- 148-Position Interface Module: Designed for IEC 603/DIN 41612 connectors, offering 48 mounting positions.
- 2High Current Capacity: Supports up to 4 A per branch, making it ideal for demanding industrial applications.
- 3Durable Construction: Built with polyamide PA non-reinforced housing, ensuring long-lasting performance.
- 4Compact Dimensions: Measuring 123.8 mm in width, 77 mm in height, and 62.5 mm in depth.
- 5Easy Mounting: Compatible with DIN rail mounting, allowing for versatile installation options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Number of positions | 48 |
Nominal voltage U | 60 V AC/DC | Max. current carrying capacity per branch | 4 A |
Connection in acc. with standard | IEC / EN | Connection method | TERMI-POINT® |
Conductor cross section AWG | 28 ... 22 | Connection method | IEC 603/DIN 41612 connection |
Number of positions | 48 | Status display present | No |
Width | 123.8 mm | Height | 77 mm |
Depth | 62.5 mm | Color | green (RAL 6021) |
Housing insulation material | Polyamide PA non-reinforced | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Standards/regulations | IEC 60664
IEC 60664A
DIN VDE 0110 |
Mounting type | DIN rail mounting | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
