Product Model

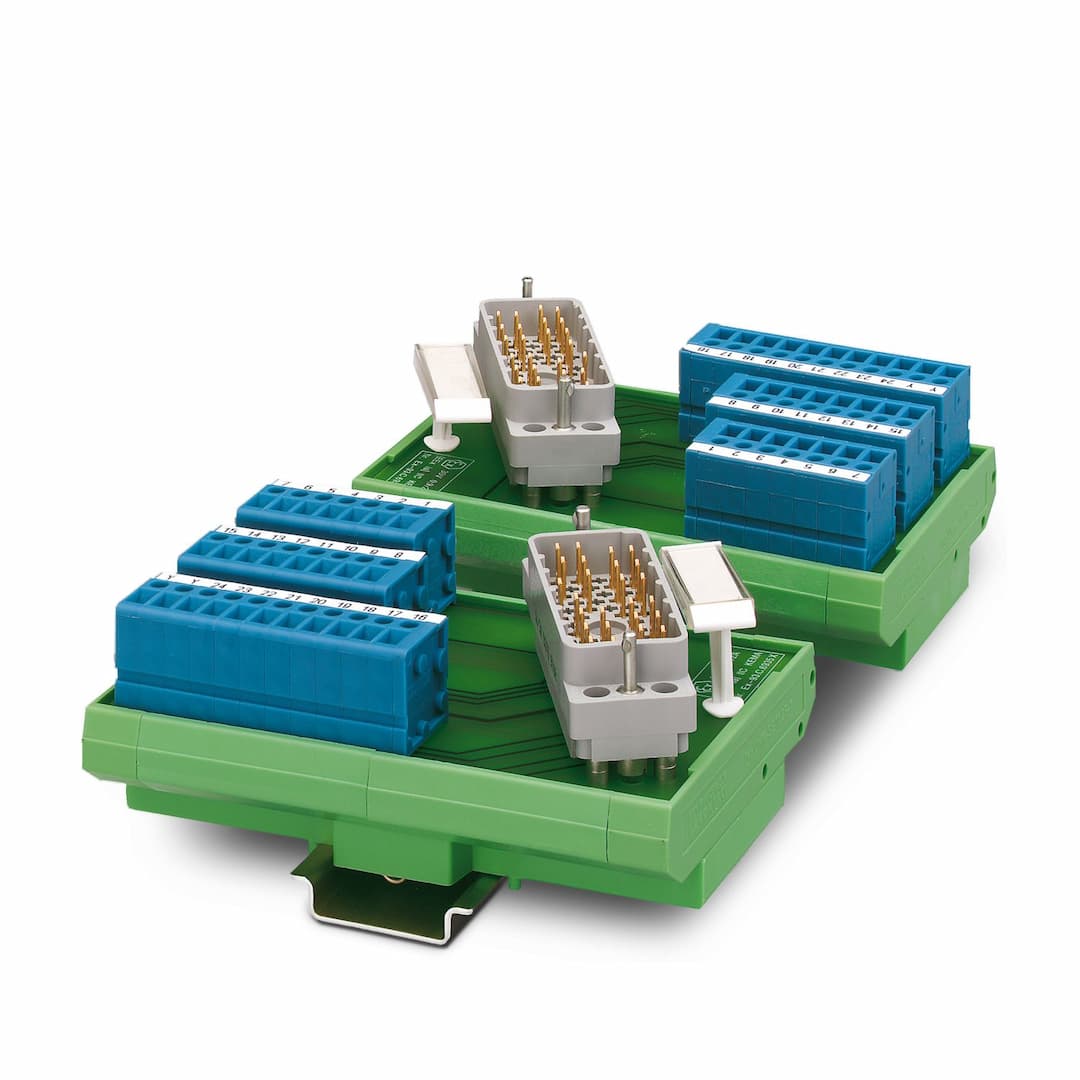

UMK- EC56/25/EEX/FRONT 2,5V/L
Selling Points
- 1Versatile Interface Module: Supports both screw connections and ELCO connectors for flexible integration.
- 2EEx i Protection: Ensures safe operation in hazardous environments with intrinsic safety certification.
- 3High Current Capacity: Handles up to 22.5 A total current across 25 branches.
- 4Durable Construction: Made from high-quality materials with a robust design.
- 5Easy Pin Coding: Allows for easy reconfiguration of pin connections without dismounting the module.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Number of positions | 25 |
Nominal voltage U | 30 V AC/DC | Max. current carrying capacity per branch | 2 A |
Max. total current of all branches | 22.5 A (25 branches, each with 0.9 A) | Connection in acc. with standard | IEC / EN |
Connection method | Screw connection | Stripping length | 9 mm |
Screw thread | M2,5 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
Connection method | ELCO connector | Number of connections | 1 |
Number of positions | 56 | Note | Pin strip type 8016 (EEx i protection), left |
Status display present | No | Width | 77 mm |
Height | 112.5 mm | Depth | 52.5 mm |
Color | green (RAL 6021) | Housing insulation material | Polyamide PA non-reinforced |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | EN 50020
VDE 0170-7
VDE 0171-7
EN 50020/A2
DIN VDE 0170-7/A2
DIN VDE 0171-7/A2 | Mounting position | any |
Assembly note | The coding pins of the ELCO plugs are coded by default in position 6. It is possible to change the coding of the pins without dismounting the module housing. | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
