Product Model

UMK- EC56/25/EX -FRONT 2,5V/L

Manufacturer

Phoenix Contact

Category

Unclassified

Product ID

21433

In Stock
Last updated: 2025/4/19
View Specifications

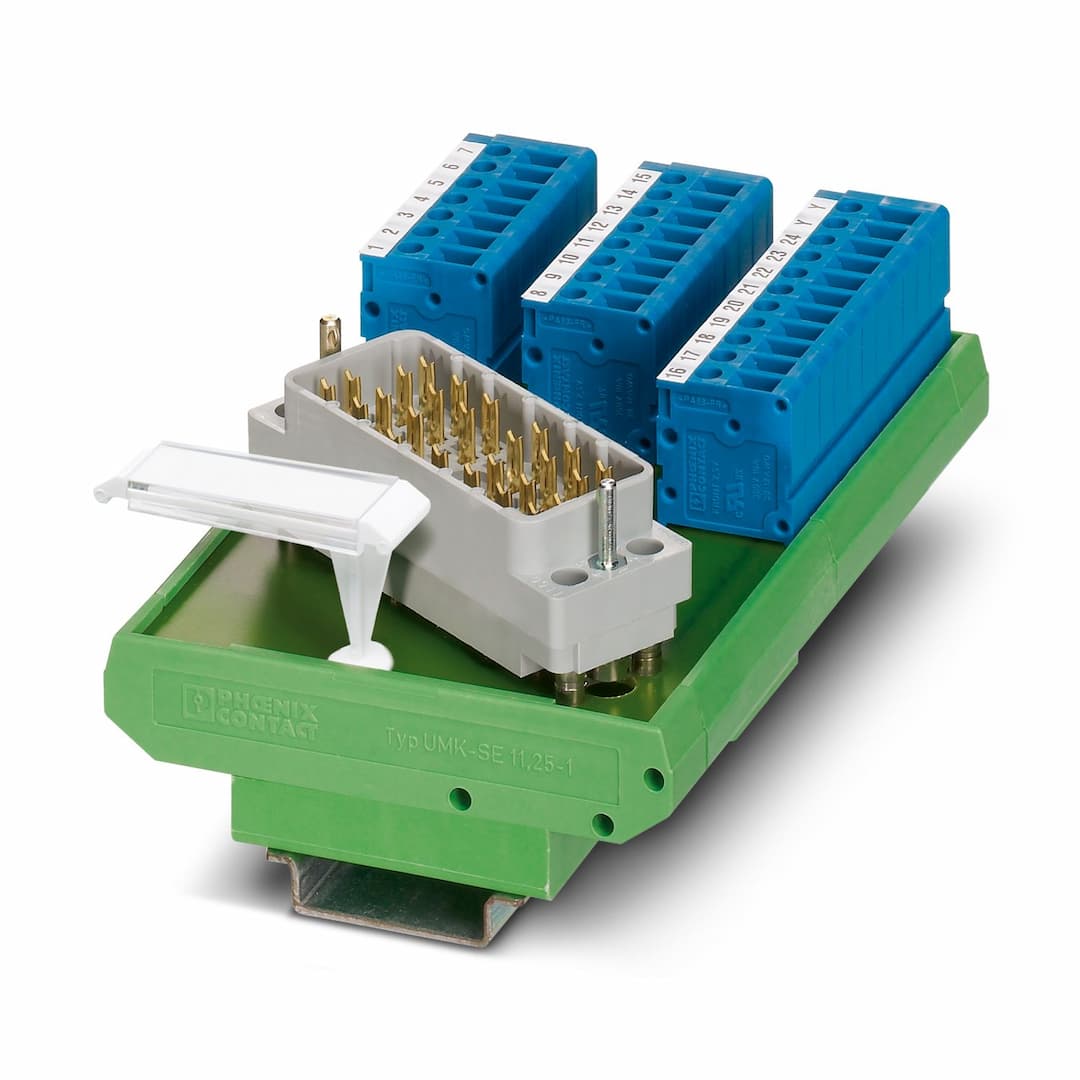

Phoenix Contact UMK- EC56/25/EX -FRONT 2,5V/L

Selling Points

  • 1High-quality components ensure durability and reliability.
  • 2Advanced design for optimal performance in industrial applications.
  • 32.5V/L voltage rating for precise control and efficiency.
  • 4Front-end module with easy installation and maintenance.
  • 5Compatible with a wide range of industrial systems and equipment.
Product Details
UMK- EC56/25/EX -FRONT 2,5V/L
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Interface module
Number of positions
25
Nominal voltage U
max. 30 V DC (Max. voltage between two intrinsically safe circuits: 60 V DC)
Max. current carrying capacity per branch
500 mA
Connection in acc. with standard
IEC / EN
Connection method
Screw connection
Stripping length
9 mm
Screw thread
M2,5
Number of positions
25
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 14
Connection method
ELCO connector
Coding
1-1
Number of connections
1
Number of positions
25
Note
Pin strip type 8016 (EEx i protection), left
Status display present
No
Width
77 mm
Height
112.5 mm
Depth
52.5 mm
Color
green (RAL 6021)
Ambient temperature (operation)
-20 °C ... 50 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Standards/regulations
DIN EN 60079-11
Mounting type
DIN rail mounting
Assembly note
To separate intrinsically safe and non-intrinsically safe circuits, a gap of least 50 mm must be created between the connection points, e.g., by means of partition plates or spacing.
Mounting position
any
Assembly note
The coding pins of the ELCO plugs are coded by default in position 6. It is possible to change the coding of the pins without dismounting the module housing.
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Specifications may be subject to change without notice
