Product Model

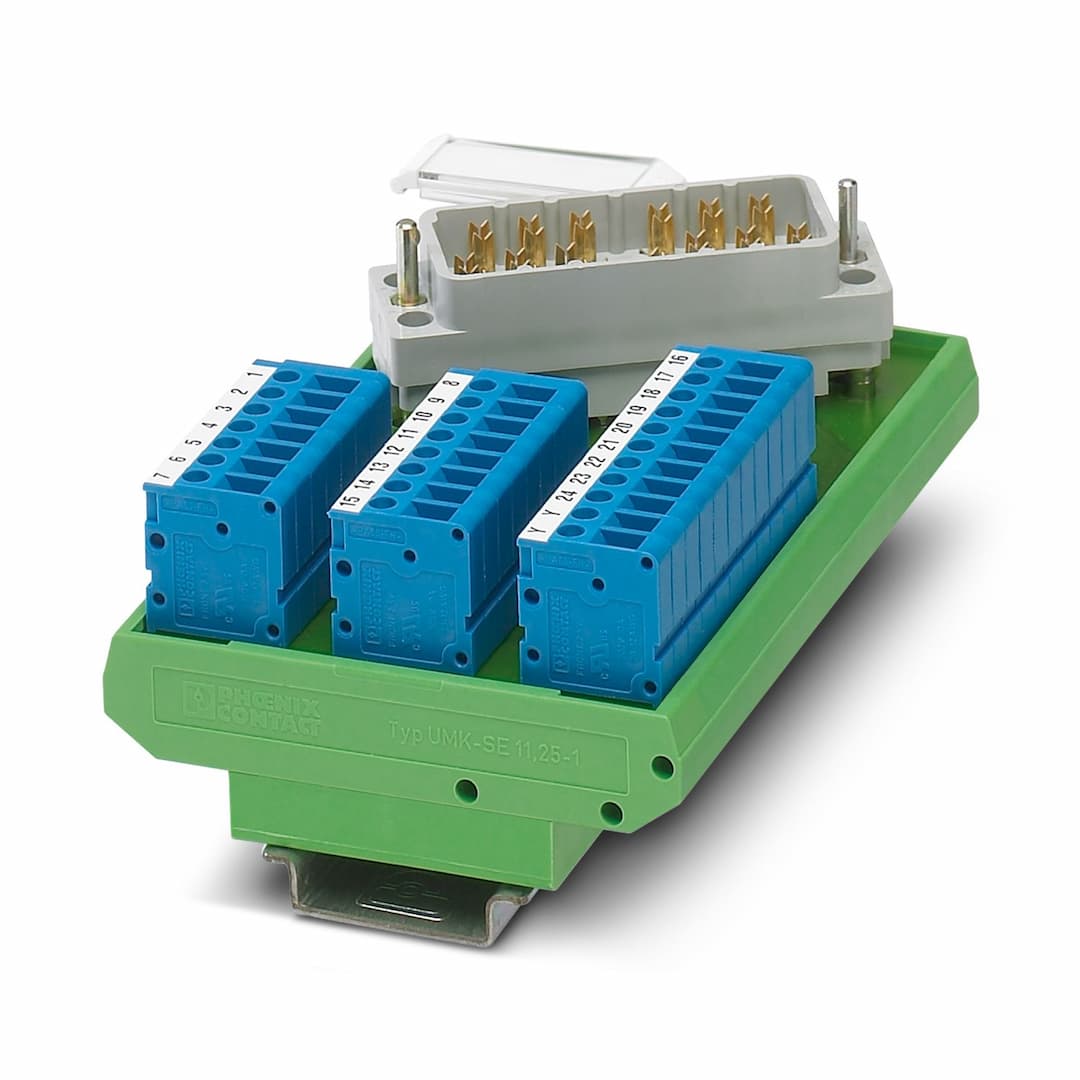

UMK- EC56/25/EX -FRONT 2,5V/R
Selling Points
- 1High-quality electrical component designed for industrial use.
- 2Robust design ensures long-lasting performance in demanding environments.
- 3Durable materials provide reliability and resistance to wear and tear.
- 4Precision engineering for precise voltage regulation (2.5V).
- 5Compatible with a wide range of industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Number of positions | 25 |
Nominal voltage U | max. 30 V DC (Max. voltage between two intrinsically safe circuits: 60 V DC) | Max. current carrying capacity per branch | 500 mA |
Connection in acc. with standard | IEC / EN | Connection method | Screw connection |
Stripping length | 9 mm | Screw thread | M2,5 |
Number of positions | 25 | Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 14 |
Connection method | ELCO connector | Coding | 1-1 |
Number of connections | 1 | Number of positions | 25 |
Note | Pin strip type 8016 (EEx i protection), right | Status display present | No |
Width | 77 mm | Height | 112.5 mm |
Depth | 52.5 mm | Color | green (RAL 6021) |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | DIN EN 60079-11 | Mounting type | DIN rail mounting |
Assembly note | To separate intrinsically safe and non-intrinsically safe circuits, a gap of least 50 mm must be created between the connection points, e.g., by means of partition plates or spacing. | Mounting position | any |
Assembly note | The coding pins of the ELCO plugs are coded by default in position 6. It is possible to change the coding of the pins without dismounting the module housing. | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
