Product Model

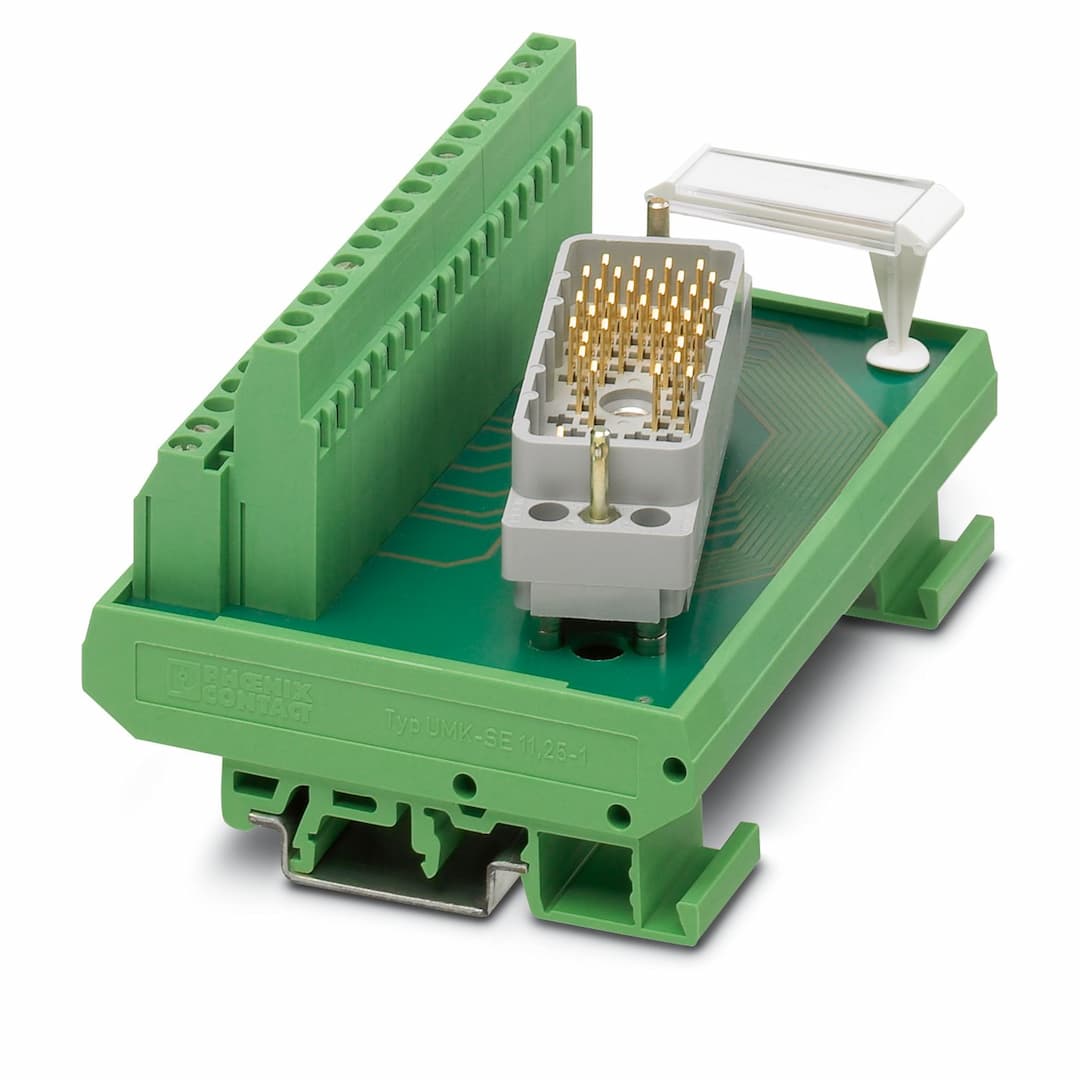

UMK- EC56/32-XOL
Selling Points
- 1The UMK- EC56/32-XOL measures 101.5 mm in width, 77 mm in height, and 58.5 mm in depth, making it ideal for space-constrained environments.
- 2Equipped with a 32-position ELCO connector (Pin strip type 8016, left) and screw connection, offering flexibility in mounting options.
- 3Designed to operate within a wide ambient temperature range of -20 °C to 50 °C and storage/transport up to 70 °C.
- 4Compliant with functional insulation standards, ensuring reliable operation in various industrial settings.
- 5Meets DIN EN 50178 and IEC 60664 standards, with EAC Ex approvals for safe use in hazardous environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Number of positions | 32 |
Operating mode | 100% operating factor | Insulation | Functional insulation |
Overvoltage category | II | Pollution degree | 2 |
Max. permissible operating voltage | 25 V AC
60 V DC | Max. permissible current | 2 A (per path) |
Max. permissible total current | 64 A | Rated insulation voltage | 85 V |
Rated surge voltage | 0.8 kV | Connection in acc. with standard | IEC / EN |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Connection method | ELCO connector | Coding | 1-1 |
Number of connections | 1 | Number of positions | 32 |
Note | Pin strip type 8016, left | Status display present | No |
Width | 101.5 mm | Height | 77 mm |
Depth | 58.5 mm | Color | green (RAL 6021) |
Housing insulation material | Polyamide PA non-reinforced | Degree of protection | IP00 |
Degree of protection (Installation location) | ≥ IP54 (Installation location) | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Altitude | ≤ 2000 m |
Standards/regulations | DIN EN 50178 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Notes on operation | No additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 60 V DC). | Notes on operation | At least one functional insulation against adjacent modules is complied with (in the support rail direction). If the application has stricter requirements for the insulation (basic insulation or reinforced insulation), they must be realized by applying suitable measures (e. g. partition plates). |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
