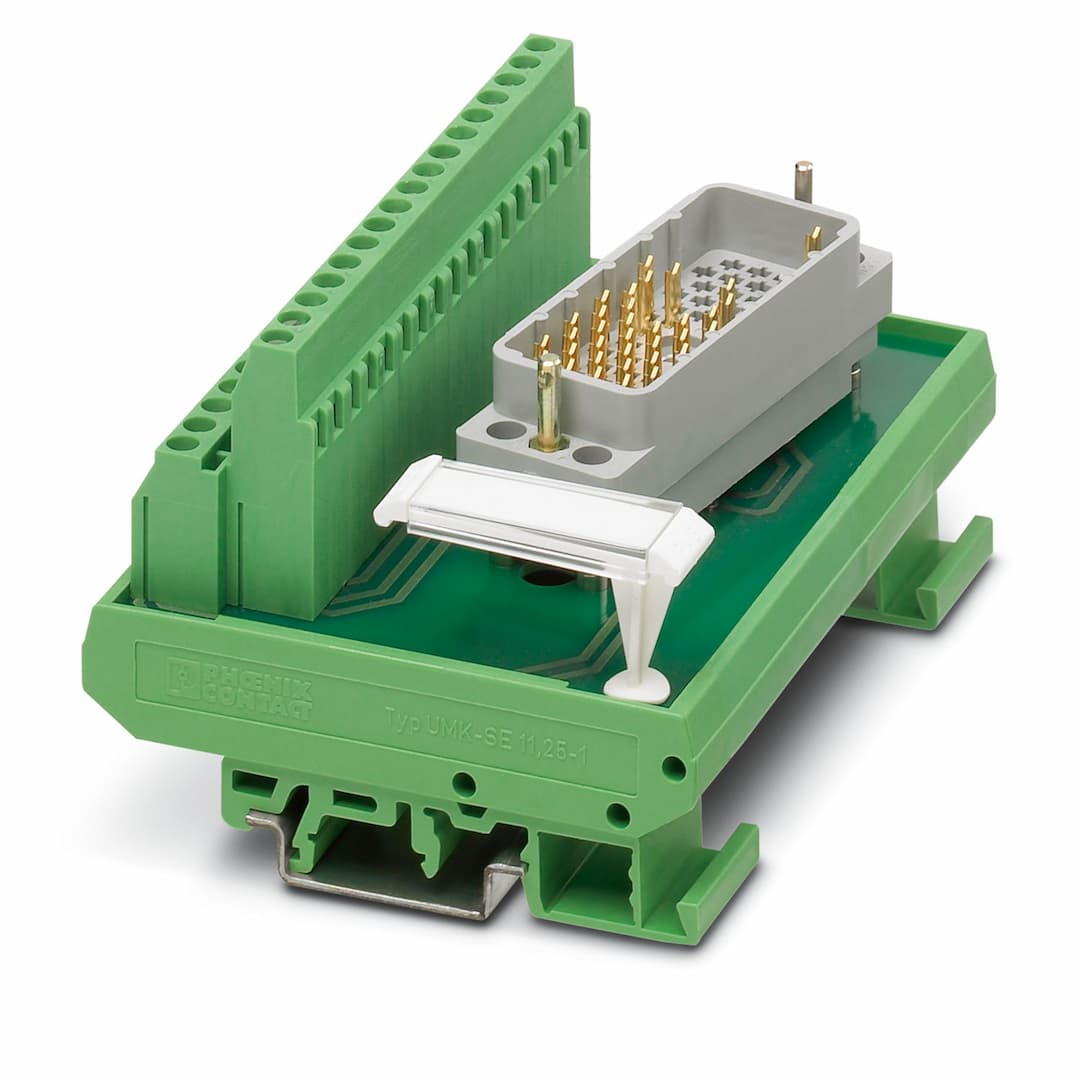

Product Model
UMK- EC56/32-XUL
Selling Points
- 1High-performance interface relay module with 56-pin ELCO and screw terminal connections.
- 2Compatible with DIN rail mounting for easy installation in industrial settings.
- 3Operating temperature range of -20°C to +40°C ensures reliability in various environments.
- 4Switching current of 1 A supports a wide range of industrial control applications.
- 5Durable design with dimensions of 101.3 x 58.5 x 77mm for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Number of positions | 32 |
Operating mode | 100% operating factor | Insulation | Functional insulation |
Overvoltage category | II | Pollution degree | 2 |
Max. permissible operating voltage | 25 V AC
60 V DC | Max. permissible current | 2 A (per path) |
Max. permissible total current | 64 A | Rated insulation voltage | 85 V |
Rated surge voltage | 0.8 kV | Connection in acc. with standard | IEC / EN |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Connection method | ELCO connector | Coding | 1-1 |
Number of connections | 1 | Number of positions | 32 |
Note | Pin strip type 8016, left | Status display present | No |
Width | 101.5 mm | Height | 77 mm |
Depth | 58.5 mm | Color | green (RAL 6021) |
Housing insulation material | Polyamide PA non-reinforced | Degree of protection | IP00 |
Degree of protection (Installation location) | ≥ IP54 (Installation location) | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Altitude | ≤ 2000 m |
Standards/regulations | DIN EN 50178 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Notes on operation | No additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 60 V DC). | Notes on operation | At least one functional insulation against adjacent modules is complied with (in the support rail direction). If the application has stricter requirements for the insulation (basic insulation or reinforced insulation), they must be realized by applying suitable measures (e. g. partition plates). |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
