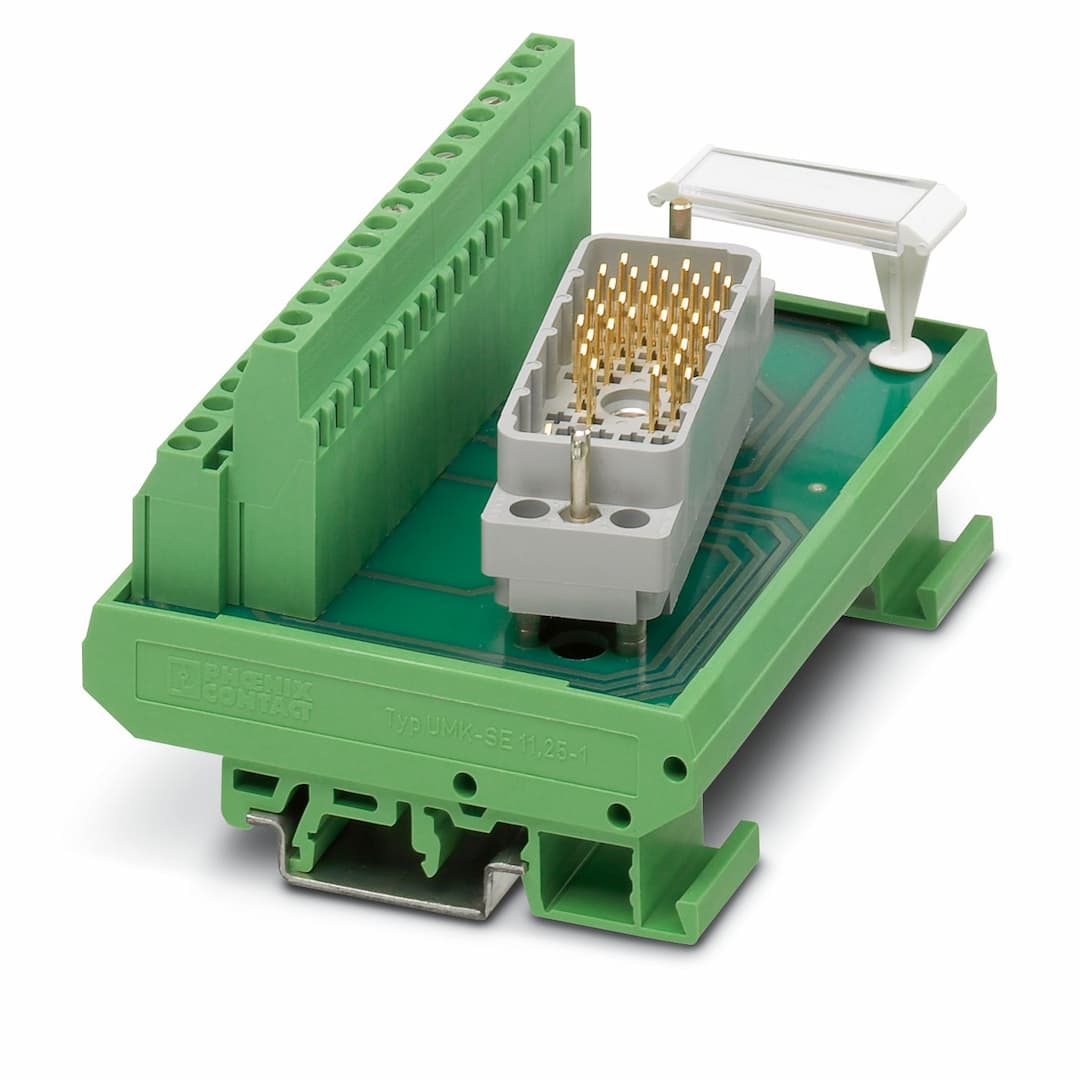

Product Model
UMK- EC56/32-XUR
Selling Points
- 1101.3 mm width, 77 mm height, and 58.5 mm depth for easy integration.
- 2Rated for ambient temperatures from -20°C to 40°C and storage/transport up to 70°C.
- 3Supports ELCO connector with 56 positions and screw connection for solid conductors up to 4 mm².
- 4Insulation voltage of 85V and surge voltage of 0.8 kV for functional insulation.
- 5Meets IEC 60664, DIN EN 50178, and IEC 62103 standards for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Number of positions | 32 |
Operating mode | 100% operating factor | Insulation | Functional insulation |
Overvoltage category | II | Pollution degree | 2 |
Max. permissible operating voltage | 25 V AC
60 V DC | Max. permissible current | 2 A (per path) |
Max. permissible total current | 64 A | Rated insulation voltage | 85 V |
Rated surge voltage | 0.8 kV | Connection in acc. with standard | IEC / EN |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Connection method | ELCO connector | Coding | 1-1 |
Number of connections | 1 | Number of positions | 32 |
Note | Pin strip, Type 8016, right | Status display present | No |
Width | 101.5 mm | Height | 77 mm |
Depth | 58.5 mm | Color | green (RAL 6021) |
Housing insulation material | Polyamide PA non-reinforced | Degree of protection | IP00 |
Degree of protection (Installation location) | ≥ IP54 (Installation location) | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Altitude | ≤ 2000 m |
Standards/regulations | DIN EN 50178 | Mounting type | DIN rail mounting |
Assembly note | in rows with zero spacing | Mounting position | any |
Notes on operation | No additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 60 V DC). | Notes on operation | At least one functional insulation against adjacent modules is complied with (in the support rail direction). If the application has stricter requirements for the insulation (basic insulation or reinforced insulation), they must be realized by applying suitable measures (e. g. partition plates). |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
