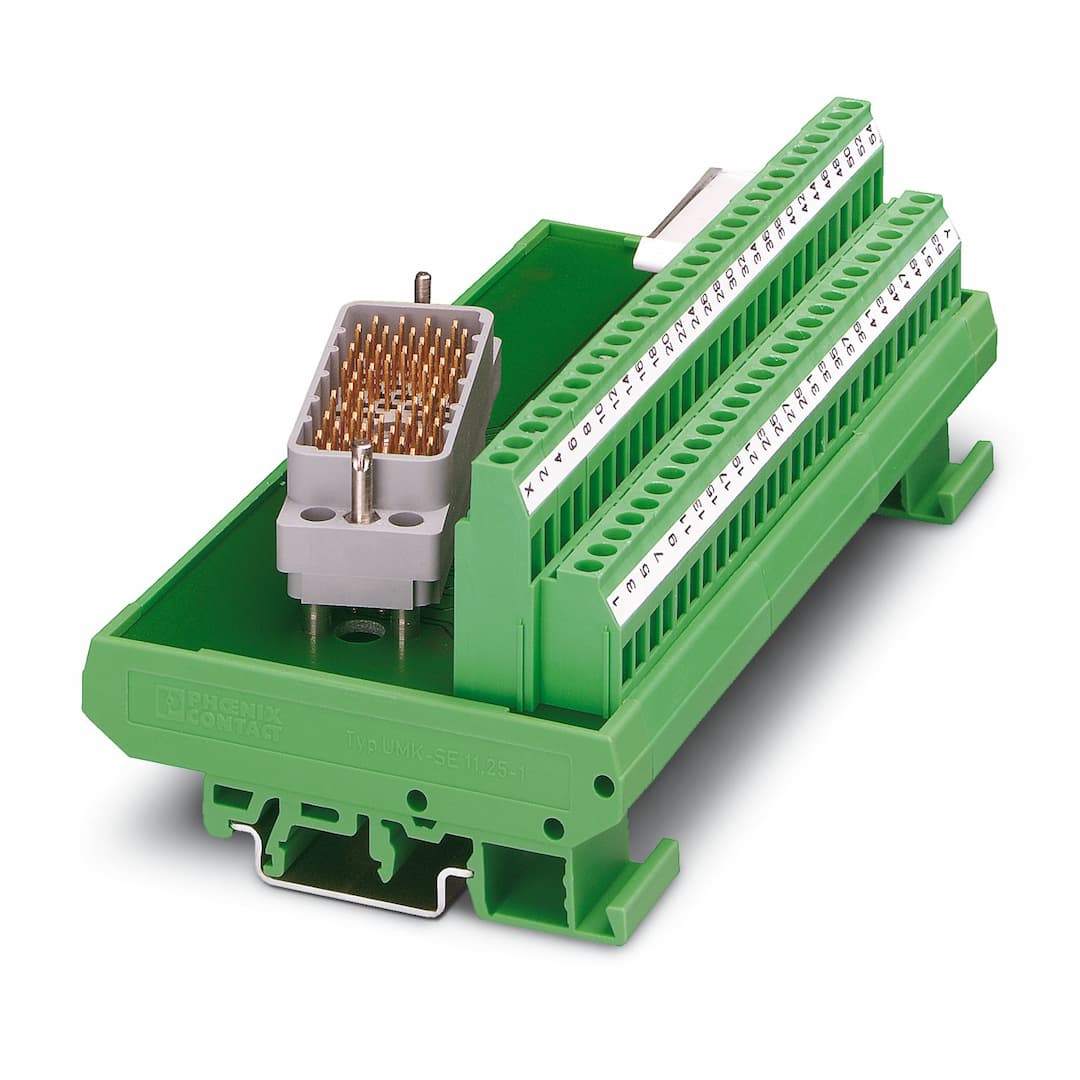

Phoenix Contact UMK- EC56/56-XUR

Selling Points

  • 156-Position Interface Module: Connect up to 56 signals with this versatile interface module.
  • 2Functional Insulation: Ensures reliable operation with air clearances and creepage distances.
  • 3Compliance with DIN EN 50178: Meets stringent standards for electrical safety and insulation.
  • 4Versatile Mounting Options: Compatible with various mounting positions including rows with zero spacing.
  • 5High Operating Voltage: Supports up to 50 V AC/DC with a maximum permissible current of 2 A per path.
Product Details
UMK- EC56/56-XUR
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Interface module
Number of positions
56
Operating mode
100% operating factor
Article revision
05
Insulation
Functional insulation
Overvoltage category
II
Pollution degree
2
Max. permissible operating voltage
50 V AC/DC
Max. permissible current
2 A (per path)
Max. permissible total current
28 A
Rated insulation voltage
63 V
Rated surge voltage
0.6 kV
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Conductor cross section rigid
0.2 mm² ... 4 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Connection method
ELCO connector
Coding
1-1
Number of connections
1
Number of positions
56
Note
Pin strip, Type 8016, right
Status display present
No
Width
157.25 mm
Height
77 mm
Depth
56.87 mm
Color
green (RAL 6021)
Housing insulation material
Polyamide PA non-reinforced
Degree of protection
IP00
Degree of protection (Installation location)
≥ IP54 (Installation location)
Ambient temperature (operation)
-20 °C ... 50 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Altitude
≤ 2000 m
Standards/regulations
DIN EN 50178
Mounting type
DIN rail mounting
Assembly note
in rows with zero spacing
Mounting position
any
Notes on operation
The system installer is to ensure the touch protection of the product (at voltages > 25 V AC). The built-in device is without protection against direct contact.
Notes on operation
No additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 50 V DC).
Notes on operation
Against adjacent modules in the support rail direction at least one functional insulation on the output-side is complied with. If the application has higher requirements on the insulation (basic insulation or reinforced insulation), then these must be realized through suitable measures (e. g. partition plates).
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
