Product Model

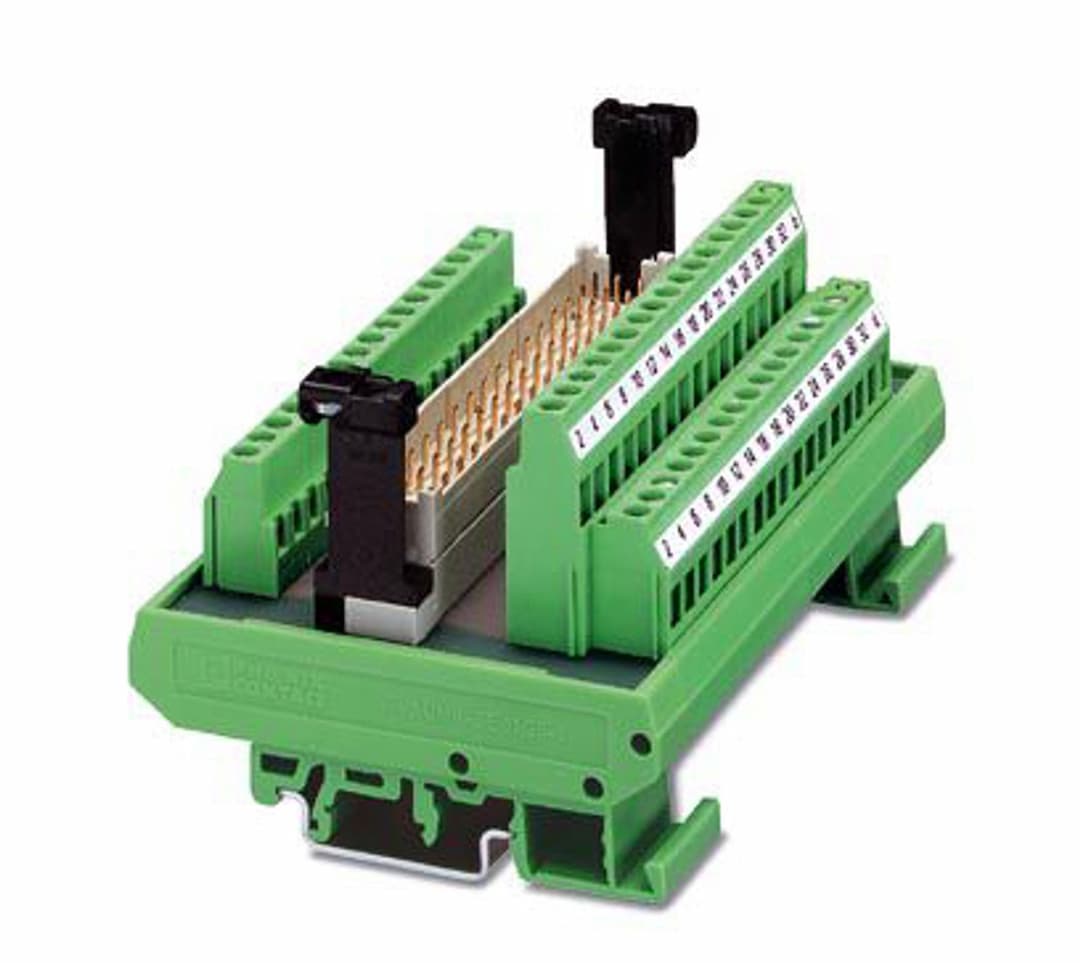

UMK- F48M-VS
Selling Points
- 1High-quality 48-position IEC 603/DIN 41612 connector for precise connections.
- 2Robust construction with durable materials for long-lasting performance.
- 3Versatile Varioface module design for easy integration into various systems.
- 4Compatible with a wide range of industrial applications, including PLC systems.
- 5Reliable snap-on/screw-on cable housing for secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Number of positions | 48 |
Nominal voltage U | 250 V | Max. current carrying capacity per branch | 4 A |
Connection in acc. with standard | IEC / EN | Connection method | Screw connection |
Stripping length | 8 mm | Screw thread | M3 |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Connection method | pluggable |
Status display present | No | Width | 112.5 mm |
Height | 77 mm | Depth | 62.5 mm |
Color | green (RAL 6021) | Housing insulation material | Polyamide PA non-reinforced |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | DIN VDE 0110 | Mounting position | any |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
