Product Model

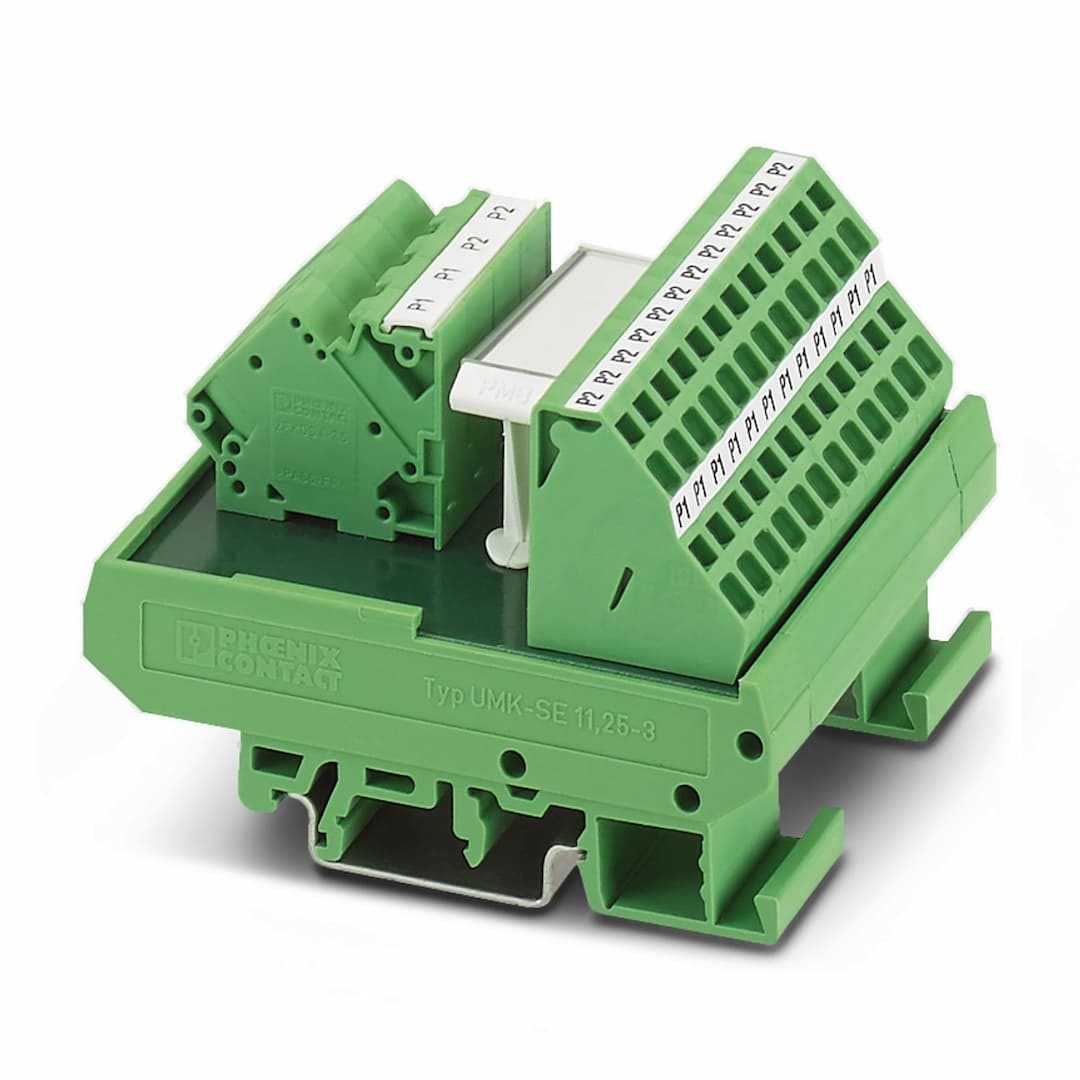

UMK- PVB 2/24/ZFKDS
Selling Points
- 1Efficient Potential Distribution: Distributes power efficiently with two equipotential busbars (P1, P2).
- 2Robust Connections: Utilizes spring-cage connections for secure and reliable connections.
- 3Versatile Mounting Options: Compatible with NS 32 and NS 35/7.5 mounting systems.
- 4High Current Capacity: Supports a maximum current carrying capacity of 32 A per potential.
- 5Compliant with Standards: Meets IEC 60664 and DIN EN 50178 standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | The necessary requirements for insulation (basic insulation or reinforced insulation) from adjacent modules (in DIN-rail direction) must be realized by applying suitable measures (e. g., partition plates). | Notes on operation | Ensure that the supply voltage of the device has a common reference potential. |
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. | Product type | Potential distributor |
Product family | VARIOFACE | Article revision | 07 |
Insulation | Functional insulation | Pollution degree | 2 |
Nominal voltage U | 250 V AC/DC | Max. current carrying capacity per branch | 17 A |
Max. total current of all branches | 32 A (per potential) | Rated insulation voltage | 260 V |
Rated surge voltage | 2.3 kV | Connection method | Spring-cage connection |
Stripping length | 8 mm | Number of connections | 2 |
Conductor cross section rigid | 0.2 mm² ... 6 mm² | Conductor cross section flexible | 0.2 mm² ... 4 mm² |
Conductor cross section AWG | 24 ... 10 | Connection method | Spring-cage connection |
Stripping length | 8 mm | Number of connections | 24 |
Conductor cross section rigid | 0.2 mm² ... 4 mm² | Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 | Width | 67.5 mm |
Height | 77 mm | Depth | 51.5 mm |
Color | green (RAL 6021) | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Standards/regulations | EN IEC 61010-2-201 | Mounting type | DIN rail mounting |
Mounting position | any |
Specifications may be subject to change without notice
