Product Model

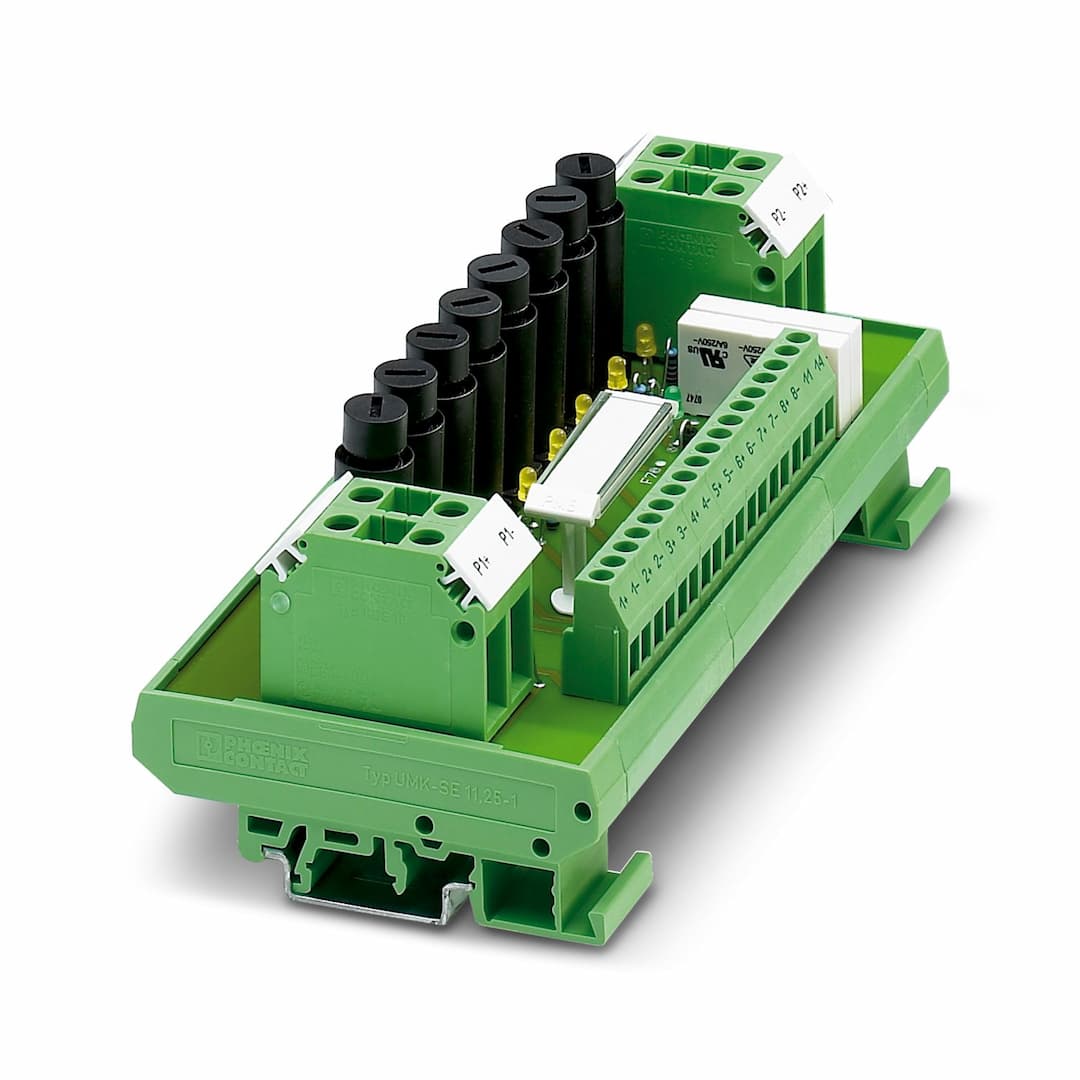

UMK-PVB 2/ 8/50A/8XSI
Selling Points
- 18-channel potential distribution module for efficient signal management.
- 26.3A fuses ensure reliable current handling in various applications.
- 3Redundant 24V voltage supply monitoring with alert messages in case of failure.
- 4High-quality construction from a renowned manufacturer, Phoenix Contact.
- 5Compliant with RoHS and phthalates regulations, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. | Product type | Potential distributor |
Product family | VARIOFACE | Insulation | Basic insulation |
Overvoltage category | II | Pollution degree | 2 |
Nominal voltage U | 24 V DC | Max. current carrying capacity per branch | 6.3 A |
Rated insulation voltage | 50 V | Rated surge voltage | 0.5 kV |
Connection method | Screw connection | Stripping length | 12 mm |
Number of connections | 2 | Conductor cross section rigid | 0.5 mm² ... 16 mm² |
Conductor cross section flexible | 0.5 mm² ... 10 mm² | Conductor cross section AWG | 20 ... 6 |
Connection method | Screw connection | Stripping length | 7 mm |
Number of connections | 8 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Width | 160 mm | Height | 74 mm |
Depth | 60 mm | Color | green (RAL 6021) |
Ambient temperature (operation) | -20 °C ... 50 °C | Standards/regulations | EN 50178 |
Mounting type | DIN rail mounting | Mounting position | any |
Specifications may be subject to change without notice
