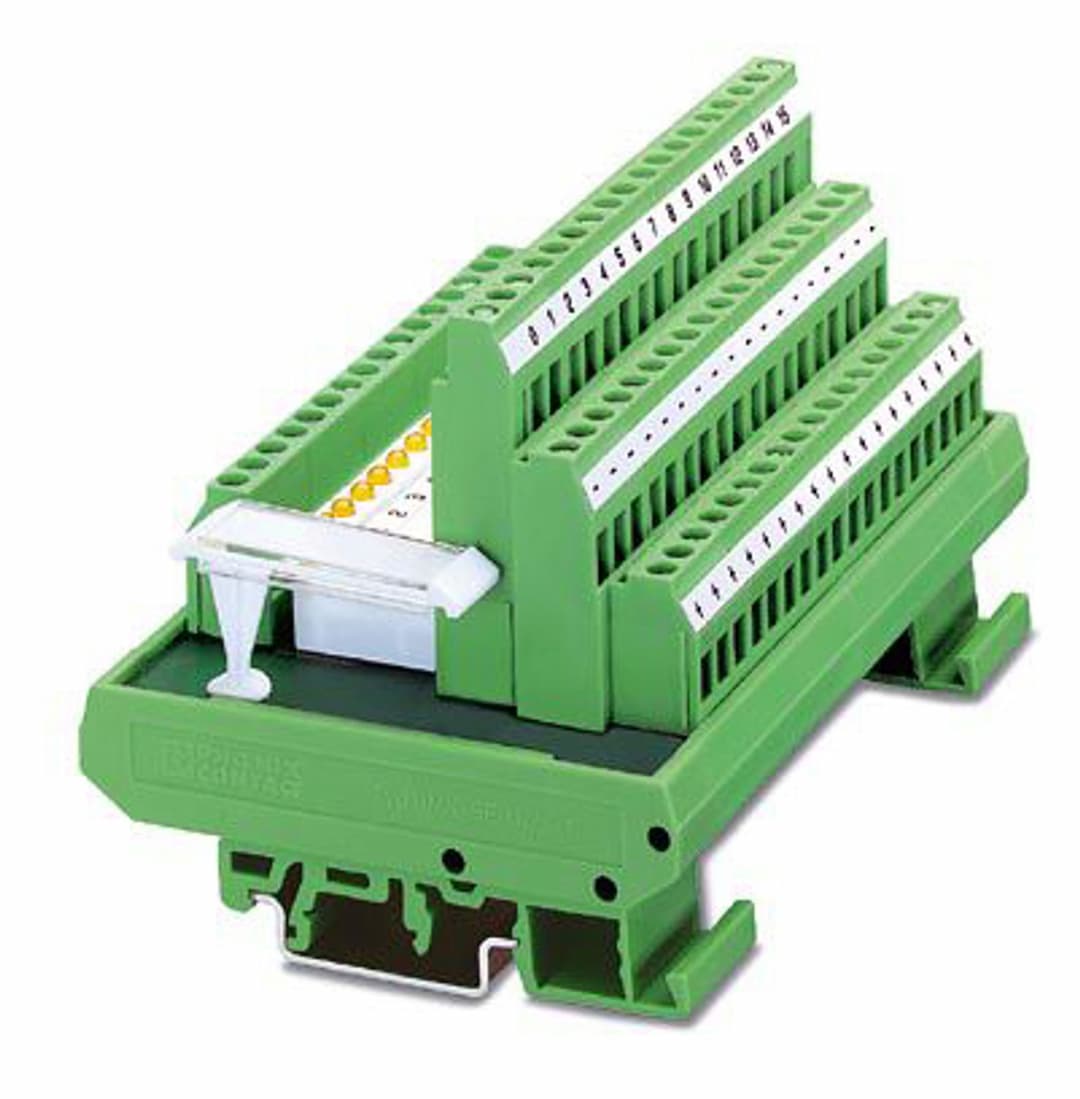

Product Model
UMKS- 8 IM
Selling Points
- 1Designed for mounting on NS 35/7.5 or NS 32, perfect for connecting 8 proximity switches.
- 2Features a diagnostic and status indicator for easy monitoring.
- 3Meets REACh SVHC and China RoHS standards, ensuring environmental safety.
- 4Compatible with various proximity switches, enhancing flexibility in industrial settings.
- 5Includes detailed technical data and approvals, including EAC Ex approvals for global use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface module | Product family | VARIOFACE |
Operating mode | 100% operating factor | Insulation | Functional insulation |
Overvoltage category | II | Pollution degree | 2 |
Max. permissible operating voltage | 250 V AC/DC | Max. permissible current | 1 A (per path) |
Rated insulation voltage | 300 V | Rated surge voltage | 2.5 kV |
Connection method | Screw connection | Stripping length | 8 mm |
Screw thread | M3 | Conductor cross section rigid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² | Conductor cross section AWG | 24 ... 12 |
Status display present | No | Width | 67.5 mm |
Height | 77 mm | Depth | 72 mm |
Color | green (RAL 6021) | Housing insulation material | Polyamide PA non-reinforced |
Degree of protection | IP20 | Degree of protection (Installation location) | ≥ IP54 (Installation location) |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Altitude | ≤ 2000 m | Standards/regulations | EN 60664-1 |
Mounting type | DIN rail mounting | Assembly note | in rows with zero spacing |
Mounting position | any | Notes on operation | The necessary requirements for insulation (basic insulation or reinforced insulation) from adjacent modules (in DIN-rail direction) must be realized by applying suitable measures (e. g., partition plates). |
Notes on operation | Ensure that the supply voltage of the device has a common reference potential. | Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
Specifications may be subject to change without notice
