Product Model

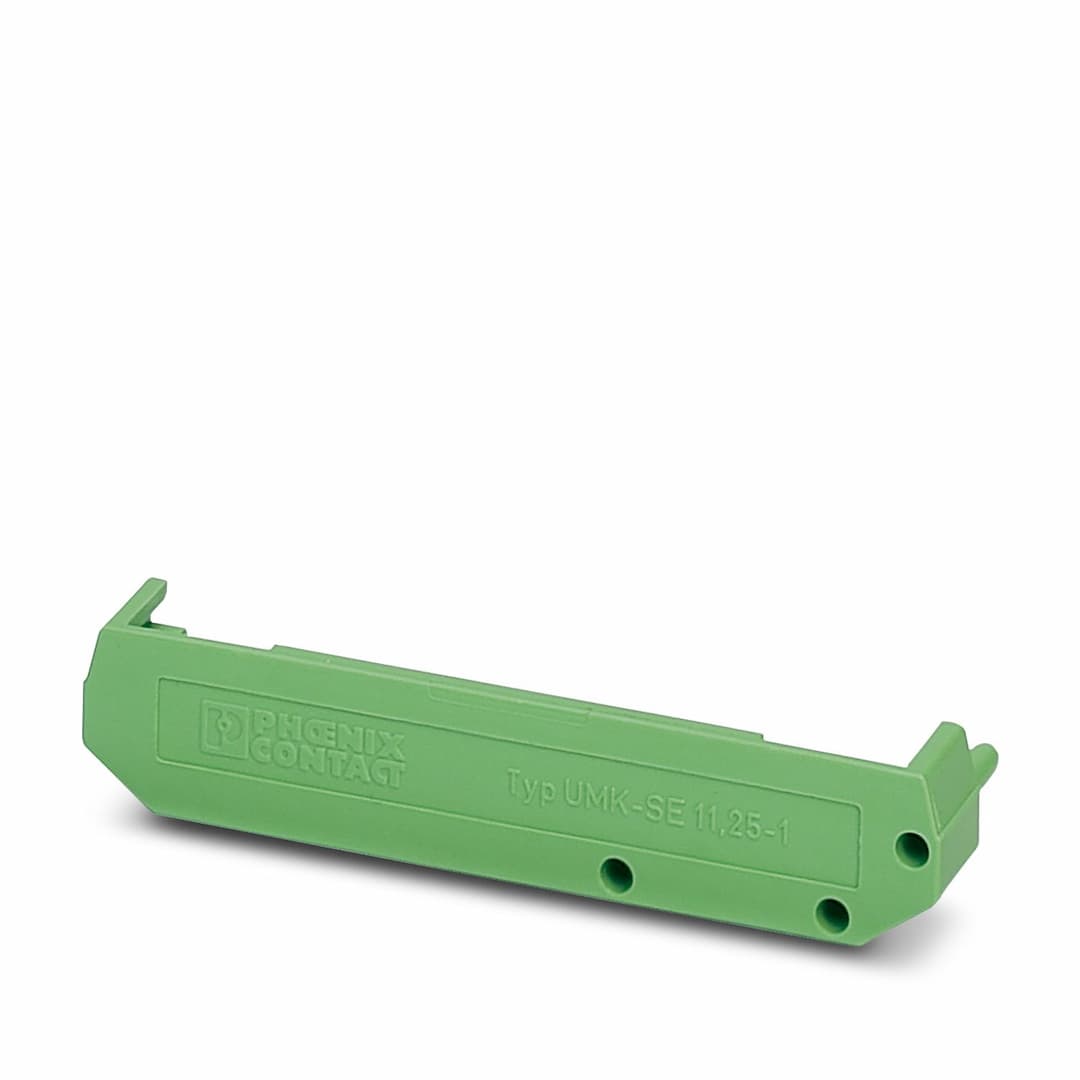

UMK-SE 11,25-1 O.LOGO
Selling Points
- 1Efficient Mounting Solution: Designed for easy assembly and disassembly, perfect for professionals and DIY enthusiasts.
- 2Versatile Design: Lateral element with press-drawn section housings, adaptable to various electronic modules.
- 3Durable Construction: Made from high-quality polyamide, ensuring reliability and longevity.
- 4Compact Dimensions: Length of 11.25 mm and external profile width of 77 mm, ideal for DIN rail mounting.
- 5Green Housing: Distinctive green color for easy identification and organization in control cabinets or terminal boxes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Panel mounting base side part | Housing type | Press-drawn section housings |
Housing series | UMK | Product family | UMK SE |
Type | Lateral element | Ventilation openings present | no |
Length | 11.25 mm | Profile width (external) | 77 mm |
Profile width (internal) | 72.2 mm | Color (Housing) | green (RAL 6021) |
Flammability rating according to UL 94 | V2 | Housing material | Polyamide |
Surface characteristics | untreated | Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
Specifications may be subject to change without notice
