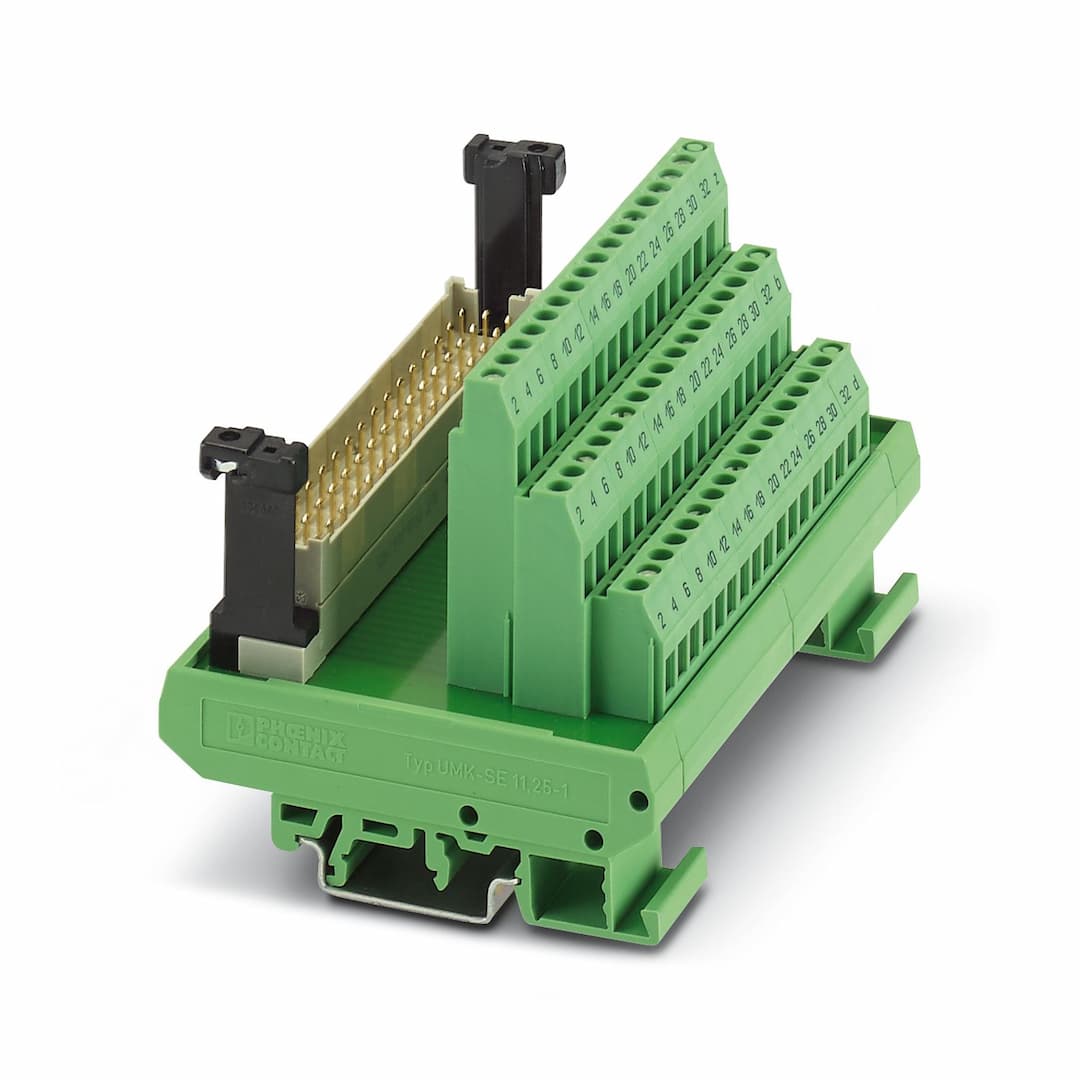

Phoenix Contact UMKS- F48M-VS Interface Module

Selling Points

148-Position Connector: Supports up to 48 positions for various components.
2250 V AC Nominal Voltage: Operates at a nominal voltage of 250 V AC.
34 A Max Current Capacity: Handles a maximum current of 4 A per branch.
4Green Color (RAL 6021): Features a green color (RAL 6021) for easy identification.
5WEEE/RoHS Compliant: Meets environmental standards for waste electrical and electronic equipment (WEEE) and Restriction of Hazardous Substances (RoHS).

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Product type	Interface module	Product family	VARIOFACE
Number of positions	48	Article revision	09
Overvoltage category	II	Pollution degree	2
Nominal voltage U	250 V AC/DC	Max. current carrying capacity per branch	4 A
Rated insulation voltage	260 V	Rated surge voltage	2.3 kV (Functional insulation)
Connection in acc. with standard	IEC / EN	Connection method	Screw connection
Stripping length	8 mm	Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 4 mm²	Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12	Connection method	IEC 603/DIN 41612 connection
Number of connections	1	Number of positions	48
Status display present	No	Width	112.3 mm
Height	77 mm	Depth	70.87 mm
Color	green (RAL 6021)	Housing insulation material	Polyamide PA non-reinforced
Degree of protection	IP20	Ambient temperature (operation)	-20 °C ... 45 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C	Standards/regulations	DIN EN 50178 IEC 60664
Mounting type	DIN rail mounting	Mounting position	any
Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Specifications may be subject to change without notice
