Selling Points
- 1Supports up to 101 A nominal current and 76 A maximum load current.
- 2Meets overvoltage category III and insulating material group I for reliable performance.
- 3Tested to DIN EN 50155 standards for oscillation, broadband noise, and shock tests.
- 4Features screw connection method and mounting on DIN rail (top hat rail) 35 mm.
- 5Compliant with DIN EN 45545-2 for fire protection in rail vehicles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

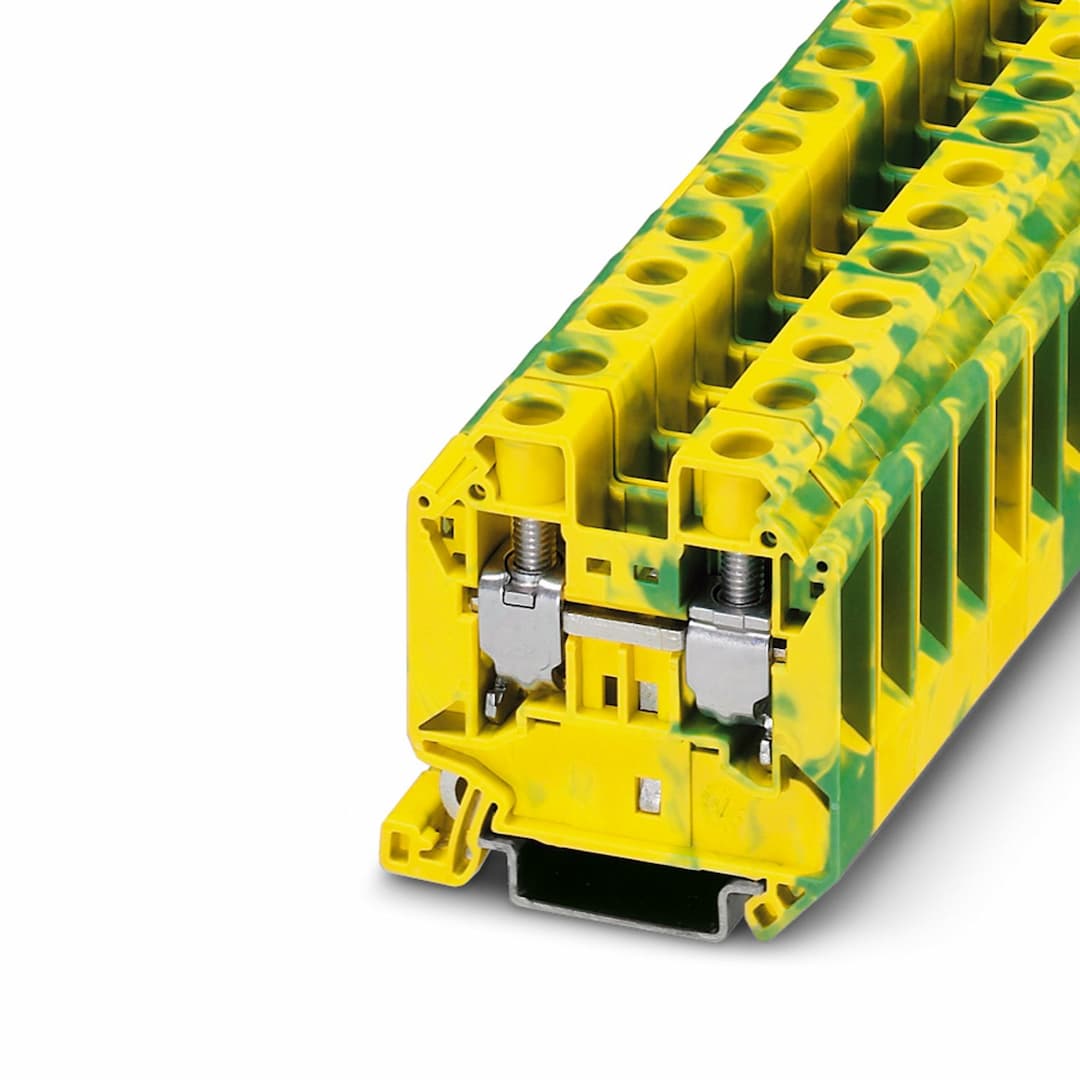

Product type | Ground terminal block | Area of application | Railway industry
Machine building
Plant engineering
Process industry |
Number of connections | 2 | Number of rows | 1 |
Article revision | 13 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 8 kV |
Maximum power dissipation for nominal condition | 2.43 W | Grounding foot | Yes |
Number of connections per level | 2 | Nominal cross section | 16 mm² |
Screw thread | M5 | Note | Please observe the current carrying capacity of the DIN rails. |
Tightening torque | 2.5 ... 3 Nm | Stripping length | 14 mm |
Internal cylindrical gage | A7 | Connection in acc. with standard | IEC 60947-7-2 |
Conductor cross section rigid | 1.5 mm² ... 25 mm² | Cross section AWG | 14 ... 4 (converted acc. to IEC) |
Conductor cross section flexible | 1.5 mm² ... 25 mm² | Conductor cross section, flexible [AWG] | 14 ... 4 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 1 mm² ... 16 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 1 mm² ... 16 mm² |
Note | Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. | Nominal cross section | 16 mm² |
Identification | II 2 GD Ex eb IIC Gb | Operating temperature range | -60 °C ... 110 °C |
Ex-certified accessories | 3047206 D-UT 16
1205066 SZS 1,0X4,0 VDE
3022276 CLIPFIX 35-5
3022218 CLIPFIX 35 | output | (Permanent) |
Torque range | 2.5 Nm ... 3 Nm | Nominal cross section | 16 mm² |
Rated cross section AWG | 6 | Connection capacity rigid | 1.5 mm² ... 25 mm² |
Connection capacity AWG | 16 ... 4 | Connection capacity flexible | 1.5 mm² ... 16 mm² |
Connection capacity AWG | 16 ... 6 | Width | 12.2 mm |
End cover width | 2.2 mm | Height | 55.5 mm |
Depth | 54.4 mm | Depth on NS 35/7,5 | 55 mm |
Depth on NS 35/15 | 62.5 mm | Color | green-yellow |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg | Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Open side panel | Yes | Specification | DIN EN 50155 (VDE 0115-200):2018-05 |
Spectrum | Service life test category 2, bogie-mounted | Frequency | f |
ASD level | 6.12 (m/s²)²/Hz | Acceleration | 3.12g |
Test duration per axis | 5 h | Test directions | X-, Y- and Z-axis |
Specification | DIN EN 50155 (VDE 0115-200):2008-03 | Pulse shape | Half-sine |
Acceleration | 30g | Shock duration | 18 ms |
Number of shocks per direction | 3 | Test directions | X-, Y- and Z-axis (pos. and neg.) |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Connection in acc. with standard | IEC 60947-7-2 | Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
