Selling Points

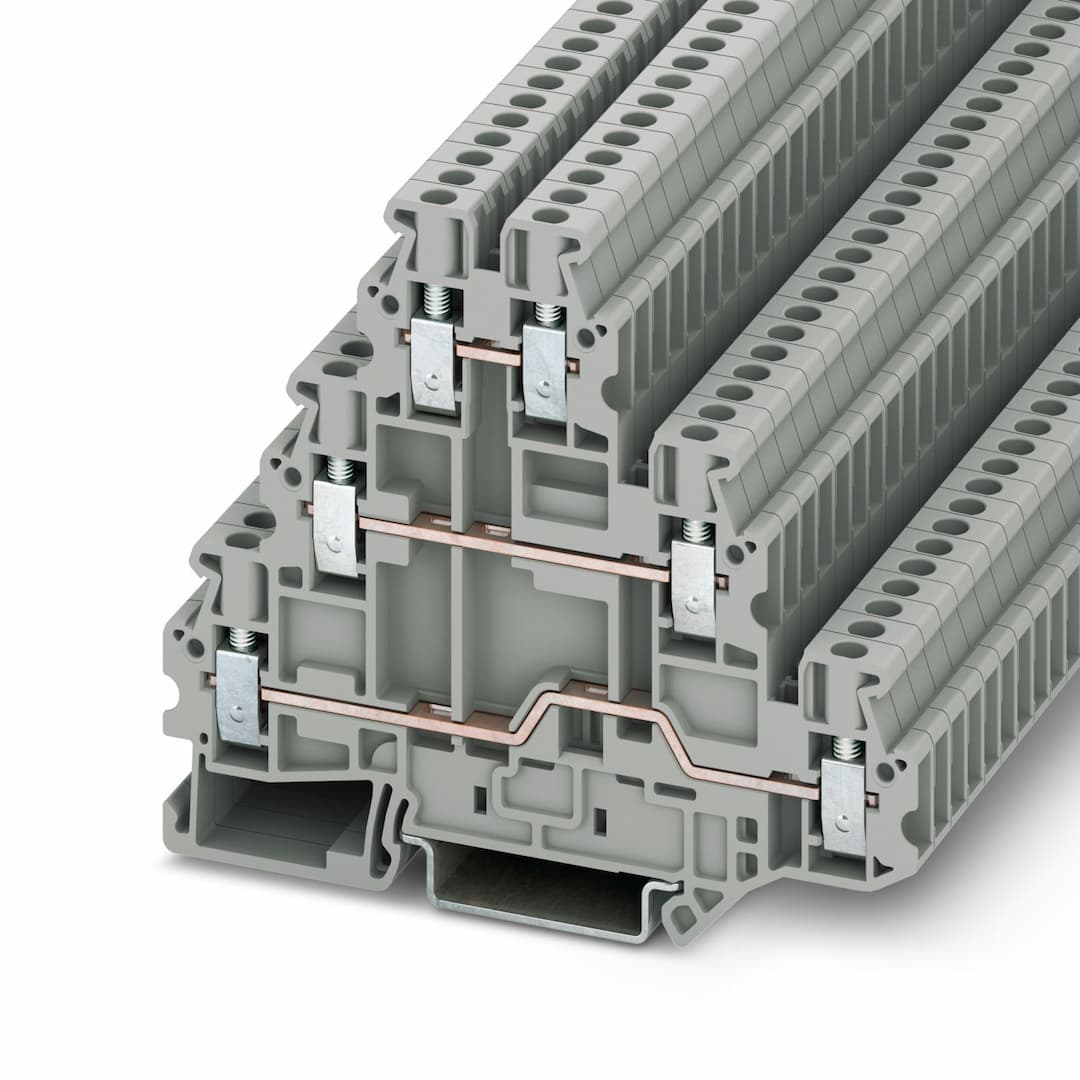

- 1Achieves high wiring density with a compact three-level terminal block.
- 2Supports screw connection with a wide conductor cross-section range (0.14 mm² - 4 mm²).
- 3Tested and certified for railway applications, meeting DIN EN 45545-2 fire protection standards.
- 4Each terminal point supports large-surface labeling for clear overview and organization.
- 5Rated for 19 A nominal current and 500 V nominal voltage, ensuring reliable electrical performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Multi-level terminal block | Product family | UT |
Number of positions | 1 | Number of connections | 6 |
Number of rows | 3 | Potentials | 3 |
Article revision | 06 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 6 kV |
Maximum power dissipation for nominal condition | 0.77 W | Number of connections per level | 2 |
Nominal cross section | 2.5 mm² | Rated cross section AWG | 12 |
Screw thread | M3 | Tightening torque | 0.5 ... 0.6 Nm |
Stripping length | 9 mm | Internal cylindrical gage | A3 |
Connection in acc. with standard | IEC 60947-7-1 | Conductor cross section rigid | 0.14 mm² ... 4 mm² |
Cross section AWG | 26 ... 12 (converted acc. to IEC) | Conductor cross section flexible | 0.14 mm² ... 4 mm² |
Conductor cross section, flexible [AWG] | 26 ... 12 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 2.5 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 2.5 mm² | Nominal current | 19 A (with a 2.5 mm² conductor cross section) |
Maximum load current | 24 A (in case of a 4 mm² conductor cross section, the maximum load current must not be exceeded by the total current of all connected conductors.) | Nominal voltage | 500 V |
Note | Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. | Nominal cross section | 2.5 mm² |
Connection in acc. with standard | IEC/EN 60079-7 | Conductor cross section rigid | 0.14 mm² ... 4 mm² |
Cross section AWG | 26 ... 12 (converted acc. to IEC) | Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
Maximum load current | 28 A (with 4 mm² conductor cross section)
22 A (with a 2.5 mm² conductor cross section) | Nominal voltage | 690 V |
Nominal cross section | 4 mm² | Width | 5.2 mm |
End cover width | 2.2 mm | Height | 90 mm |
Depth on NS 35/7,5 | 77.5 mm | Depth on NS 35/15 | 85 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 |
Insulating material group | I | Insulating material | PA |
Static insulating material application in cold | -60 °C | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 | Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
Surface flammability NFPA 130 (ASTM E 162) | passed | Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
Smoke gas toxicity NFPA 130 (SMP 800C) | passed | Open side panel | Yes |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Connection in acc. with standard | IEC 60947-7-1
IEC/EN 60079-7 | Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
