Product Model

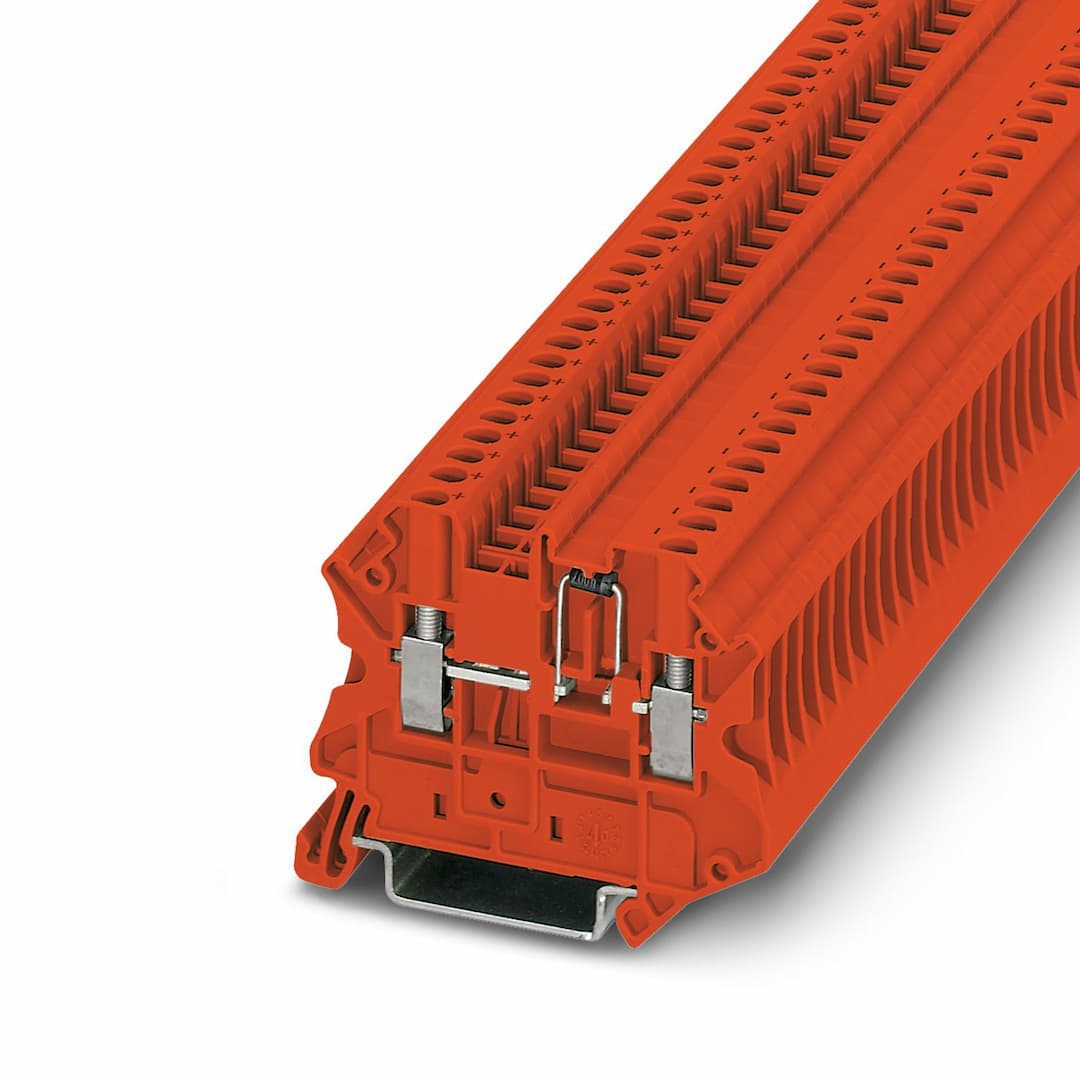

UT 2,5-MTD-DIO/L-R RD
Selling Points
- 1Integrated Diode: Ensures maximum current is determined by the diode (1N 4007), with a reverse voltage of 1300 V and maximum continuous current of 0.5 A.
- 2High Surge Voltage: Rated surge voltage of 8 kV for enhanced electrical reliability.
- 3Robust Mechanical Properties: Designed for durability with a screw thread M3, tightening torque of 0.5-0.6 Nm, and stripping length of 9 mm.
- 4Flexible Conductor Cross Section: Supports conductor cross sections from 0.14 mm² to 4 mm² (AWG 26 to 12) for versatile applications.
- 5Compliant with Industry Standards: Meets overvoltage category III and degree of pollution 3, ensuring compliance with stringent electrical standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
General | The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A. | Product type | Component terminal block |
Number of connections | 2 | Number of rows | 1 |
Potentials | 1 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 8 kV |
Number of connections per level | 2 | Nominal cross section | 2.5 mm² |
Screw thread | M3 | Tightening torque | 0.5 ... 0.6 Nm |
Stripping length | 9 mm | Internal cylindrical gage | A3 |
Conductor cross section rigid | 0.14 mm² ... 4 mm² | Cross section AWG | 26 ... 12 (converted acc. to IEC) |
Conductor cross section flexible | 0.14 mm² ... 4 mm² | Conductor cross section, flexible [AWG] | 26 ... 12 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 2.5 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 2.5 mm² |
2 conductors with same cross section, solid | 0.14 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible | 0.14 mm² ... 1.5 mm² |
2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.14 mm² ... 1.5 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1.5 mm² |
Nominal current | 0.5 A | Maximum load current | 0.5 A |
Nominal voltage | 800 V | Nominal cross section | 1 mm² |
Width | 5.2 mm | End cover width | 2.2 mm |
Color | red | Flammability rating according to UL 94 | V0 |
Insulating material group | I | Insulating material | PA |
Open side panel | Yes | Mounting type | NS 35/7,5
NS 35/15 |
