Product Model

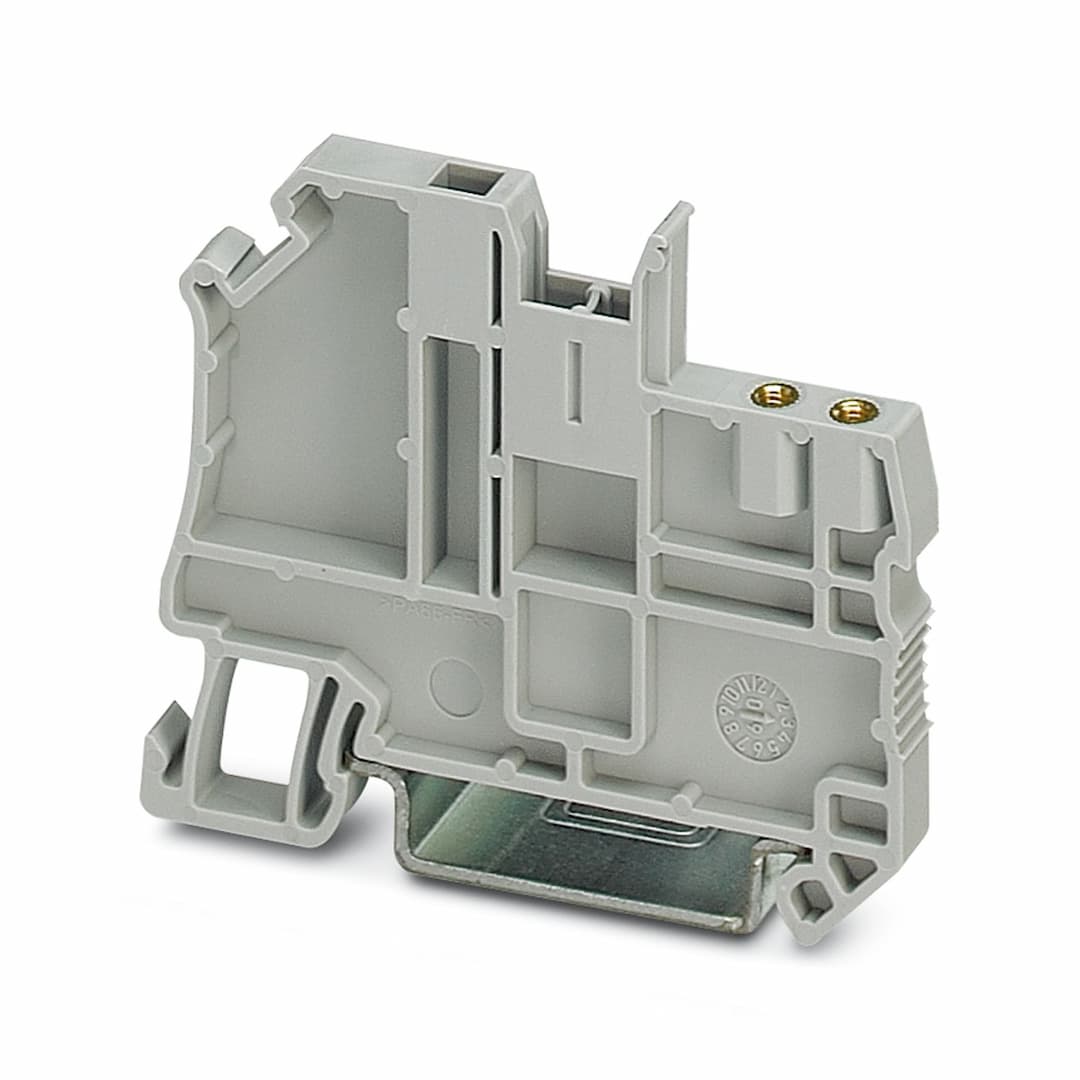

UT 2,5-TWIN/1P-F
Selling Points
- 1Designed for screwing COMBI plugs, ensuring secure and reliable connections up to 500V.
- 2Built with robust materials, providing long-lasting performance in demanding electrical environments.
- 3Simple screw-in design makes installation quick and hassle-free, saving time and effort.
- 4Suitable for a wide range of applications including industrial automation, process control, and more.
- 5Meets industry standards for electrical safety and performance, ensuring compliance with IEC 60947-7-1.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Flange | Number of connections | 0 |
Number of rows | 1 | Article revision | 02 |
Screw thread | M2,5 | Tightening torque | 0.4 ... 0.5 Nm |
Width | 5.2 mm | End cover width | 2.2 mm |
Height | 55.6 mm | Depth | 46.9 mm |
Depth on NS 35/7,5 | 47.5 mm | Depth on NS 35/15 | 55 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg | Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
