Selling Points

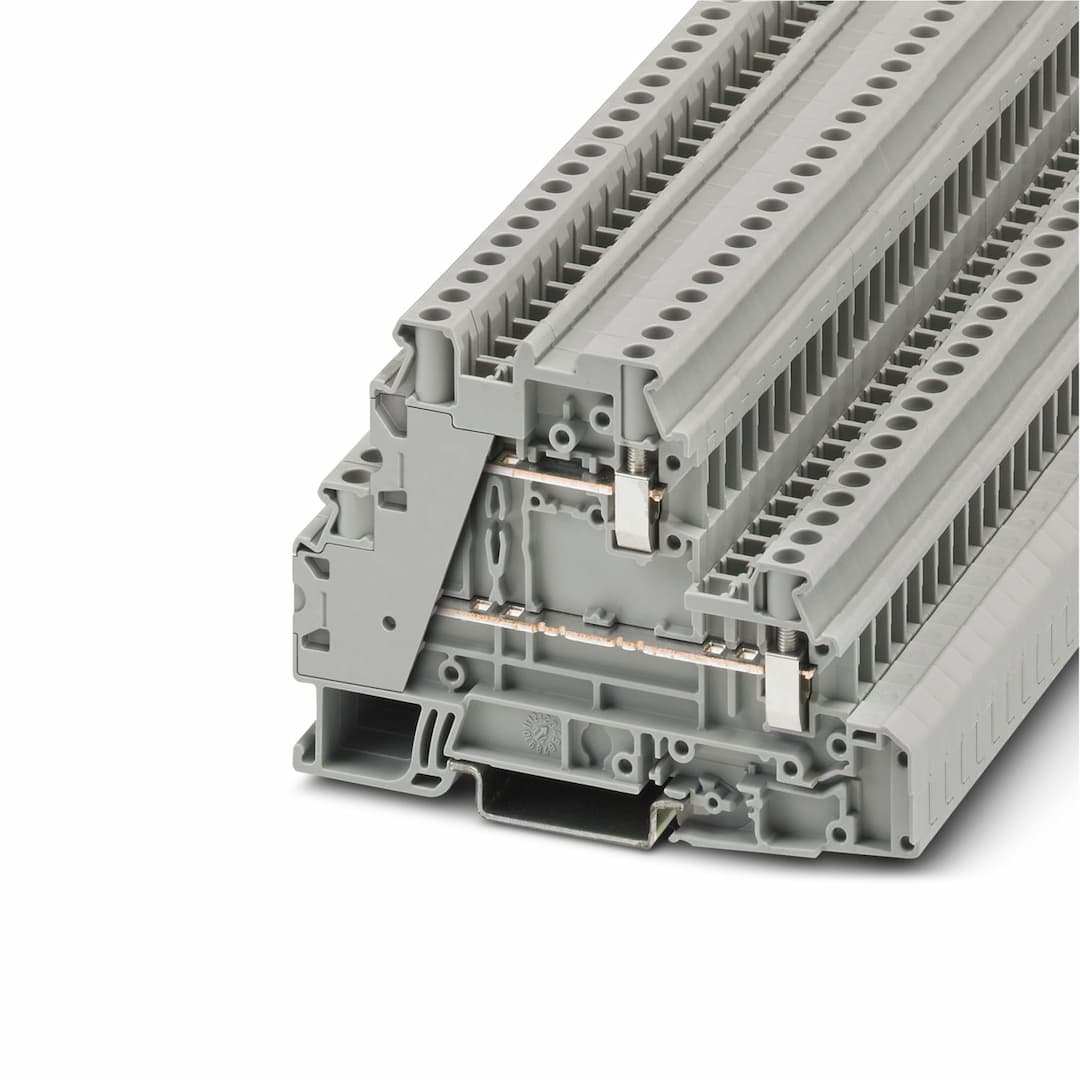

- 1Multi-Level Design: The UT 4-L/L terminal block offers a multi-level design with 4 connections and 2 rows, providing flexibility in wiring configurations.
- 2High Insulation Characteristics: With an overvoltage category of III, this terminal block ensures high insulation characteristics, protecting against electrical surges.
- 3Screw Connection: Easy screw connection makes installation and maintenance straightforward, ensuring reliable connections.
- 4Compact Dimensions: Measuring 6.2 mm in width and 92.7 mm in height, the UT 4-L/L is compact and space-efficient.
- 5Durable Material: Constructed from high-quality insulating material (PA) with a flammability rating of V0 according to UL 94, ensuring durability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Feed-through terminal block | Number of connections | 4 |
Number of rows | 2 | Potentials | 2 |
Article revision | 10 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 6 kV |
Maximum power dissipation for nominal condition | 1.02 W | Number of connections per level | 2 |
Nominal cross section | 4 mm² | Screw thread | M3 |
Tightening torque | 0.6 ... 0.8 Nm | Stripping length | 9 mm |
Internal cylindrical gage | A4 | Identification | II 3 G Ex ec llC Gc |
Operating temperature range | -60 °C ... 130 °C | Ex-certified accessories | 3047183 ATP-UT-TWIN
1205053 SZS 0,6X3,5
3022276 CLIPFIX 35-5
3022218 CLIPFIX 35 |
Rated voltage | 550 V | Rated insulation voltage | 500 V |
output | (Permanent) | Torque range | 0.6 Nm ... 0.8 Nm |
Nominal cross section | 4 mm² | Rated cross section AWG | 12 |
Connection capacity rigid | 0.14 mm² ... 6 mm² | Connection capacity AWG | 26 ... 10 |
Connection capacity flexible | 0.14 mm² ... 6 mm² | Connection capacity AWG | 26 ... 10 |
2 conductors with same cross section, solid | 0.14 mm² ... 1.5 mm² | 2 conductors with the same cross-section AWG rigid | 26 ... 16 |
2 conductors with same cross section, stranded | 0.14 mm² ... 1.5 mm² | 2 conductors with the same cross-section AWG flexible | 26 ... 16 |
Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.14 mm² | Conductor cross section flexible, with ferrule without plastic sleeve max. | 4 mm² |
Single conductor/terminal point, flexible, with ferrule, without plastic sleeve, AWG | 26 ... 12 | output | (Permanent) |
Rated current | 26 A (4 mm²) | Maximum load current | 32 A (6 mm²) |
Contact resistance | 0.6 mΩ | Temperature increase | 40 K (26 A / 4 mm²) |
output | (Permanent) | Rated current | 26 A (4 mm²) |
Maximum load current | 32 A (6 mm²) | Contact resistance | 0.4 mΩ |
Temperature increase | 40 K (26 A / 4 mm²) | Width | 6.2 mm |
Height | 92.7 mm | Depth | 60.1 mm |
Depth on NS 35/7,5 | 61.7 mm | Depth on NS 35/15 | 69.2 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 |
Insulating material group | I | Insulating material | PA |
Static insulating material application in cold | -60 °C | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Test voltage setpoint | 7.3 kV |
Result | Test passed | Requirement temperature-rise test | Increase in temperature ≤ 45 K |
Result | Test passed | Short-time withstand current 4 mm² | 0.48 kA |
Short-time withstand current 6 mm² | 0.72 kA | Result | Test passed |
Test voltage setpoint | 1.89 kV | Result | Test passed |
Open side panel | No | Result | Test passed |
DIN rail/fixing support | NS 35 | Test force setpoint | 1 N |
Result | Test passed | Rotation speed | 10 rpm |
Revolutions | 135 | Conductor cross section/weight | 0.14 mm² / 0.2 kg
4 mm² / 0.9 kg
6 mm² / 1.4 kg |
Result | Test passed | Time of exposure | 30 s |
Result | Test passed | Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
Spectrum | Service life test category 1, class B, body mounted | Frequency | f |
ASD level | 0.964 (m/s²)²/Hz | Acceleration | 0.58g |
Test duration per axis | 5 h | Test directions | X-, Y- and Z-axis |
Result | Test passed | Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
Pulse shape | Half-sine | Acceleration | 5g |
Shock duration | 30 ms | Number of shocks per direction | 3 |
Test directions | X-, Y- and Z-axis (pos. and neg.) | Result | Test passed |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
