Product Model

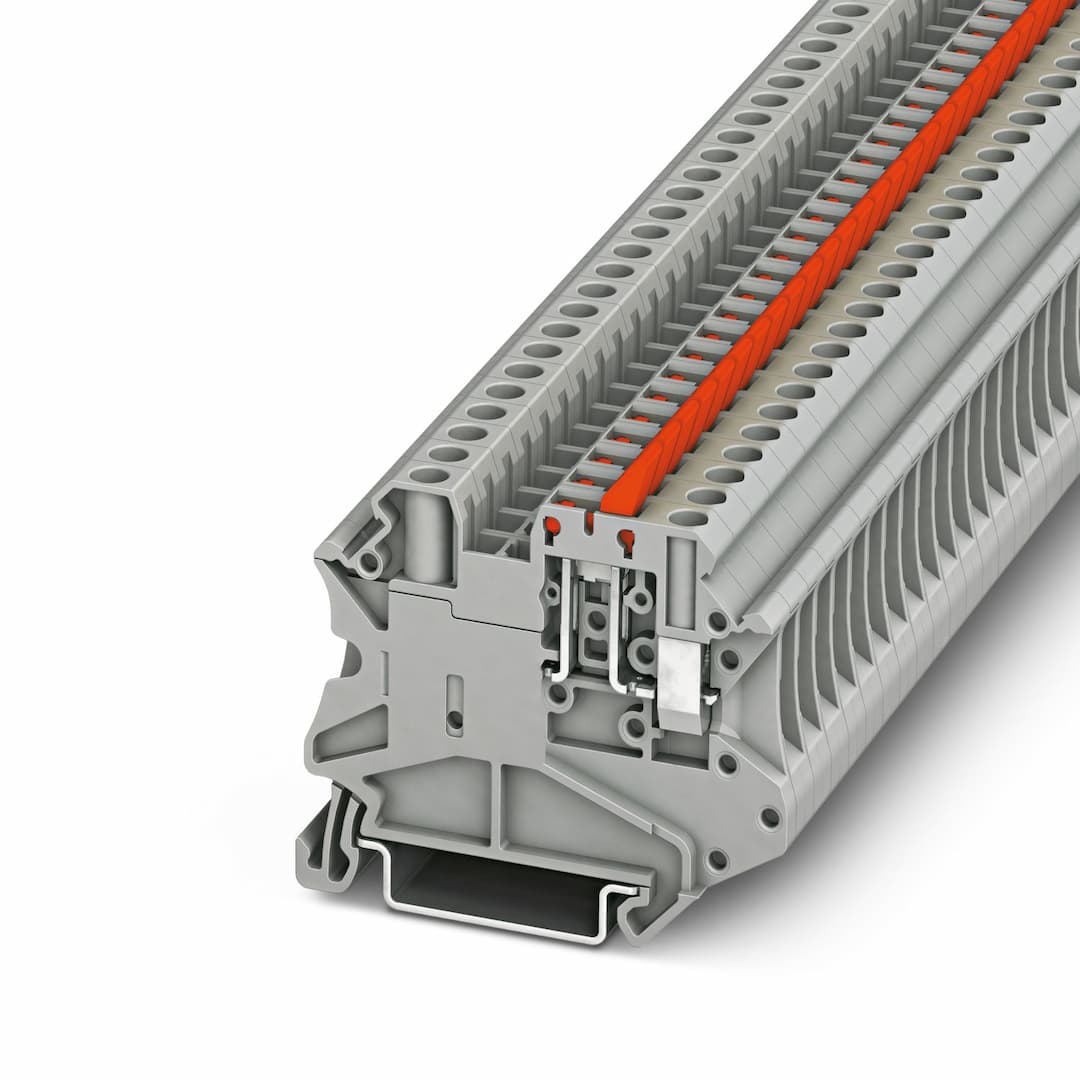

UT 4-MTL-P/P KNIFE-RD
Selling Points
- 1Supports up to 20 A with a 6 mm² conductor cross section.
- 2Measuring 57.8 mm in length and 6.2 mm in width, perfect for space-constrained projects.
- 3Compliant with IEC 60947-7-1 standard for secure and reliable connections.
- 4Meets UL 94 V0 flammability rating for enhanced safety.
- 5Suitable for machine building and plant engineering, with a rated surge voltage of 6 kV.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Disconnect terminal block | Area of application | Machine building
Plant engineering |
Number of connections | 2 | Number of rows | 1 |
Potentials | 1 | Article revision | 07 |
Overvoltage category | III | Degree of pollution | 3 |
Rated surge voltage | 6 kV | Maximum power dissipation for nominal condition | 1.02 W |
Number of connections per level | 2 | Nominal cross section | 4 mm² |
Screw thread | M3 | Tightening torque | 0.6 ... 0.8 Nm |
Stripping length | 9 mm | Internal cylindrical gage | A4 |
Connection in acc. with standard | IEC 60947-7-1 | Conductor cross section rigid | 0.14 mm² ... 6 mm² |
Cross section AWG | 26 ... 10 (converted acc. to IEC) | Conductor cross section flexible | 0.14 mm² ... 6 mm² |
Conductor cross section, flexible [AWG] | 26 ... 10 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 4 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 4 mm² | 2 conductors with same cross section, solid | 0.14 mm² ... 1.5 mm² |
2 conductors with same cross section, flexible | 0.14 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.14 mm² ... 1.5 mm² |
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² | Nominal current | 20 A |
Maximum load current | 20 A (with 6 mm² conductor cross section) | Nominal voltage | 500 V |
Nominal cross section | 2.5 mm² | Width | 6.2 mm |
Height | 57.8 mm | Depth on NS 35/7,5 | 49.1 mm |
Depth on NS 35/15 | 56.6 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg | Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Test voltage setpoint | 7.3 kV | Result | Test passed |
Requirement temperature-rise test | Increase in temperature ≤ 45 K | Result | Test passed |
Short-time withstand current 2.5 mm² | 0.3 kA | Result | Test passed |
Test voltage setpoint | 1.89 kV | Result | Test passed |
Open side panel | No | Result | Test passed |
DIN rail/fixing support | NS 35 | Test force setpoint | 1 N |
Result | Test passed | Rotation speed | 10 rpm |
Revolutions | 135 | Conductor cross section/weight | 0.14 mm² / 0.2 kg
4 mm² / 0.9 kg
6 mm² / 1.4 kg |
Result | Test passed | Time of exposure | 30 s |
Result | Test passed | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-1 |
Mounting type | NS 35/7,5
NS 35/15 |
