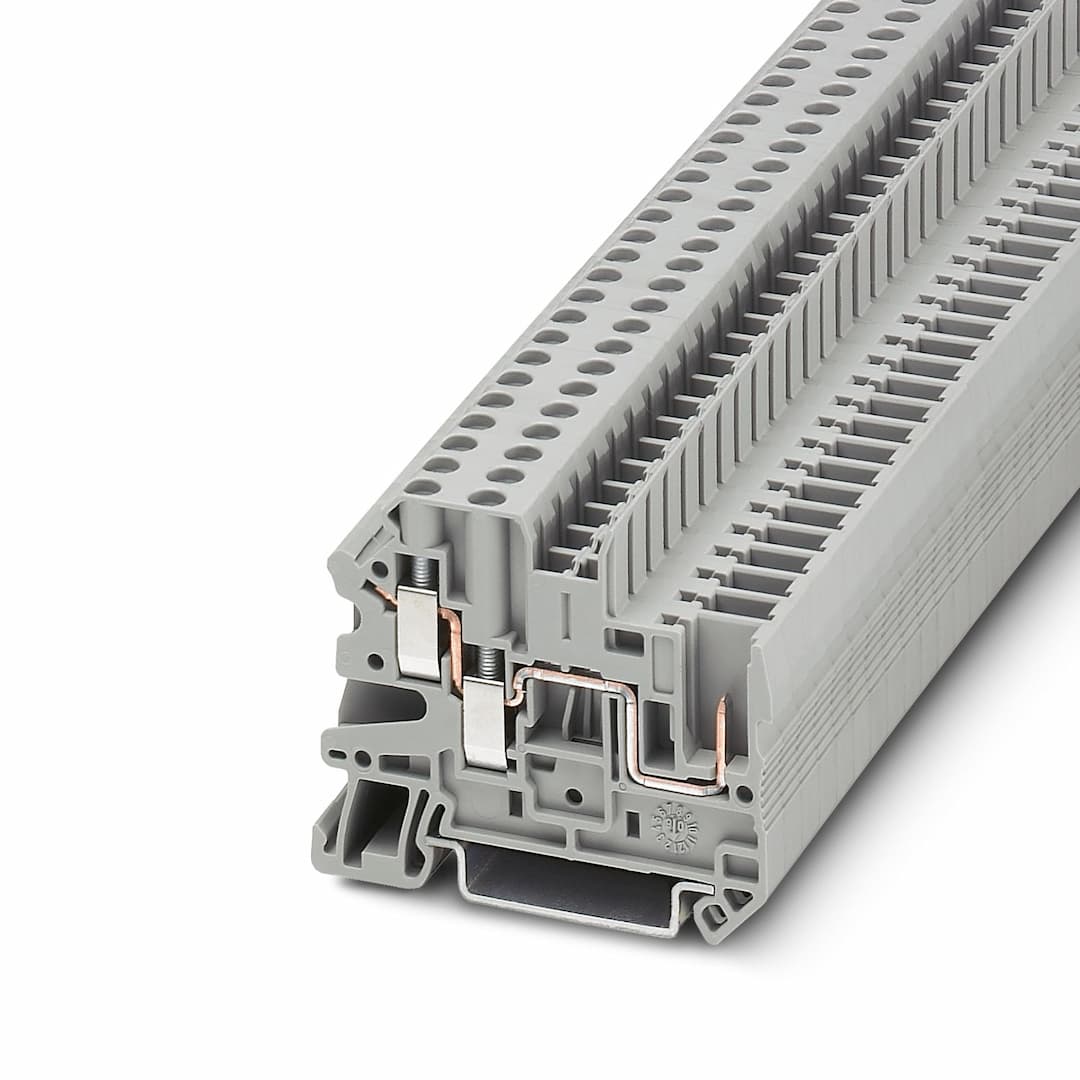

Product Model
UT 4-TWIN/ 1P
Selling Points
- 1500V for reliable electrical connections.
- 2Handles up to 32A, suitable for demanding applications.
- 3Easy and secure connection method.
- 4Fits various wire gauges from 26 to 10AWG.
- 5Built to withstand harsh environments and frequent use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
General | The max. load current must not be exceeded by the total current of all connected conductors. | Note | The max. load current must not be exceeded by the total current of all connected conductors.
With a free-hanging connection, an insulating foil has to be placed between the plug connection and electrically conductive surfaces. |
Product type | Plug-in terminal block | Product family | UT |
Number of positions | 1 | Number of connections | 3 |
Number of rows | 1 | Potentials | 1 |
Article revision | 06 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 6 kV |
Maximum power dissipation for nominal condition | 1.02 W | Number of connections per level | 3 |
Nominal cross section | 4 mm² | Screw thread | M3 |
Tightening torque | 0.6 ... 0.8 Nm | Stripping length | 9 mm |
Internal cylindrical gage | A4 | Connection in acc. with standard | IEC 61984 |
Conductor cross section rigid | 0.14 mm² ... 6 mm² | Cross section AWG | 26 ... 10 (converted acc. to IEC) |
Conductor cross section flexible | 0.14 mm² ... 6 mm² | Conductor cross section, flexible [AWG] | 26 ... 10 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 4 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 4 mm² |
2 conductors with same cross section, solid | 0.14 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible | 0.14 mm² ... 1.5 mm² |
2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.14 mm² ... 1.5 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1 mm² |
Nominal current | 32 A (observe derating) | Maximum load current | 32 A (In the case of a 6 mm² conductor cross section, the maximum load current must not be exceeded by the total current of all connected conductors) |
Nominal voltage | 500 V | Nominal cross section | 4 mm² |
Width | 6.2 mm | End cover width | 2.2 mm |
Height | 55.7 mm | Depth on NS 35/7,5 | 47.5 mm |
Depth on NS 35/15 | 55 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 | Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Test voltage setpoint | 7.3 kV | Result | Test passed |
Short-time withstand current 4 mm² | 0.48 kA | Result | Test passed |
Test voltage setpoint | 1.89 kV | Result | Test passed |
Open side panel | Yes | Result | Test passed |
Time of exposure | 30 s | Result | Test passed |
Specification | DIN EN 50155 (VDE 0115-200):2022-06 | Spectrum | Service life test category 1, class B, body mounted |
Frequency | f | ASD level | 0.964 (m/s²)²/Hz |
Acceleration | 0.58g | Test duration per axis | 5 h |
Test directions | X-, Y- and Z-axis | Result | Test passed |
Specification | DIN EN 50155 (VDE 0115-200):2022-06 | Pulse shape | Half-sine |
Acceleration | 5g | Shock duration | 30 ms |
Number of shocks per direction | 3 | Test directions | X-, Y- and Z-axis (pos. and neg.) |
Result | Test passed | Ambient temperature (operation) | -60 °C (max. operating temperature see derating curve) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 61984 |
Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
