Phoenix Contact UT 4-TWIN/ 1P BU

Selling Points

  • 1Secure Electrical Connections: The UT 4-TWIN/1P BU features a reliable screw connection method for secure and efficient electrical connections.
  • 2High Amperage Capacity: Supports up to 32 Amps, making it suitable for various industrial applications.
  • 3Wide Voltage Rating: Rated for 1000 Volts, ensuring it can handle high voltage requirements.
  • 4Compact Design: Measuring 6.2 mm in width, it is compact and space-efficient.
  • 5Durable Construction: Built with high-quality materials to withstand harsh industrial environments.
Product Details

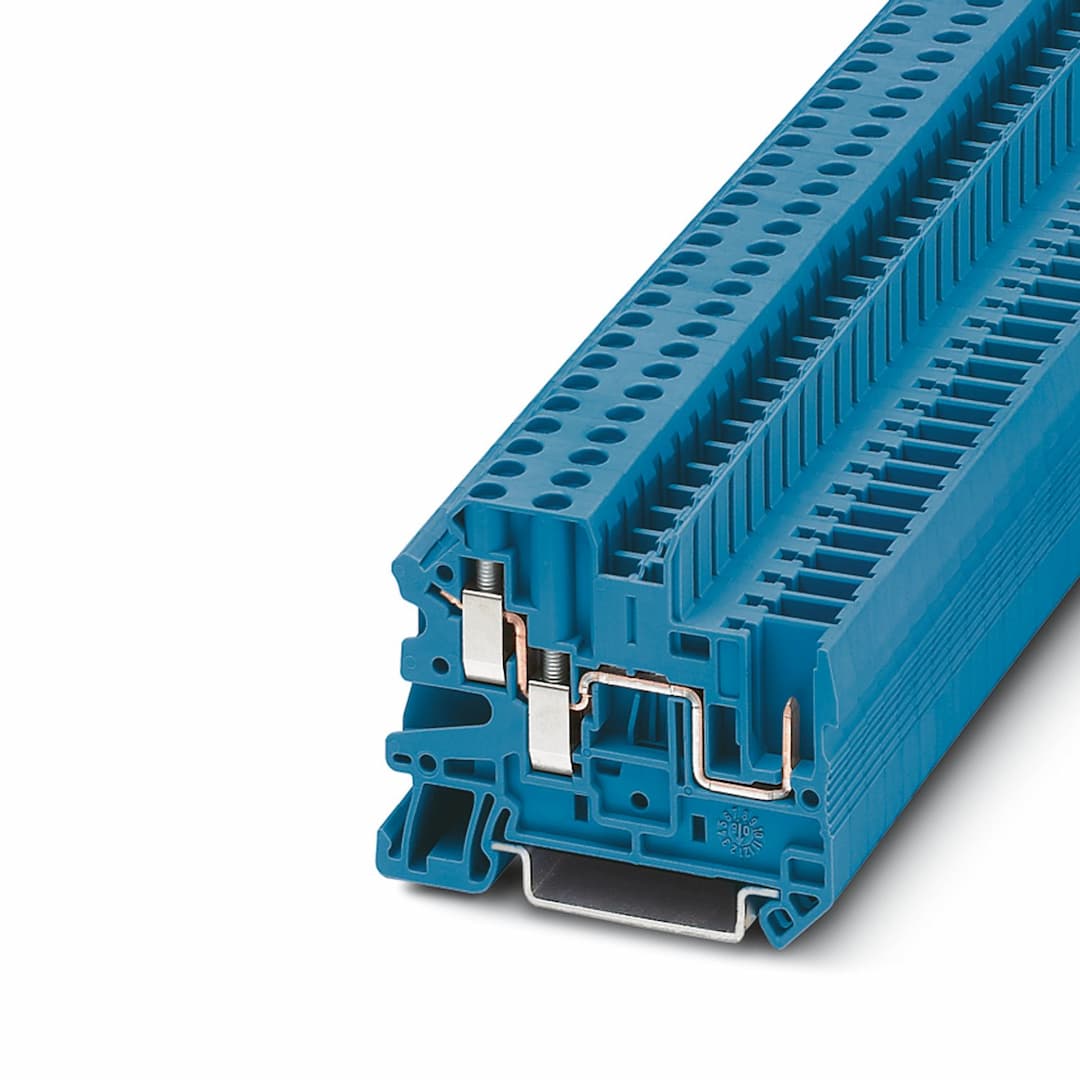

UT 4-TWIN/ 1P BU
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
General
The max. load current must not be exceeded by the total current of all connected conductors.
Product type
Plug-in terminal block
Number of positions
1
Number of connections
3
Number of rows
1
Potentials
1
Article revision
06
Overvoltage category
III
Degree of pollution
3
Rated surge voltage
6 kV
Maximum power dissipation for nominal condition
1.02 W
Number of connections per level
3
Nominal cross section
4 mm²
Screw thread
M3
Tightening torque
0.6 ... 0.8 Nm
Stripping length
9 mm
Internal cylindrical gage
A4
Connection in acc. with standard
IEC 61984
Conductor cross section rigid
0.14 mm² ... 6 mm²
Cross section AWG
26 ... 10 (converted acc. to IEC)
Conductor cross section flexible
0.14 mm² ... 6 mm²
Conductor cross section, flexible [AWG]
26 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)
0.14 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)
0.14 mm² ... 4 mm²
2 conductors with same cross section, solid
0.14 mm² ... 1.5 mm²
2 conductors with same cross section, flexible
0.14 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve
0.14 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve
0.5 mm² ... 1 mm²
Nominal current
32 A
Maximum load current
32 A (In the case of a 6 mm² conductor cross section, the maximum load current must not be exceeded by the total current of all connected conductors)
Nominal voltage
500 V
Nominal cross section
4 mm²
Width
6.2 mm
End cover width
2.2 mm
Height
55.7 mm
Depth on NS 35/7,5
47.5 mm
Depth on NS 35/15
55 mm
Color
blue (RAL 5015)
Flammability rating according to UL 94
V0
Insulating material group
I
Insulating material
PA
Static insulating material application in cold
-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))
130 °C
Relative insulation material temperature index (Elec., UL 746 B)
130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26
HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)
28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)
passed
Specific optical density of smoke NFPA 130 (ASTM E 662)
passed
Smoke gas toxicity NFPA 130 (SMP 800C)
passed
Open side panel
Yes
Ambient temperature (operation)
-60 °C (max. operating temperature see derating curve)
Ambient temperature (storage/transport)
-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)
-5 °C ... 70 °C
Ambient temperature (actuation)
-5 °C ... 70 °C
Permissible humidity (operation)
20 % ... 90 %
Permissible humidity (storage/transport)
30 % ... 70 %
Connection in acc. with standard
IEC 61984
Mounting type
NS 35/7,5 NS 35/15

Specifications may be subject to change without notice
