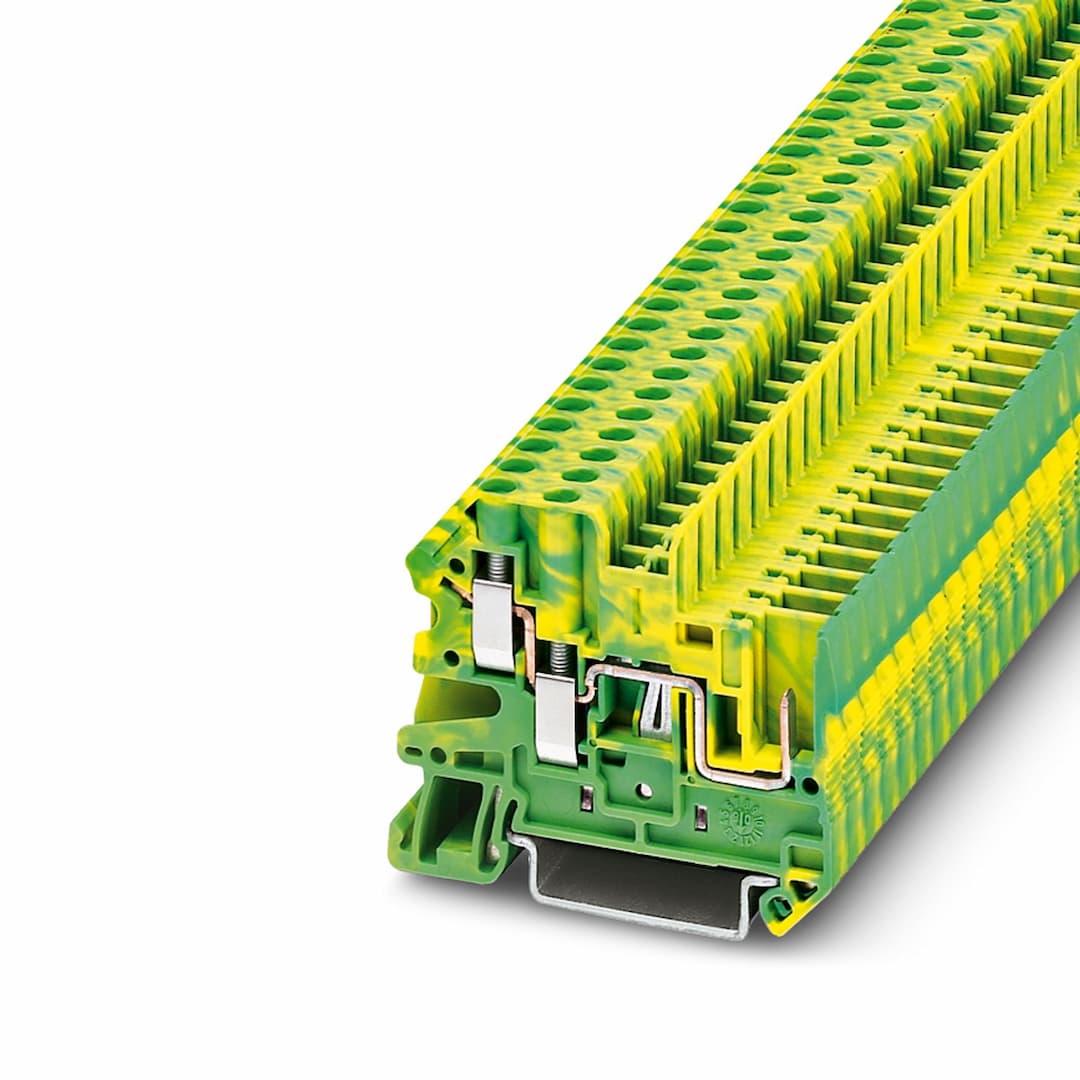

Phoenix Contact UT 4-TWIN/ 1P-PE

Selling Points

  • 1Universal Application: Suitable for a wide range of applications due to its large cross-section range.
  • 2Shock and Vibration Resistance: Designed to withstand 5g acceleration with 30 ms shock duration and 3 shocks per direction.
  • 3Easy Installation: Features a single through screw connection for simple and secure mounting.
  • 4High Reliability: Constructed with durable materials for long-lasting performance.
  • 5Compact Design: Available in green-yellow color, making it easy to identify in electrical systems.
Product Details
UT 4-TWIN/ 1P-PE
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
General
The max. load current must not be exceeded by the total current of all connected conductors.
Note
The max. load current must not be exceeded by the total current of all connected conductors. With a free-hanging connection, an insulating foil has to be placed between the plug connection and electrically conductive surfaces.
Product type
Ground terminal block
Number of connections
3
Number of rows
1
Article revision
07
Overvoltage category
III
Degree of pollution
3
Rated surge voltage
6 kV
Maximum power dissipation for nominal condition
1.02 W
Grounding foot
Yes
Number of connections per level
3
Nominal cross section
4 mm²
Screw thread
M3
Note
Please observe the current carrying capacity of the DIN rails.
Tightening torque
0.6 ... 0.8 Nm
Stripping length
9 mm
Internal cylindrical gage
A4
Connection in acc. with standard
IEC 61984
Conductor cross section rigid
0.14 mm² ... 6 mm²
Cross section AWG
26 ... 10 (converted acc. to IEC)
Conductor cross section flexible
0.14 mm² ... 6 mm²
Conductor cross section, flexible [AWG]
26 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)
0.14 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)
0.14 mm² ... 4 mm²
Nominal cross section
4 mm²
Width
6.2 mm
End cover width
2.2 mm
Height
55.7 mm
Depth on NS 35/7,5
47.5 mm
Depth on NS 35/15
55 mm
Color
green-yellow
Flammability rating according to UL 94
V0
Insulating material group
I
Insulating material
PA
Static insulating material application in cold
-60 °C
Relative insulation material temperature index (Elec., UL 746 B)
130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26
HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)
passed
Specific optical density of smoke NFPA 130 (ASTM E 662)
passed
Smoke gas toxicity NFPA 130 (SMP 800C)
passed
Open side panel
Yes
Specification
DIN EN 50155 (VDE 0115-200):2022-06
Spectrum
Service life test category 1, class B, body mounted
Frequency
f
ASD level
0.964 (m/s²)²/Hz
Acceleration
0.58g
Test duration per axis
5 h
Test directions
X-, Y- and Z-axis
Result
Test passed
Specification
DIN EN 50155 (VDE 0115-200):2022-06
Pulse shape
Half-sine
Acceleration
5g
Shock duration
30 ms
Number of shocks per direction
3
Test directions
X-, Y- and Z-axis (pos. and neg.)
Result
Test passed
Ambient temperature (operation)
-60 °C (max. operating temperature see derating curve)
Ambient temperature (storage/transport)
-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)
-5 °C ... 70 °C
Ambient temperature (actuation)
-5 °C ... 70 °C
Permissible humidity (operation)
20 % ... 90 %
Permissible humidity (storage/transport)
30 % ... 70 %
Connection in acc. with standard
IEC 61984
Mounting type
NS 35/7,5 NS 35/15

Specifications may be subject to change without notice
