Selling Points
- 1Compact design with large wiring space for solid and stranded conductors.
- 2Screw termination method for easy and secure connections.
- 3High current rating of 41A for reliable power distribution.
- 4Fused design ensures safety and reliability in electrical applications.
- 5Made in Germany, ensuring high-quality manufacturing standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

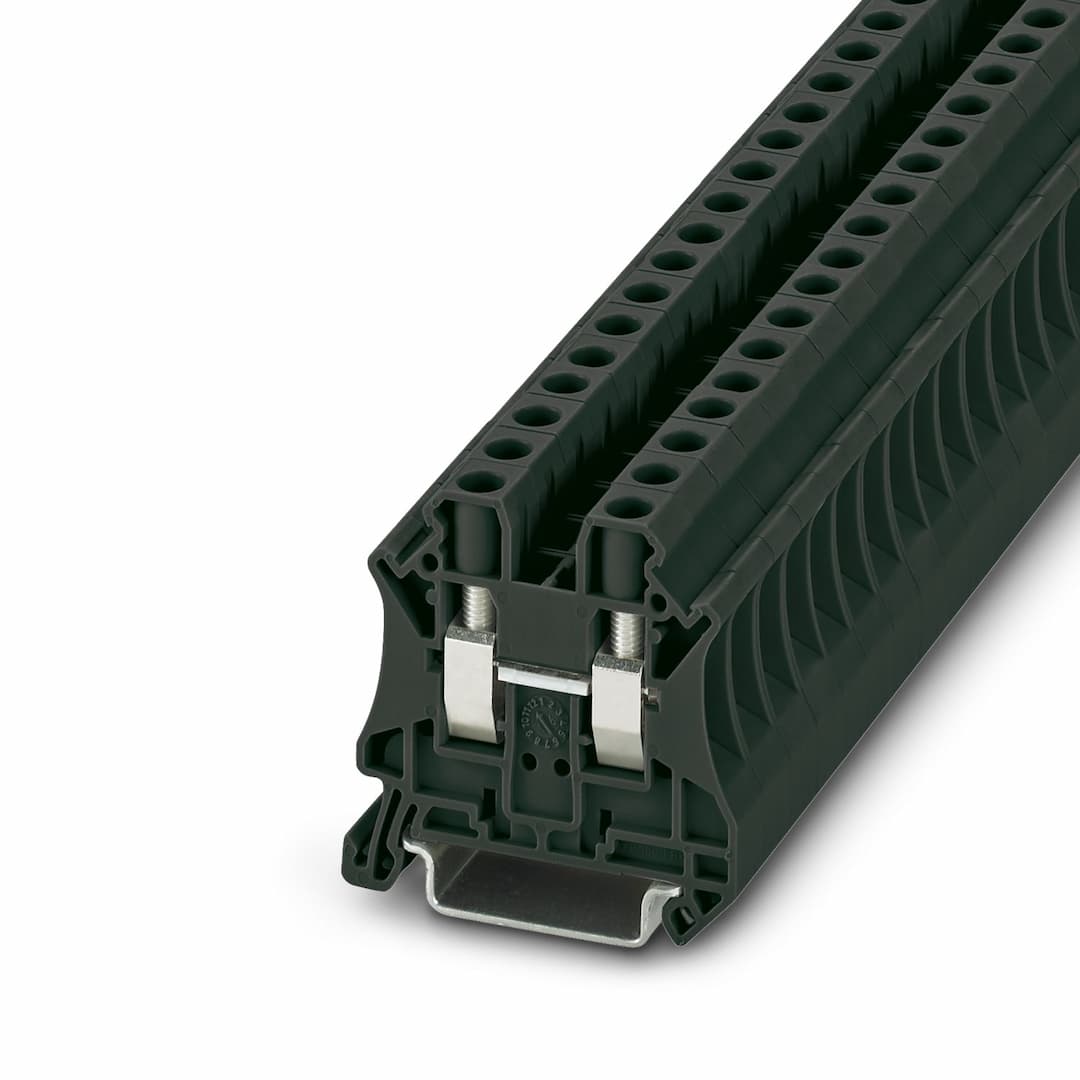

Product type | Feed-through terminal block | Area of application | Railway industry
Machine building
Plant engineering
Process industry |
Number of connections | 2 | Number of rows | 1 |
Potentials | 1 | Article revision | 15 |
Overvoltage category | III | Degree of pollution | 3 |
Rated surge voltage | 8 kV | Maximum power dissipation for nominal condition | 1.31 W |
Number of connections per level | 2 | Nominal cross section | 6 mm² |
Rated cross section AWG | 8 | Screw thread | M4 |
Tightening torque | 1.5 ... 1.8 Nm | Stripping length | 10 mm |
Internal cylindrical gage | A5 | Connection in acc. with standard | IEC 60947-7-1 |
Conductor cross section rigid | 0.2 mm² ... 10 mm² | Cross section AWG | 24 ... 8 (converted acc. to IEC) |
Conductor cross section flexible | 0.2 mm² ... 10 mm² | Conductor cross section, flexible [AWG] | 24 ... 8 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 6 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 6 mm² |
2 conductors with same cross section, solid | 0.2 mm² ... 2.5 mm² | 2 conductors with same cross section, flexible | 0.2 mm² ... 2.5 mm² |
2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 4 mm² |
Nominal current | 41 A | Maximum load current | 57 A (with 10 mm² conductor cross section) |
Nominal voltage | 1000 V | Note | Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. |
Nominal cross section | 6 mm² | Identification | II 2 GD Ex eb IIC Gb |
Operating temperature range | -60 °C ... 110 °C | Ex-certified accessories | 3047028 D-UT 2,5/10
3047167 ATP-UT
1205066 SZS 1,0X4,0 VDE
3022276 CLIPFIX 35-5
3022218 CLIPFIX 35 |
List of bridges | Plug-in bridge / FBS 2-8 / 3030284
Plug-in bridge / FBS 3-8 / 3030297
Plug-in bridge / FBS 4-8 / 3030307
Plug-in bridge / FBS 5-8 / 3030310
Plug-in bridge / FBS 10-8 / 3030323 | Bridge data | 39 A / 6 mm² |
Ex temperature increase | 40 K (44.9 A / 6 mm²) | Rated voltage | 690 V |
for bridging with bridge | 690 V | - At bridging between non-adjacent terminal blocks | 275 V |
- At bridging between non-adjacent terminal blocks via PE terminal block | 176 V | - At cut-to-length bridging with cover | 220 V |
- At cut-to-length bridging with partition plate | 275 V | Rated insulation voltage | 630 V |
output | (Permanent) | Rated current | 40 A |
Maximum load current | 50 A | Contact resistance | 0.2 mΩ |
Torque range | 1.5 Nm ... 1.8 Nm | Nominal cross section | 6 mm² |
Rated cross section AWG | 10 | Connection capacity rigid | 0.2 mm² ... 10 mm² |
Connection capacity AWG | 24 ... 8 | Connection capacity flexible | 0.2 mm² ... 6 mm² |
Connection capacity AWG | 24 ... 10 | 2 conductors with same cross section, solid | 0.2 mm² ... 2.5 mm² |
2 conductors with the same cross-section AWG rigid | 24 ... 14 | 2 conductors with same cross section, stranded | 0.2 mm² ... 2.5 mm² |
2 conductors with the same cross-section AWG flexible | 24 ... 14 | Width | 8.2 mm |
End cover width | 2.2 mm | Height | 47.7 mm |
Depth on NS 35/7,5 | 47.5 mm | Depth on NS 35/15 | 55 mm |
Color | black (RAL 9005) | Flammability rating according to UL 94 | V0 |
Insulating material group | I | Insulating material | PA |
Static insulating material application in cold | -60 °C | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 | Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg |
Surface flammability NFPA 130 (ASTM E 162) | passed | Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
Smoke gas toxicity NFPA 130 (SMP 800C) | passed | Open side panel | Yes |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Connection in acc. with standard | IEC 60947-7-1 | Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
