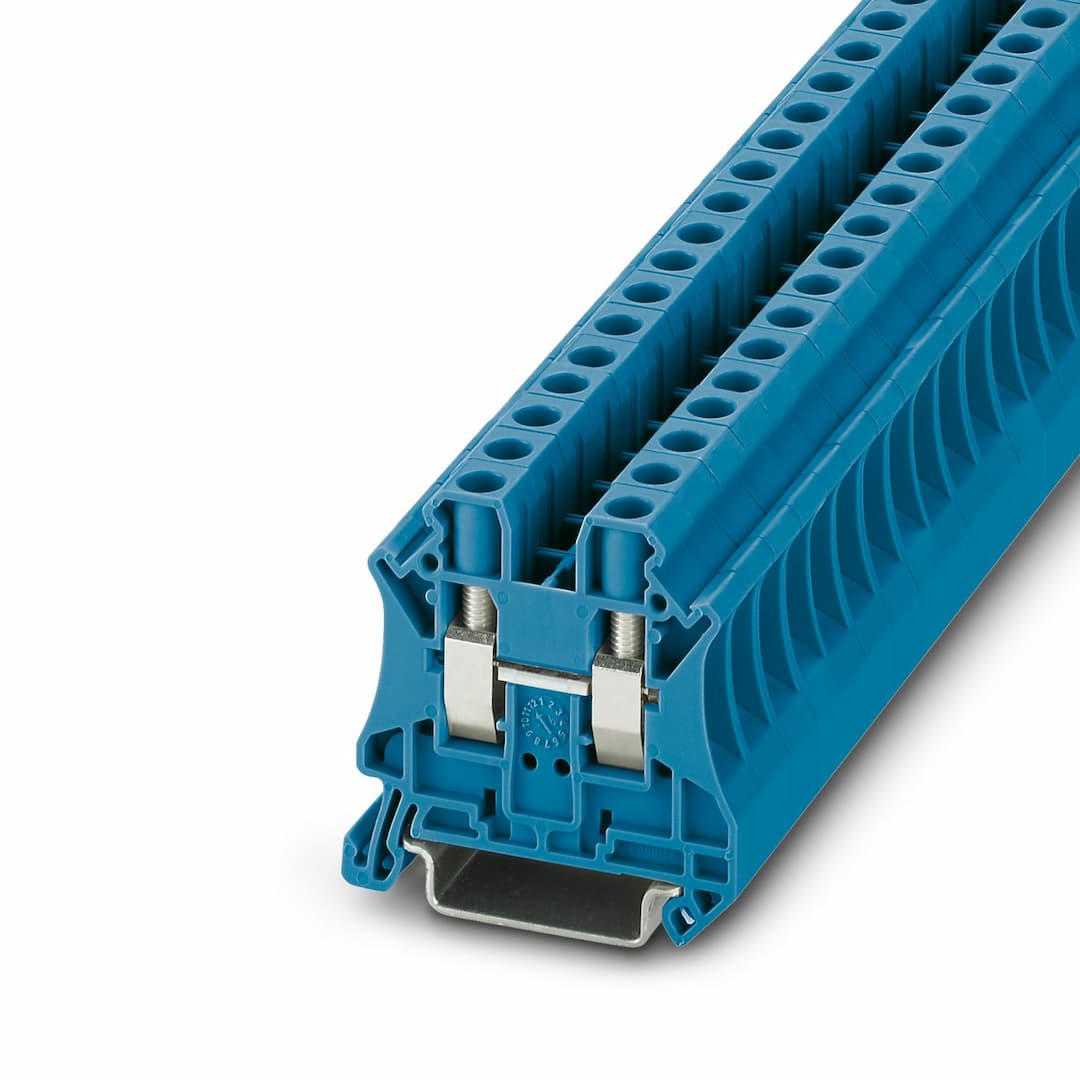

Phoenix Contact UT 6 BU

Selling Points

  • 1High-voltage rating: 1000V
  • 2High current capacity: 57A
  • 3Blue color for easy identification
  • 4Screw terminal connection for secure connections
  • 5Durable and reliable design for long-lasting performance
Product Details
UT 6 BU
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Product type
Feed-through terminal block
Area of application
Railway industry Machine building Plant engineering Process industry
Number of connections
2
Number of rows
1
Potentials
1
Article revision
15
Overvoltage category
III
Degree of pollution
3
Rated surge voltage
8 kV
Maximum power dissipation for nominal condition
1.31 W
Number of connections per level
2
Nominal cross section
6 mm²
Rated cross section AWG
8
Screw thread
M4
Tightening torque
1.5 ... 1.8 Nm
Stripping length
10 mm
Internal cylindrical gage
A5
Connection in acc. with standard
IEC 60947-7-1
Conductor cross section rigid
0.2 mm² ... 10 mm²
Cross section AWG
24 ... 8 (converted acc. to IEC)
Conductor cross section flexible
0.2 mm² ... 10 mm²
Conductor cross section, flexible [AWG]
24 ... 8 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)
0.25 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve)
0.25 mm² ... 6 mm²
2 conductors with same cross section, solid
0.2 mm² ... 2.5 mm²
2 conductors with same cross section, flexible
0.2 mm² ... 2.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve
0.25 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve
0.5 mm² ... 4 mm²
Nominal current
41 A
Maximum load current
57 A (with 10 mm² conductor cross section)
Nominal voltage
1000 V
Note
Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area.
Nominal cross section
6 mm²
Identification
 II 2 GD  Ex eb IIC Gb
Operating temperature range
-60 °C ... 110 °C
Ex-certified accessories
3047028 D-UT 2,5/10 3047167 ATP-UT 1205066 SZS 1,0X4,0 VDE 3022276 CLIPFIX 35-5 3022218 CLIPFIX 35
List of bridges
Plug-in bridge / FBS 2-8 / 3030284 Plug-in bridge / FBS 3-8 / 3030297 Plug-in bridge / FBS 4-8 / 3030307 Plug-in bridge / FBS 5-8 / 3030310 Plug-in bridge / FBS 10-8 / 3030323
Bridge data
39 A / 6 mm²
Ex temperature increase
40 K (44.9 A / 6 mm²)
Rated voltage
690 V
for bridging with bridge
690 V
- At bridging between non-adjacent terminal blocks
275 V
- At bridging between non-adjacent terminal blocks via PE terminal block
176 V
- At cut-to-length bridging with cover
220 V
- At cut-to-length bridging with partition plate
275 V
Rated insulation voltage
630 V
output
(Permanent)
Rated current
40 A
Maximum load current
50 A
Contact resistance
0.2 mΩ
Torque range
1.5 Nm ... 1.8 Nm
Nominal cross section
6 mm²
Rated cross section AWG
10
Connection capacity rigid
0.2 mm² ... 10 mm²
Connection capacity AWG
24 ... 8
Connection capacity flexible
0.2 mm² ... 6 mm²
Connection capacity AWG
24 ... 10
2 conductors with same cross section, solid
0.2 mm² ... 2.5 mm²
2 conductors with the same cross-section AWG rigid
24 ... 14
2 conductors with same cross section, stranded
0.2 mm² ... 2.5 mm²
2 conductors with the same cross-section AWG flexible
24 ... 14
Width
8.2 mm
End cover width
2.2 mm
Height
47.7 mm
Depth
46.9 mm
Depth on NS 35/7,5
47.5 mm
Depth on NS 35/15
55 mm
Color
blue (RAL 5015)
Flammability rating according to UL 94
V0
Insulating material group
I
Insulating material
PA
Static insulating material application in cold
-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))
125 °C
Relative insulation material temperature index (Elec., UL 746 B)
130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26
HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)
27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)
passed
Specific optical density of smoke NFPA 130 (ASTM E 662)
passed
Smoke gas toxicity NFPA 130 (SMP 800C)
passed
Test voltage setpoint
9.8 kV
Result
Test passed
Requirement temperature-rise test
Increase in temperature ≤ 45 K
Result
Test passed
Short-time withstand current 6 mm²
0.72 kA
Short-time withstand current 10 mm²
1.2 kA
Result
Test passed
Test voltage setpoint
2.2 kV
Result
Test passed
Open side panel
Yes
Result
Test passed
DIN rail/fixing support
NS 35
Test force setpoint
5 N
Result
Test passed
Rotation speed
10 rpm
Revolutions
135
Conductor cross section/weight
0.2 mm² / 0.2 kg 6 mm² / 1.4 kg 10 mm² / 2 kg
Result
Test passed
Time of exposure
30 s
Result
Test passed
Specification
DIN EN 50155 (VDE 0115-200):2008-03
Spectrum
Service life test category 1, class B, body mounted
Frequency
f
ASD level
1.857 (m/s²)²/Hz
Acceleration
0.8g
Test duration per axis
5 h
Test directions
X-, Y- and Z-axis
Result
Test passed
Specification
DIN EN 50155 (VDE 0115-200):2008-03
Pulse shape
Half-sine
Acceleration
5g
Shock duration
30 ms
Number of shocks per direction
3
Test directions
X-, Y- and Z-axis (pos. and neg.)
Result
Test passed
Ambient temperature (operation)
-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)
-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)
-5 °C ... 70 °C
Ambient temperature (actuation)
-5 °C ... 70 °C
Permissible humidity (operation)
20 % ... 90 %
Permissible humidity (storage/transport)
30 % ... 70 %
Connection in acc. with standard
IEC 60947-7-1
Mounting type
NS 35/7,5 NS 35/15
