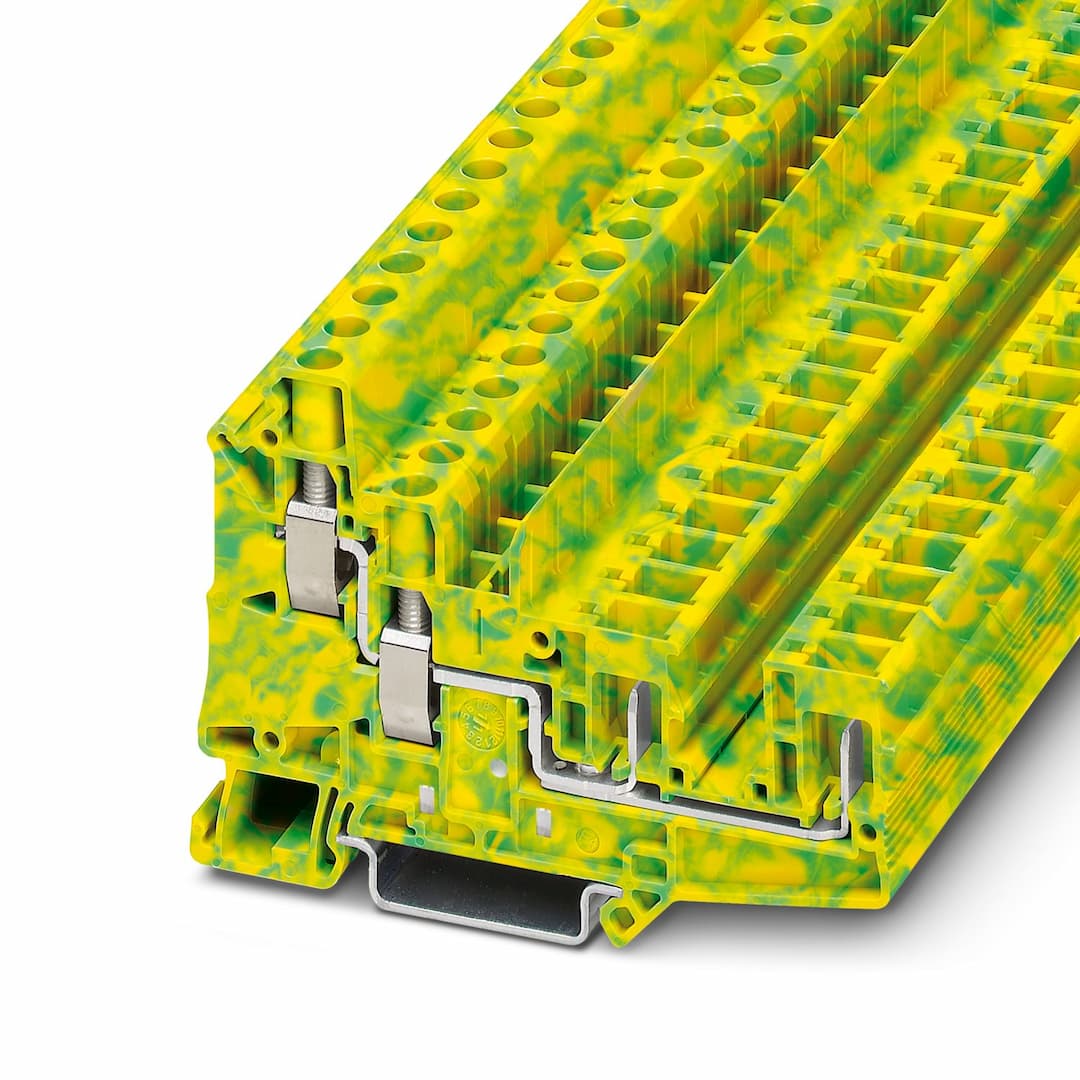

UT 6-QUATTRO/2P-PE Feed-through Terminal Block by Phoenix Contact

Selling Points

1High Power Dissipation: 1.31 W maximum power dissipation for nominal conditions.
2High Load Current: 41 A maximum load current with a 10 mm² conductor cross section.
3Versatile Connections: Screw/plug-in connection method with a conductor cross section range of 0.2 mm² to 10 mm².
4Durable Insulation: Insulating material PA with a flammability rating of UL 94 V0 and a relative insulation material temperature index of 130 °C.
5Comprehensive Safety Features: Meets overvoltage category III and insulating material group I standards, ensuring reliable and safe electrical connections.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
General	The max. load current must not be exceeded by the total current of all connected conductors.	Note	The max. load current must not be exceeded by the total current of all connected conductors. With a free-hanging connection, an insulating foil has to be placed between the plug connection and electrically conductive surfaces.
Product type	Ground terminal block	Number of connections	4
Number of rows	1	Article revision	03
Overvoltage category	III	Degree of pollution	3
Rated surge voltage	6 kV	Maximum power dissipation for nominal condition	1.31 W
Grounding foot	Yes	Number of connections per level	4
Nominal cross section	6 mm²	Rated cross section AWG	8
Screw thread	M4	Note	Please observe the current carrying capacity of the DIN rails.
Tightening torque	1.5 ... 1.8 Nm	Stripping length	10 mm
Internal cylindrical gage	A5	Connection in acc. with standard	IEC 61984
Conductor cross section rigid	0.2 mm² ... 10 mm²	Cross section AWG	24 ... 8 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 10 mm²	Conductor cross section, flexible [AWG]	24 ... 8 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 6 mm²	Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 6 mm²
Width	8.2 mm	End cover width	2.2 mm
Height	86.5 mm	Depth on NS 35/7,5	60 mm
Depth on NS 35/15	67.5 mm	Color	green-yellow
Flammability rating according to UL 94	V0	Insulating material group	I
Insulating material	PA	Static insulating material application in cold	-60 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C	Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3	Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3	Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed	Smoke gas toxicity NFPA 130 (SMP 800C)	passed
Open side panel	Yes	Specification	DIN EN 50155 (VDE 0115-200):2022-06
Spectrum	Service life test category 1, class B, body mounted	Frequency	f
ASD level	0.964 (m/s²)²/Hz	Acceleration	0.58g
Test duration per axis	5 h	Test directions	X-, Y- and Z-axis
Specification	DIN EN 50155 (VDE 0115-200):2022-06	Pulse shape	Half-sine
Acceleration	5g	Shock duration	30 ms
Number of shocks per direction	3	Test directions	X-, Y- and Z-axis (pos. and neg.)
Ambient temperature (operation)	-60 °C (max. operating temperature see derating curve)	Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)	-5 °C ... 70 °C	Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %	Permissible humidity (storage/transport)	30 % ... 70 %
Connection in acc. with standard	IEC 61984	Mounting type	NS 35/7,5 NS 35/15
