Product Model

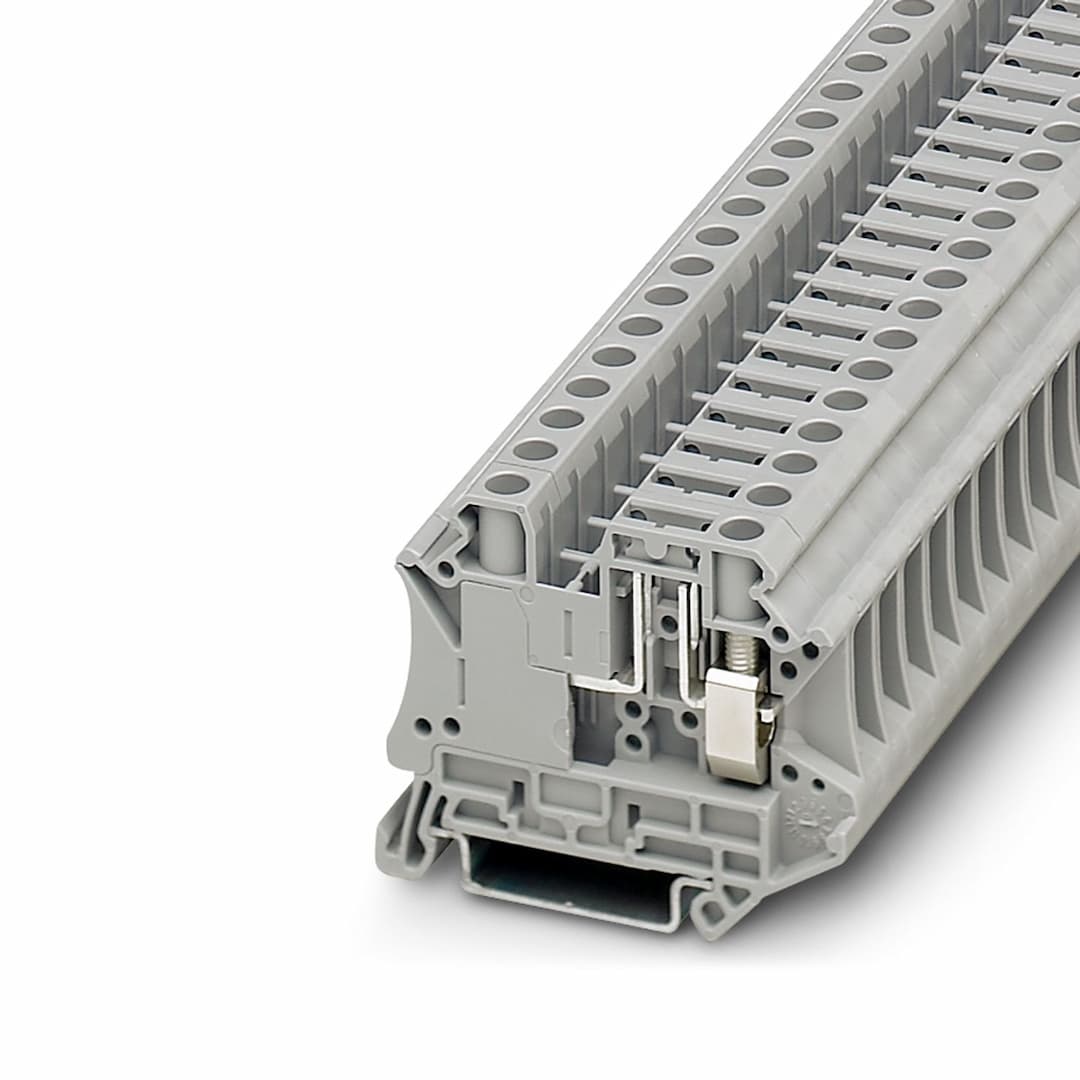

UT 6-TG P/P-EX
Selling Points
- 1Supports up to 20A, ideal for demanding applications.
- 2Compact size with high current carrying capacity.
- 3Suitable for process technology with Ex nA approval.
- 4Accommodates flexible conductors with ferrule without plastic sleeve.
- 5Built with grey color, overvoltage category III, and high insulation characteristics.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
General | Current and voltage are determined by the plug used. | Product type | Disconnect terminal block |
Area of application | Machine building
Plant engineering | Number of connections | 2 |
Number of rows | 1 | Potentials | 1 |
Article revision | 09 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 6 kV |
Maximum power dissipation for nominal condition | 1.31 W | Number of connections per level | 2 |
Nominal cross section | 6 mm² | Screw thread | M4 |
Tightening torque | 1.5 ... 1.8 Nm | Stripping length | 10 mm |
Internal cylindrical gage | A5 | Connection in acc. with standard | IEC 60947-7-1 |
Conductor cross section rigid | 0.2 mm² ... 10 mm² | Cross section AWG | 24 ... 8 (converted acc. to IEC) |
Conductor cross section flexible | 0.2 mm² ... 10 mm² | Conductor cross section, flexible [AWG] | 24 ... 8 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 6 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 6 mm² |
2 conductors with same cross section, solid | 0.2 mm² ... 2.5 mm² | 2 conductors with same cross section, flexible | 0.2 mm² ... 2.5 mm² |
2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 4 mm² |
Nominal current | 20 A | Maximum load current | 20 A (with 10 mm² conductor cross section) |
Nominal voltage | 500 V | Nominal cross section | 2.5 mm² |
Identification | II 3 G Ex ec llC Gc | Operating temperature range | -50 °C ... 130 °C |
Ex-certified accessories | 3047183 ATP-UT-TWIN
3046499 P-FU 6,3X32-EX
3046509 P-FU 6,3X32 LED 24-EX
3046512 P-FU 6,3X32 LED 60-EX
3046525 P-FU 6,3X32 LA 250-EX
3022276 CLIPFIX 35-5
3022218 CLIPFIX 35
1205066 SZS 1,0X4,0 VDE | List of bridges | Plug-in bridge / FBS 2-8 / 3030284
Plug-in bridge / FBS 3-8 / 3030297
Plug-in bridge / FBS 4-8 / 3030307
Plug-in bridge / FBS 5-8 / 3030310
Plug-in bridge / FBS 10-8 / 3030323 |
Bridge data | 6.3 A / 6 mm² | Rated voltage | 250 V |
output | (Permanent) | Rated current | 6.3 A |
Maximum load current | 6.3 A | Torque range | 1.5 Nm ... 1.8 Nm |
Nominal cross section | 6 mm² | Rated cross section AWG | 8 |
Connection capacity rigid | 0.2 mm² ... 10 mm² | Connection capacity AWG | 24 ... 8 |
Connection capacity flexible | 0.2 mm² ... 6 mm² | Connection capacity AWG | 24 ... 8 |
2 conductors with same cross section, solid | 0.2 mm² ... 2.5 mm² | 2 conductors with the same cross-section AWG rigid | 24 ... 12 |
2 conductors with same cross section, stranded | 0.2 mm² ... 2.5 mm² | 2 conductors with the same cross-section AWG flexible | 24 ... 12 |
Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.2 mm² | Conductor cross section flexible, with ferrule without plastic sleeve max. | 6 mm² |
Single conductor/terminal point, flexible, with ferrule, without plastic sleeve, AWG | 24 ... 12 | Width | 8.2 mm |
Height | 57.8 mm | Depth on NS 35/7,5 | 47.5 mm |
Depth on NS 35/15 | 55 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg | Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Open side panel | No | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-1 |
Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
