Product Model

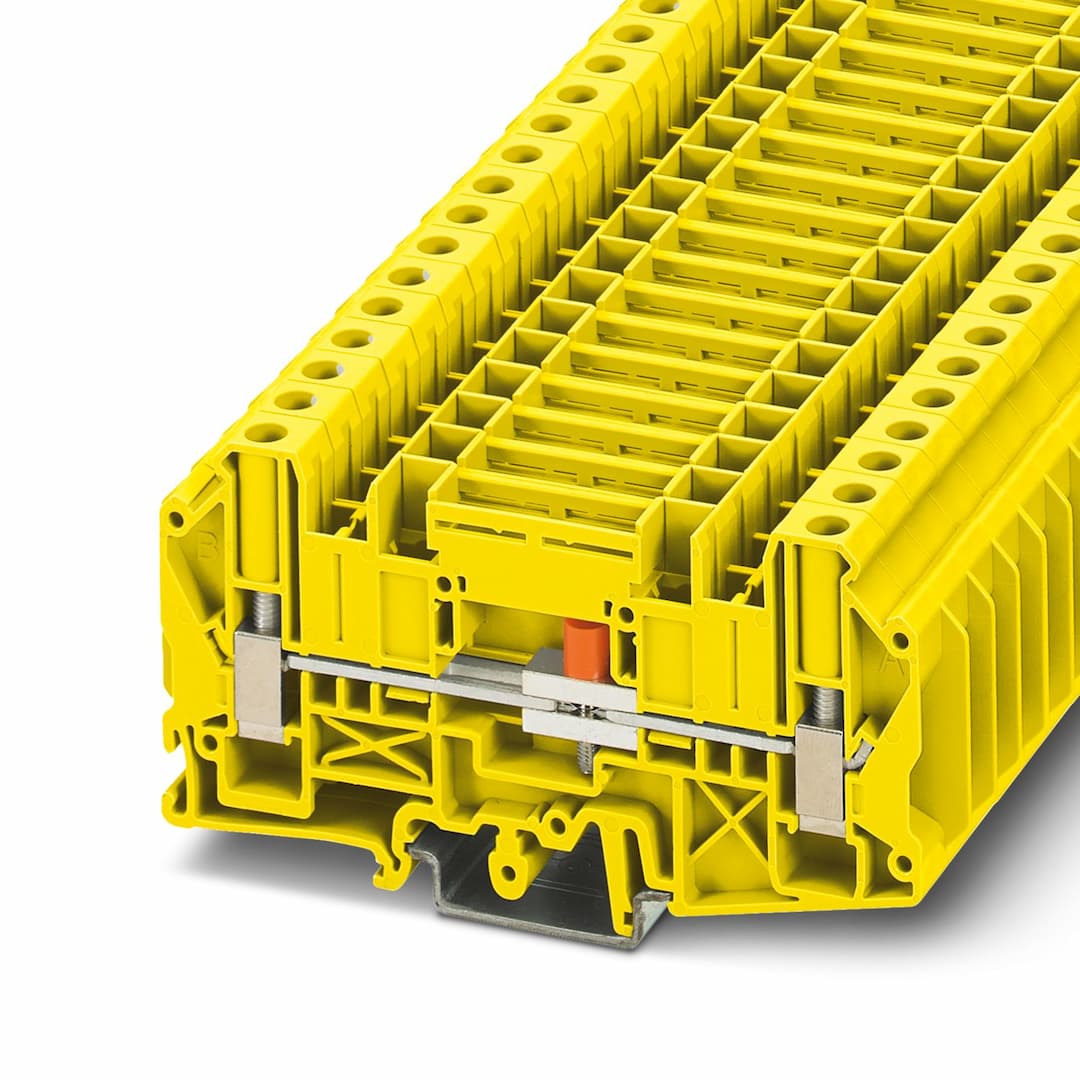

UT 6-T/SP YE
Selling Points
- 1High Current Capacity: Supports up to 41 A nominal current and 50 A maximum load current.
- 2Durable Construction: Made with PA insulating material, ensuring high thermal stability and resistance to environmental factors.
- 3Versatile Connectivity: Compatible with screw connections, accommodating conductor cross sections from 0.2 mm² to 10 mm².
- 4Safety Features: Meets UL 94 V0 flammability rating and DIN EN 50274 shock protection standards.
- 5Wide Operating Range: Operates in ambient temperatures from -60 °C to 85 °C, with humidity tolerance between 30% and 70%.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Disconnect terminal block | Number of connections | 2 |
Number of rows | 1 | Potentials | 1 |
Article revision | 06 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 8 kV |
Maximum power dissipation for nominal condition | 1.31 W | Number of connections per level | 2 |
Nominal cross section | 6 mm² | Screw thread | M4 |
Tightening torque | 1.5 ... 1.8 Nm | Stripping length | 12 mm |
Connection in acc. with standard | IEC 60947-7-1 | Conductor cross section rigid | 0.2 mm² ... 10 mm² |
Cross section AWG | 24 ... 8 (converted acc. to IEC) | Conductor cross section flexible | 0.2 mm² ... 10 mm² |
Conductor cross section, flexible [AWG] | 24 ... 8 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 6 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 6 mm² | Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve) | 0.25 mm² ... 4 mm² |
2 conductors with same cross section, solid | 0.2 mm² ... 2.5 mm² | 2 conductors with same cross section, flexible | 0.2 mm² ... 2.5 mm² |
2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² | Nominal current | 41 A |
Maximum load current | 50 A (with 10 mm² conductor cross section) | Nominal voltage | 1000 V (The accessories used may reduce the voltage.) |
Nominal cross section | 6 mm² | Width | 8.2 mm |
End cover width | 2.2 mm | Height | 105.2 mm |
Depth on NS 32 | 58 mm | Depth on NS 35/7,5 | 53 mm |
Depth on NS 35/15 | 60.5 mm | Color | yellow (RAL 1018) |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg | Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Open side panel | Yes | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-1 |
Mounting type | NS 35/7,5
NS 35/15
NS 32 |
Specifications may be subject to change without notice
