Product Model

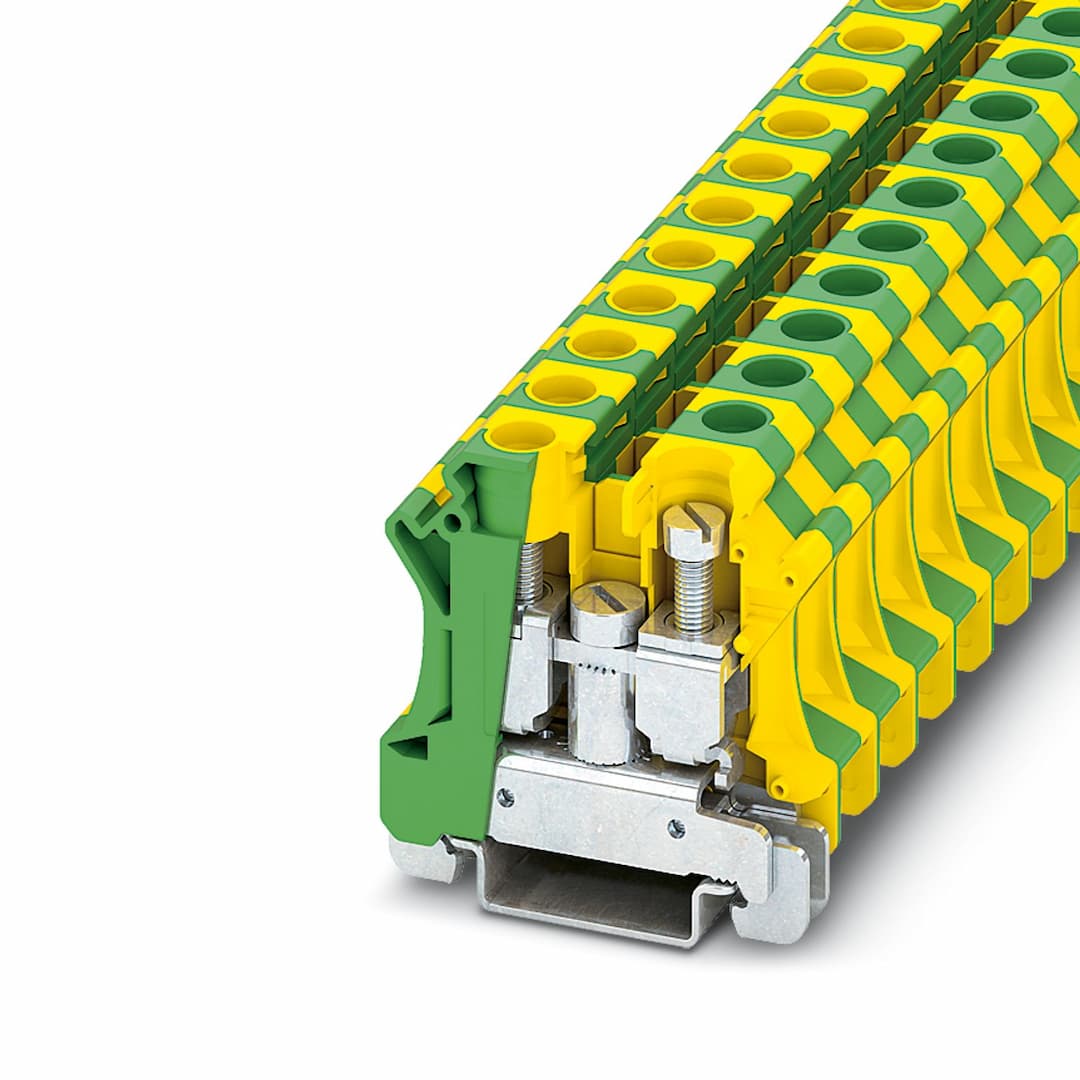

UTI 16-PE
Selling Points
- 1Insulated Ground Block for Secure Electrical Connections
- 2Screw Connection for Easy Installation
- 3Compatible with 4-16AWG Wires
- 4Durable and Reliable Design
- 5Perfect for Industrial and Commercial Applications
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Ground terminal block | Number of positions | 1 |
Number of connections | 2 | Number of rows | 1 |
Article revision | 03 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 6 kV |
Maximum power dissipation for nominal condition | 2.43 W | Grounding foot | Yes |
Number of connections per level | 2 | Nominal cross section | 16 mm² |
Screw thread | M5 | Note | Please observe the current carrying capacity of the DIN rails. |
Tightening torque | 2.5 ... 3 Nm | Stripping length | 12 mm |
Connection in acc. with standard | IEC 60947-7-2 | Conductor cross section rigid | 6 mm² ... 25 mm² |
Cross section AWG | 8 ... 4 (converted acc. to IEC) | Conductor cross section flexible | 6 mm² ... 16 mm² |
Conductor cross section, flexible [AWG] | 8 ... 6 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 6 mm² ... 16 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 6 mm² ... 16 mm² | Nominal cross section | 16 mm² |
Width | 12.2 mm | Height | 51 mm |
Depth | 49.9 mm | Depth on NS 35/7,5 | 50.5 mm |
Depth on NS 35/15 | 58 mm | Color | green-yellow |
Flammability rating according to UL 94 | V2 | Insulating material group | I |
Insulating material | PA | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 115 °C |
Relative insulation material temperature index (Elec., UL 746 B) | 125 °C | Terminal block mounting | 1.5 Nm ... 1.8 Nm (PE foot with mounting screw, M4) |
Open side panel | No | Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
Spectrum | Service life test category 1, class B, body mounted | Frequency | f |
ASD level | 0.02g²/Hz | Acceleration | 0.8g |
Test duration per axis | 5 h | Test directions | X-, Y- and Z-axis |
Result | Test passed | Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
Pulse shape | Half-sine | Acceleration | 5g |
Shock duration | 30 ms | Number of shocks per direction | 3 |
Test directions | X-, Y- and Z-axis (pos. and neg.) | Result | Test passed |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Connection in acc. with standard | IEC 60947-7-2 | Mounting type | NS 35/7,5
NS 35/15 |
Terminal block mounting | 1.5 Nm ... 1.8 Nm (PE foot with mounting screw, M4) |
