Product Model

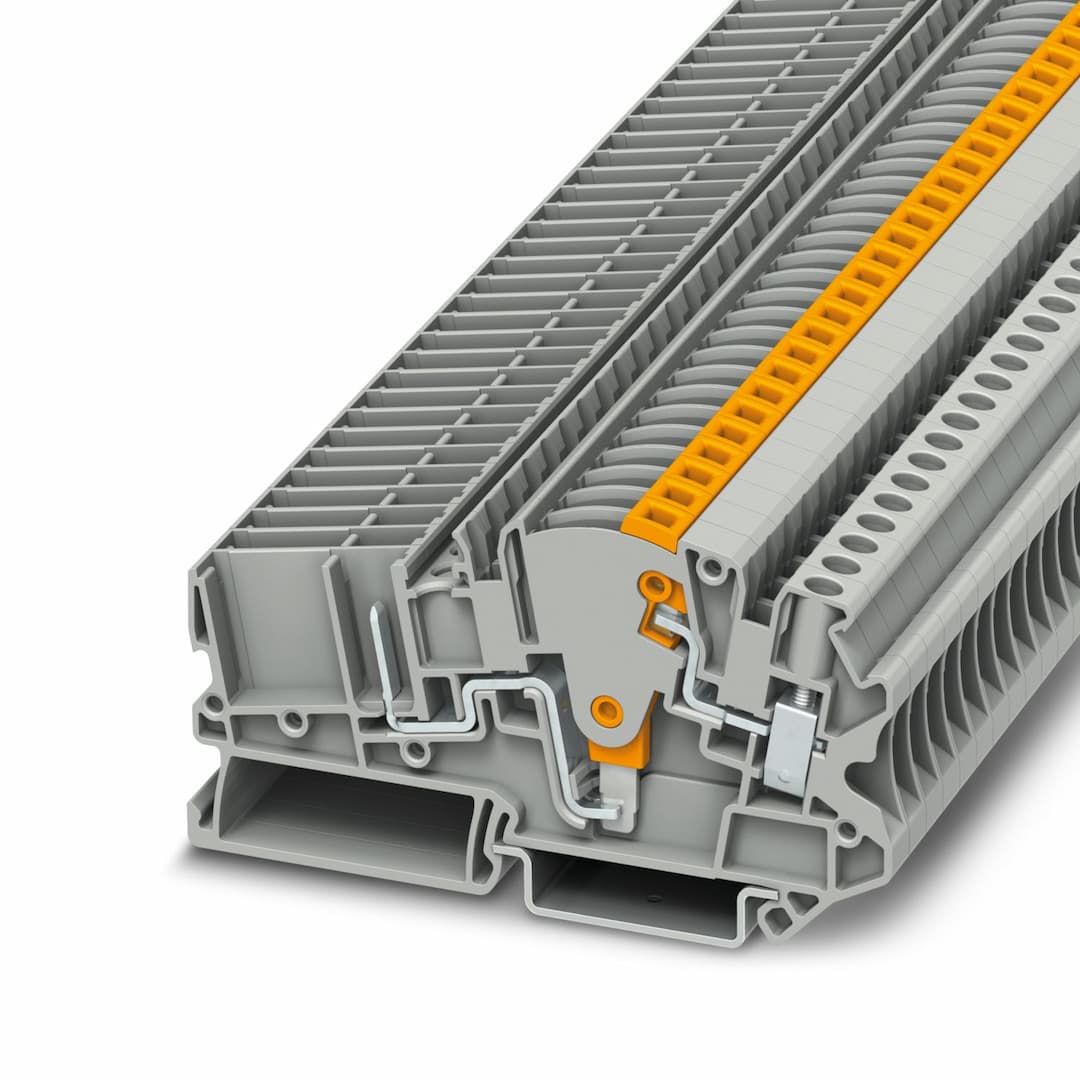

UTME 4-CT/1P
Selling Points
- 1High Performance: Designed for demanding applications with a maximum load current of 28A.
- 2V0 Inflammability Rating: Meets UL 94 V0 standards for safety in harsh environments.
- 3Screw/Plug-In Connection: Easy to install with screw/plug-in connection method.
- 4Gray Insulating Material: Made from durable PA insulating material in gray color.
- 5Wide Temperature Range: Operates from -60°C to 85°C, ensuring reliability in various conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | With a free-hanging connection, an insulating foil has to be placed between the plug connection and electrically conductive surfaces. | Product type | Test disconnect terminal block |
Number of connections | 2 | Number of rows | 1 |
Article revision | 07 | Overvoltage category | III |
Rated surge voltage | 6 kV | Number of connections per level | 2 |
Nominal cross section | 4 mm² | Screw thread | M3 |
Tightening torque | 0.6 ... 0.8 Nm | Stripping length | 9 mm |
Internal cylindrical gage | A4 | Connection in acc. with standard | IEC 60947-7-1 |
Conductor cross section rigid | 0.14 mm² ... 6 mm² | Cross section AWG | 26 ... 10 (converted acc. to IEC) |
Conductor cross section flexible | 0.14 mm² ... 6 mm² | Conductor cross section, flexible [AWG] | 26 ... 10 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 4 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 4 mm² |
2 conductors with same cross section, solid | 0.14 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible | 0.14 mm² ... 1.5 mm² |
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² | Nominal current | 28 A |
Maximum load current | 28 A (bei 6 mm² Leiterquerschnitt starr) | Nominal voltage | 500 V |
Nominal cross section | 4 mm² | Width | 6.2 mm |
End cover width | 2.2 mm | Height | 86.5 mm |
Depth on NS 35/7,5 | 49.5 mm | Depth on NS 35/15 | 57 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 |
Insulating material group | I | Insulating material | PA |
Static insulating material application in cold | -60 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Surface flammability NFPA 130 (ASTM E 162) | passed | Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
Smoke gas toxicity NFPA 130 (SMP 800C) | passed | Test voltage setpoint | 7.3 kV |
Result | Test passed | Short-time withstand current 4 mm² | 1.25 kA |
Result | Test passed | Test voltage setpoint | 1.89 kV |
Result | Test passed | Open side panel | Yes |
Result | Test passed | Insertion/withdrawal cycles | 100 |
Time of exposure | 30 s | Result | Test passed |
Specification | DIN EN 50155 (VDE 0115-200):2022-06 | Spectrum | Service life test category 1, class B, body mounted |
Frequency | f | ASD level | 0.964 (m/s²)²/Hz |
Acceleration | 0.58g | Test duration per axis | 5 h |
Test directions | X-, Y- and Z-axis | Specification | DIN EN 50155 (VDE 0115-200):2022-06 |
Pulse shape | Half-sine | Acceleration | 5g |
Shock duration | 30 ms | Number of shocks per direction | 3 |
Test directions | X-, Y- and Z-axis (pos. and neg.) | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-1 |
Mounting type | NS 35/7,5
NS 35/15 | Assembly note | For isolation purposes, the screw head in NS 35/7,5 DIN rails may not exceed a height of 5 mm including the washer. |
Specifications may be subject to change without notice
