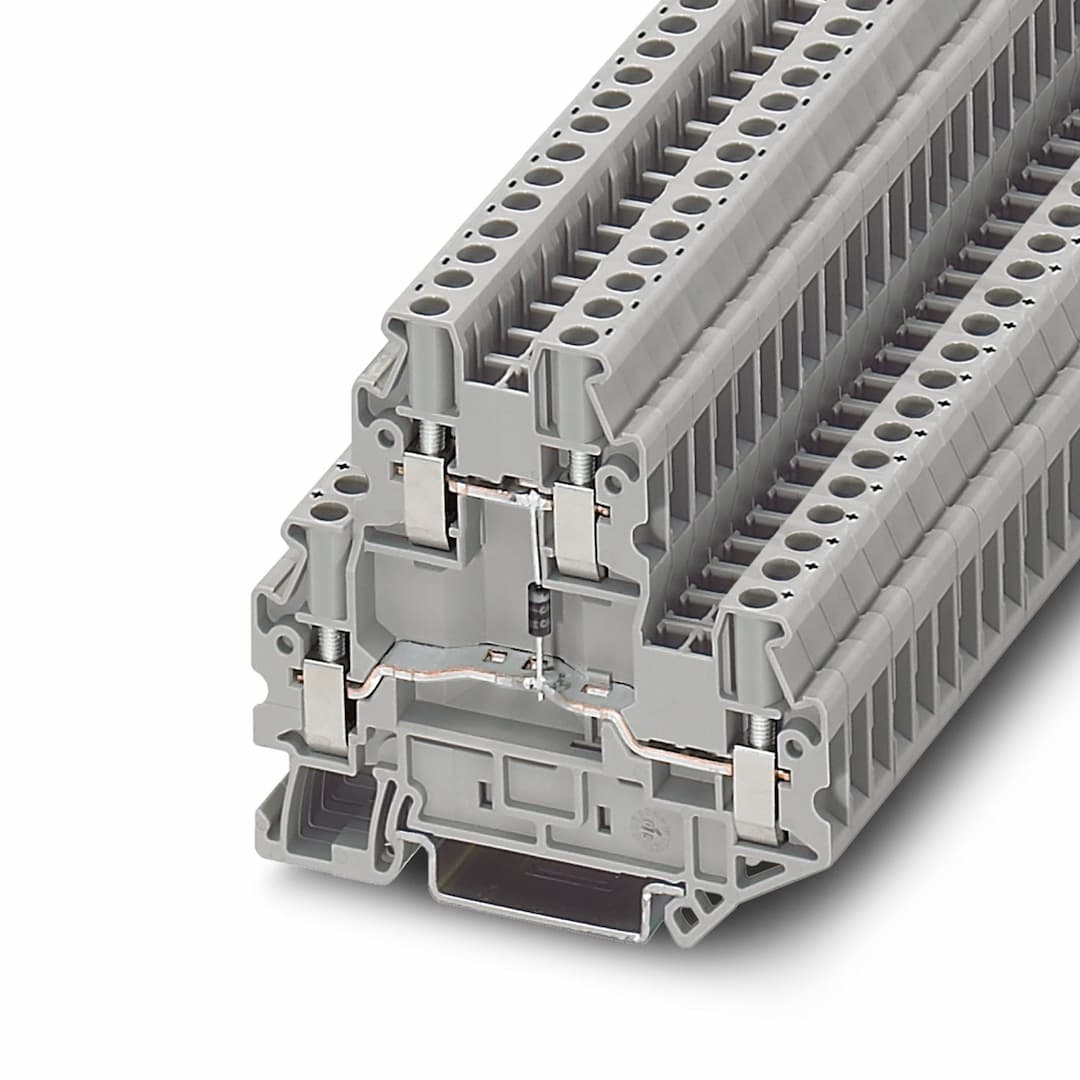

Product Model
UTTB 2,5-DIO/U-O
Selling Points
- 1500V for reliable operation in demanding environments.
- 228A, suitable for heavy-duty applications.
- 3Compatible with 12-26AWG, accommodating various wire sizes.
- 4Allows for efficient and organized wiring in compact spaces.
- 5Made from high-quality materials with excellent mechanical stability and insulation properties.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
General | The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A. | Product type | Component terminal block |
Number of connections | 4 | Number of rows | 2 |
Potentials | 2 | Article revision | 10 |
Overvoltage category | III | Degree of pollution | 3 |
Rated insulation voltage | 500 V | Rated surge voltage | 6 kV |
Number of connections per level | 2 | Nominal cross section | 2.5 mm² |
Screw thread | M3 | Tightening torque | 0.5 ... 0.6 Nm |
Stripping length | 9 mm | Internal cylindrical gage | A3 |
Conductor cross section rigid | 0.14 mm² ... 4 mm² | Cross section AWG | 26 ... 12 (converted acc. to IEC) |
Conductor cross section flexible | 0.14 mm² ... 4 mm² | Conductor cross section, flexible [AWG] | 26 ... 12 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 2.5 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 2.5 mm² |
2 conductors with same cross section, solid | 0.14 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible | 0.14 mm² ... 1.5 mm² |
2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.14 mm² ... 1.5 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1.5 mm² |
Nominal current | 0.5 A | Maximum load current | 0.5 A |
Nominal cross section | 2.5 mm² | Component type | Diode 1N4007 |
Reverse voltage | 1300 V | Width | 5.2 mm |
End cover width | 2.2 mm | Height | 69.9 mm |
Depth | 64.4 mm | Depth on NS 35/7,5 | 65 mm |
Depth on NS 35/15 | 72.5 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 | Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Test voltage setpoint | 7.3 kV | Result | Test passed |
Test voltage setpoint | 1.89 kV | Result | Test passed |
Open side panel | Yes | Result | Test passed |
Result | Test passed | Specification | DIN EN 50155 (VDE 0115-200):2022-06 |
Spectrum | Service life test category 2, bogie-mounted | Frequency | f |
ASD level | 6.12 (m/s²)²/Hz | Acceleration | 3.12g |
Test duration per axis | 5 h | Test directions | X-, Y- and Z-axis |
Result | Test passed | Specification | DIN EN 50155 (VDE 0115-200):2022-06 |
Pulse shape | Half-sine | Acceleration | 30g |
Shock duration | 18 ms | Number of shocks per direction | 3 |
Test directions | X-, Y- and Z-axis (pos. and neg.) | Result | Test passed |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
