Selling Points
- 1Supports up to 800V for demanding applications.
- 2Measuring 69.9 x 6.2 x 65 mm, ideal for space-constrained installations.
- 3Easy to install with M3 screw connection for secure wiring.
- 4Two function shafts per level for efficient potential distribution.
- 5Meets rigorous safety standards for industrial use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

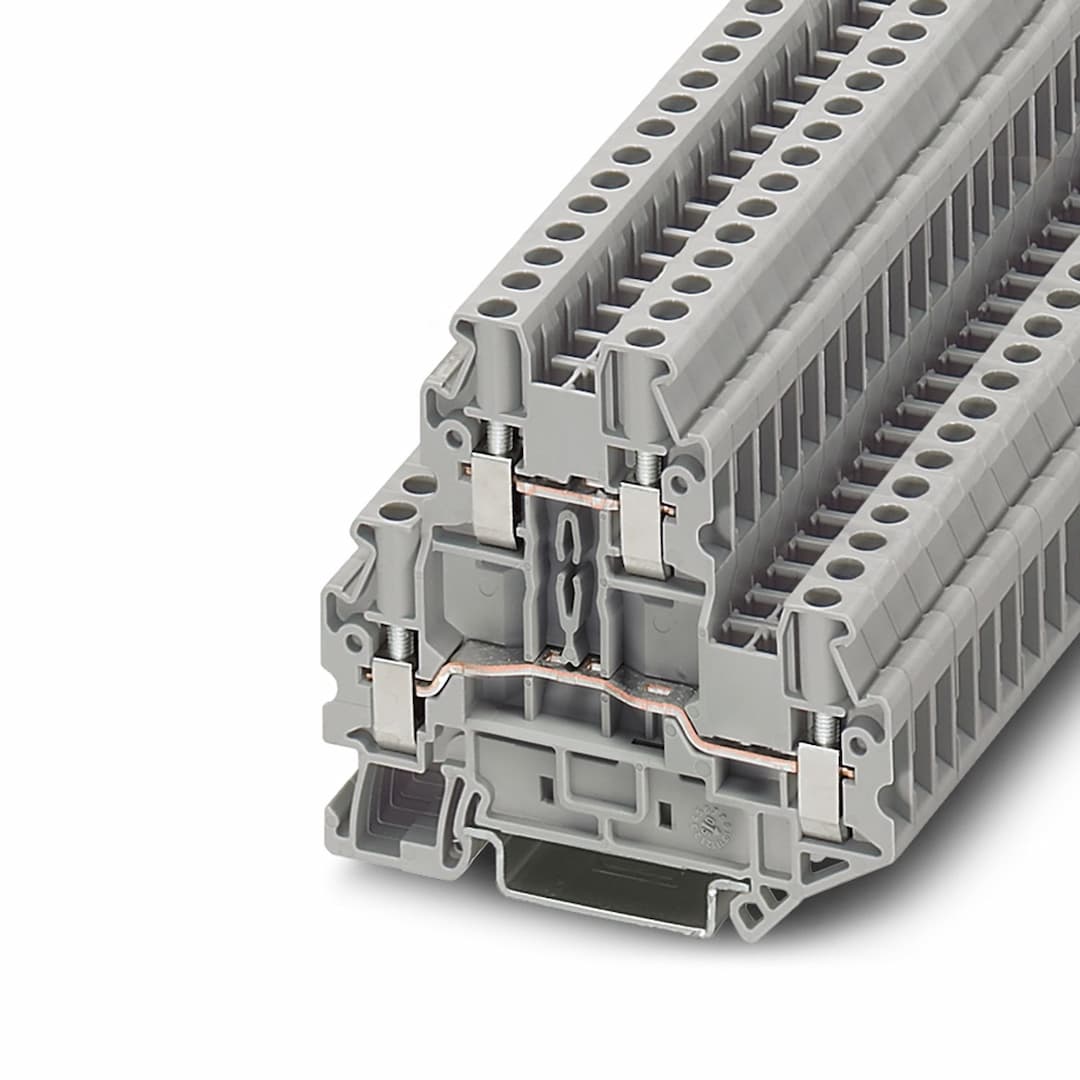

Product type | Multi-level terminal block | Area of application | Railway industry
Machine building
Plant engineering
Process industry |
Number of connections | 4 | Number of rows | 2 |
Potentials | 2 | Article revision | 06 |
Overvoltage category | III | Degree of pollution | 3 |
Rated surge voltage | 8 kV | Maximum power dissipation for nominal condition | 1.02 W |
Number of connections per level | 2 | Nominal cross section | 4 mm² |
Screw thread | M3 | Tightening torque | 0.6 ... 0.8 Nm |
Stripping length | 9 mm | Internal cylindrical gage | A4 |
Connection in acc. with standard | IEC 60947-7-1 | Conductor cross section rigid | 0.14 mm² ... 6 mm² |
Cross section AWG | 26 ... 10 (converted acc. to IEC) | Conductor cross section flexible | 0.14 mm² ... 6 mm² |
Conductor cross section, flexible [AWG] | 26 ... 10 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 4 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 4 mm² | 2 conductors with same cross section, solid | 0.14 mm² ... 1.5 mm² |
2 conductors with same cross section, flexible | 0.14 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.14 mm² ... 1.5 mm² |
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² | Nominal current | 30 A |
Maximum load current | 36 A (with 6 mm² conductor cross section) | Nominal voltage | 800 V |
Nominal cross section | 4 mm² | Identification | II 2 GD Ex eb IIC Gb |
Operating temperature range | -60 °C ... 110 °C | Ex-certified accessories | 3047293 D-UTTB 2,5/4
3047303 DP-UTTB 2,5/4
3047316 ATP-UTTB 2,5/4
1212587 SF-SL 0,6X3,5-100 S-VDE
3022276 CLIPFIX 35-5
3022218 CLIPFIX 35 |
List of bridges | Plug-in bridge / FBS 2-6 / 3030336
Plug-in bridge / FBS 3-6 / 3030242
Plug-in bridge / FBS 4-6 / 3030255
Plug-in bridge / FBS 5-6 / 3030349
Plug-in bridge / FBS 10-6 / 3030271
Plug-in bridge / FBS 20-6 / 3030365 | Bridge data | 25.5 A / 4 mm² |
Ex temperature increase | 40 K (28.5 A / 4 mm²) | Rated voltage | 440 V |
for bridging with bridge | 440 V | - At bridging between non-adjacent terminal blocks | 275 V |
- At bridging between non-adjacent terminal blocks via PE terminal block | 275 V | - At cut-to-length bridging with cover | 220 V |
- At cut-to-length bridging with partition plate | 176 V | Rated insulation voltage | 400 V |
output | (Permanent) | Rated current | 25.5 A |
Maximum load current | 31.5 A | Torque range | 0.6 Nm ... 0.8 Nm |
Nominal cross section | 4 mm² | Rated cross section AWG | 12 |
Connection capacity rigid | 0.14 mm² ... 6 mm² | Connection capacity AWG | 26 ... 10 |
Connection capacity flexible | 0.14 mm² ... 4 mm² | Connection capacity AWG | 26 ... 12 |
2 conductors with same cross section, solid | 0.14 mm² ... 1.5 mm² | 2 conductors with the same cross-section AWG rigid | 26 ... 16 |
2 conductors with same cross section, stranded | 0.14 mm² ... 1.5 mm² | 2 conductors with the same cross-section AWG flexible | 26 ... 16 |
output | (Permanent) | Contact resistance | 0.35 mΩ |
output | (Permanent) | Contact resistance | 0.2 mΩ |
Width | 6.2 mm | End cover width | 2.2 mm |
Height | 69.9 mm | Depth on NS 35/7,5 | 65 mm |
Depth on NS 35/15 | 72.5 mm | Color | orange (RAL 2003) |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 | Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Result | Test passed | Requirement temperature-rise test | Increase in temperature ≤ 45 K |
Result | Test passed
Test passed | Short-time withstand current 4 mm² | 0.48 kA |
Result | Test passed | Test voltage setpoint | 2 kV |
Result | Test passed | Open side panel | Yes |
Result | Test passed | DIN rail/fixing support | NS 35 |
Test force setpoint | 1 N | Result | Test passed |
Rotation speed | 10 rpm | Revolutions | 135 |
Conductor cross section/weight | 0.14 mm² / 0.2 kg
4 mm² / 0.9 kg
6 mm² / 1.4 kg | Result | Test passed |
Time of exposure | 30 s | Result | Test passed |
Specification | DIN EN 50155 (VDE 0115-200):2018-05 | Spectrum | Service life test category 2, bogie-mounted |
Frequency | f | ASD level | 6.12 (m/s²)²/Hz |
Acceleration | 3.12g | Test duration per axis | 5 h |
Test directions | X-, Y- and Z-axis | Specification | DIN EN 50155 (VDE 0115-200):2008-03 |
Pulse shape | Half-sine | Acceleration | 30g |
Shock duration | 18 ms | Number of shocks per direction | 3 |
Test directions | X-, Y- and Z-axis (pos. and neg.) | Result | Test passed |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Connection in acc. with standard | IEC 60947-7-1 | Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
