Selling Points
- 1High Voltage and Current Rating: Supports up to 800V and 30A, ideal for demanding industrial applications.
- 2Easy Connectivity: Screw connection method ensures quick and secure wiring.
- 3Robust Insulation: Polyamide insulator with high insulation properties, including UL94V-0 flammability rating.
- 4Flexible Wiring Range: Accepts wire sizes from 26 to 10AWG, offering versatility in terminal block configurations.
- 5Compact Design: Two function shafts per level enable efficient distribution tasks and clear labeling options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

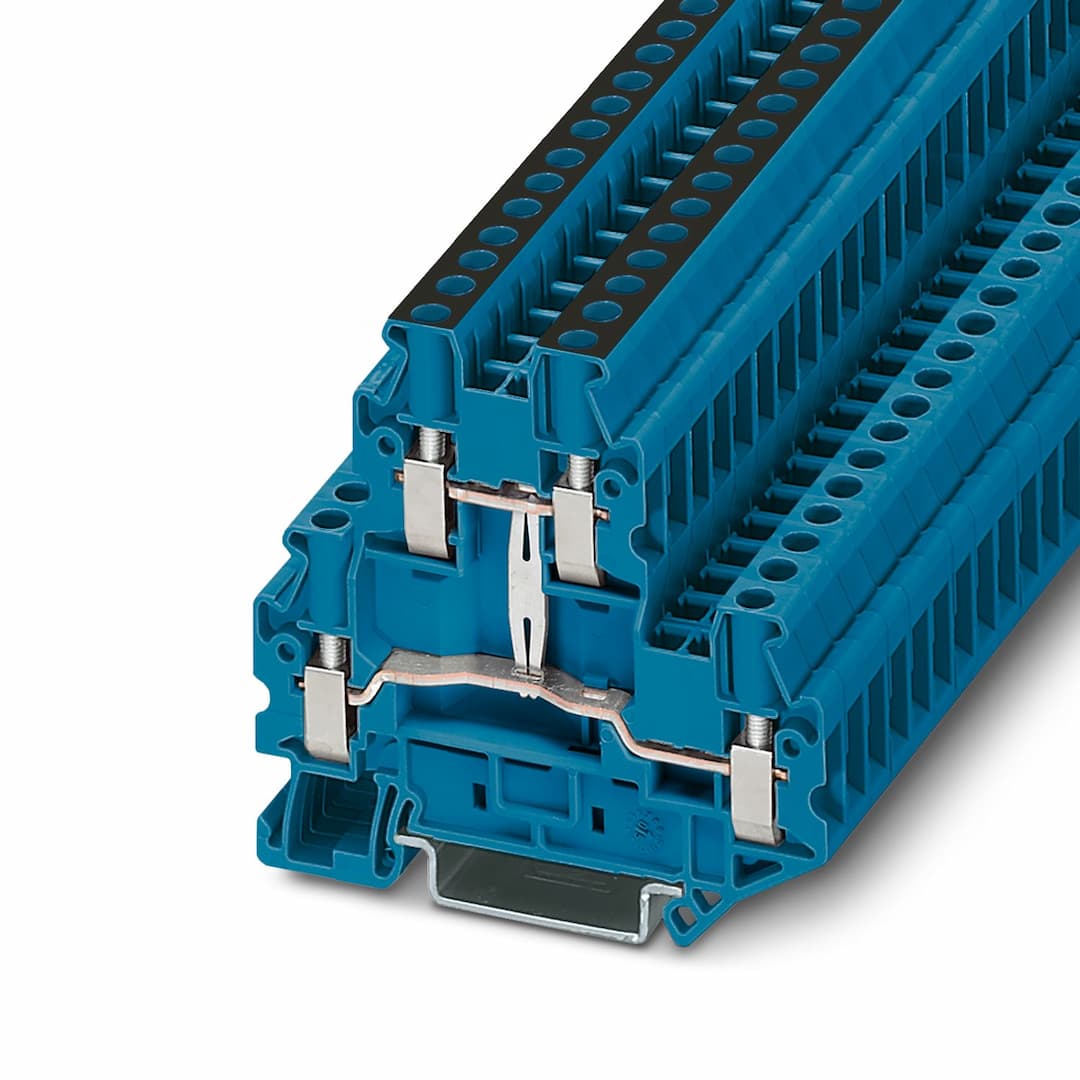

Product type | Multi-level terminal block | Number of connections | 4 |
Number of rows | 2 | Potentials | 1 |
Article revision | 10 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 8 kV |
Maximum power dissipation for nominal condition | 1.02 W | Number of connections per level | 2 |
Nominal cross section | 4 mm² | Screw thread | M3 |
Tightening torque | 0.6 ... 0.8 Nm | Stripping length | 9 mm |
Internal cylindrical gage | A4 | Connection in acc. with standard | IEC 60947-7-1 |
Conductor cross section rigid | 0.14 mm² ... 6 mm² | Cross section AWG | 26 ... 10 (converted acc. to IEC) |
Conductor cross section flexible | 0.14 mm² ... 6 mm² | Conductor cross section, flexible [AWG] | 26 ... 10 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 4 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 4 mm² |
2 conductors with same cross section, solid | 0.14 mm² ... 1.5 mm² | 2 conductors with same cross section, flexible | 0.14 mm² ... 1.5 mm² |
2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.14 mm² ... 1.5 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² |
Nominal current | 30 A | Maximum load current | 36 A (with 6 mm² conductor cross section) |
Nominal voltage | 800 V | Nominal cross section | 4 mm² |
Identification | II 2 GD Ex eb IIC Gb | Operating temperature range | -60 °C ... 110 °C |
Ex-certified accessories | 3047293 D-UTTB 2,5/4
3047303 DP-UTTB 2,5/4
3047316 ATP-UTTB 2,5/4
1212587 SF-SL 0,6X3,5-100 S-VDE
3022276 CLIPFIX 35-5
3022218 CLIPFIX 35 | List of bridges | Plug-in bridge / FBS 2-6 / 3030336
Plug-in bridge / FBS 3-6 / 3030242
Plug-in bridge / FBS 4-6 / 3030255
Plug-in bridge / FBS 5-6 / 3030349
Plug-in bridge / FBS 10-6 / 3030271
Plug-in bridge / FBS 20-6 / 3030365 |
Bridge data | 25.5 A / 4 mm² | Ex temperature increase | 40 K (32.8 A / 4 mm²) |
Rated voltage | 440 V | for bridging with bridge | 440 V |
- At bridging between non-adjacent terminal blocks | 275 V | - At bridging between non-adjacent terminal blocks via PE terminal block | 275 V |
- At cut-to-length bridging with cover | 220 V | - At cut-to-length bridging with partition plate | 176 V |
Rated insulation voltage | 400 V | output | (Permanent) |
Rated current | 29.5 A | Maximum load current | 33.5 A |
Torque range | 0.6 Nm ... 0.8 Nm | Nominal cross section | 4 mm² |
Rated cross section AWG | 12 | Connection capacity rigid | 0.14 mm² ... 6 mm² |
Connection capacity AWG | 26 ... 10 | Connection capacity flexible | 0.14 mm² ... 4 mm² |
Connection capacity AWG | 26 ... 12 | 2 conductors with same cross section, solid | 0.14 mm² ... 1.5 mm² |
2 conductors with the same cross-section AWG rigid | 26 ... 16 | 2 conductors with same cross section, stranded | 0.14 mm² ... 1.5 mm² |
2 conductors with the same cross-section AWG flexible | 26 ... 16 | output | (Permanent) |
Contact resistance | 0.35 mΩ | output | (Permanent) |
Contact resistance | 0.2 mΩ | output | (Permanent) |
Contact resistance | 0.5 mΩ | Width | 6.2 mm |
End cover width | 2.2 mm | Height | 69.9 mm |
Depth on NS 35/7,5 | 65 mm | Depth on NS 35/15 | 72.5 mm |
Color | blue (RAL 5015) | Flammability rating according to UL 94 | V0 |
Insulating material group | I | Insulating material | PA |
Static insulating material application in cold | -60 °C | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 | Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
Surface flammability NFPA 130 (ASTM E 162) | passed | Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
Smoke gas toxicity NFPA 130 (SMP 800C) | passed | Open side panel | Yes |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Connection in acc. with standard | IEC 60947-7-1 | Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
