Product Model
140G-H-RVM12B
Selling Points
- 11. High-Interrupting Ratings: The 140G-H-RVM12B offers high interrupting ratings from 18 to 100 kA, ensuring reliable protection against short circuits and overloads.;
- 22. Global Compatibility: Certified for global use with UL, CSA, CCC, and IEC standards, this circuit breaker is suitable for various international applications.;
- 33. Customizable Trip Units: The 140G series provides greater customization in trip units, allowing you to tailor the breaker to your specific needs.;

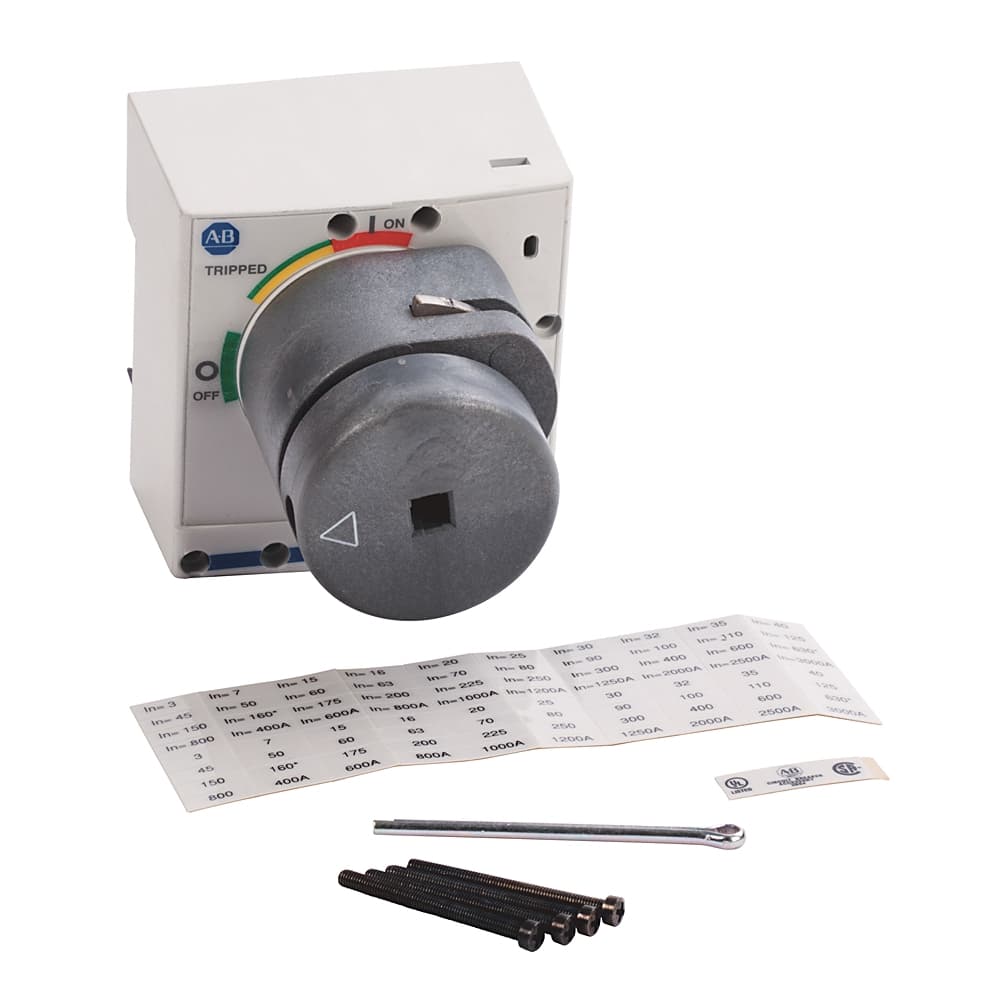

- 44. Rotary Handle with Variable Depth: The external black handle with a 12-inch shaft length offers variable depth operation, making it easy to use in different panel configurations.;
- 55. Comprehensive Accessories: The 140G-H-RVM12B comes with a wide range of accessories, including terminal covers and cable terminal lugs, to ensure easy installation and maintenance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Weight | 0.803 | Stock Status | STOCKED |
Dimension Length | 34.925 | Dimension Width | 11.684 |
Lead Time | 5 | Dimension Height | 13.335 |
Quick Turnaround | false | Preferred Availability | true |
Repairable | NOT_REPAIRABLE | Suitable for power circuit breaker | Yes |
With key lock | No | With extension shaft | Yes |
Padlock locking | Yes | Suitable for emergency stop | No |
Handle type | Rotary handle | Frame size | H frame |
Shaft length | 12 in | Colour | Black |
Specifications may be subject to change without notice
