Product Model

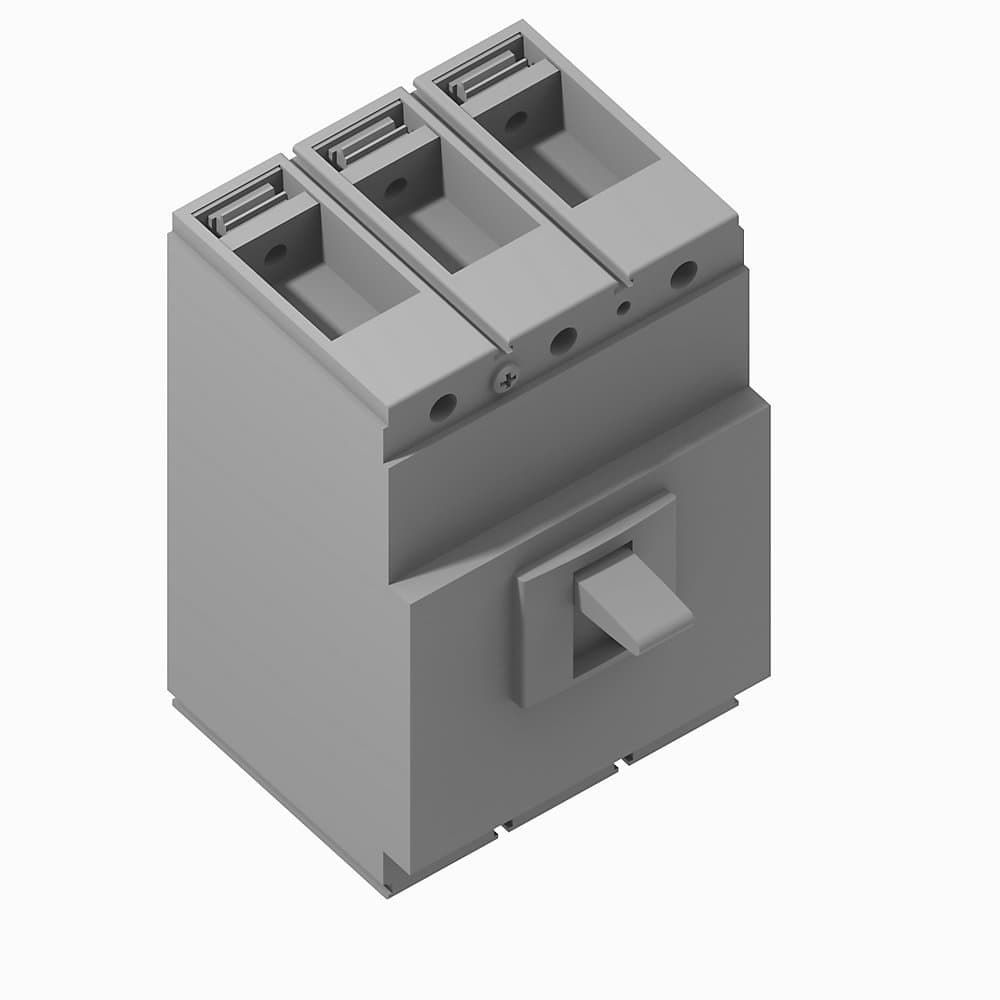

140G-JC6I3-D15-KJ
Selling Points
- 11. High Interrupting Capacity: The 140G-JC6I3-D15-KJ boasts an impressive interrupting rating of 65kA at 480V AC, ensuring reliable protection against short circuits.;
- 22. Electronic LSIG Protection: Equipped with electronic LSIG (long and short time) protection, this circuit breaker offers high instantaneous and ground fault protection.;
- 33. Versatile Application: Suitable for a wide range of industrial applications, including those requiring 3-pole configurations up to 250A.;
- 44. Compact Design: With dimensions of 160mm height, 105mm width, and 82.5mm depth, this circuit breaker fits seamlessly into various panel configurations.;
- 55. Certifications and Compliance: Meets international standards including UL 489, CSA C22.2 No. 5, and IEC 60947-2, ensuring global application compatibility and safety compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Stock Status | NON_STOCKED | Dimension Length | 0.0 |
Dimension Width | 0.0 | Lead Time | 15 |
Dimension Height | 0.0 | Quick Turnaround | false |
Preferred Availability | false | Repairable | NOT_REPAIRABLE |
Ambient temperature without derating | 104 °F | Rated uninterrupted current (Iu) | 98% @ 3000 metre (9840 ft) altitude |
Operational voltage (Ue) | 90% @ 3000 metre (9840 ft) altitude | Wire temperature rating | Al or Cu 75 °C |
Storage temperature | -40 °F | Depth | 82.5 mm |
Width | 105 mm | Device construction | Built-in device fixed built-in technique |
Height | 160 mm | Factory option | 1 NO/NC auxiliary, 24V AC/DC |
Mechanical life operations | 25000 /h | Weight | 0.999 |
Degree of protection (IP) | IP40 | DIN rail (top hat rail) mounting optional | True |
Suitable for DIN rail (top hat rail) mounting | False | Insulation voltage | Rated 1000V per IEC |
Type of electrical connection of main circuit | Screw connection | Position of connection for main current circuit | Front side |
Motor drive optional | True | With switched-off indicator | False |
Motor drive integrated | False | Protection type | Electronic LSIG-long and short time, high instantaneous, ground fault |
Rated ultimate short-circuit breaking capacity (Icu) per IEC 60947-2 rating | 70kA @ 500V DC with 3 pole in series, thermal-magnetic trip only | Interrupting rating per UL 489/CSA C22.2, No. 5 | 65kA @ 480V, 50/60 Hz |
Rated service short-circuit breaking capacity (Ics(% Icu)) per IEC 60947-2 rating | 100% @ 690V AC, 50/60 Hz | Protection typeâElectronic S (short time trip units) | I2 = 1...10 x In (150...1500), t2 = 0.05, 0.1, 0.2, 0.4 s |
Protection typeâElectronic G (ground fault trip units) | I4 = 0.2...1 x In (30...150), t2 = 0.1, 0.2, 0.4, 0.8 s | Interrupting rating (I2t) | 990x103 @ rated current up to 250 A, rated voltage 600V AC |
Intermediate point (I2t) | 853x103 @ rated current up to 250 A, rated voltage 480V AC | Threshold current (I2t) | 582x103 @ rated current up to 250 A, rated voltage 600V AC |
Threshold current (Ip) | 14.4 kA @ rated current up to 250 A, rated voltage 480V AC | Interrupting rating (Ip) | 30 kA @ rated current up to 250 A, rated voltage 480V AC |
Intermediate point (Ip) | 91.1 kA @ rated current up to 250 A, rated voltage 600V AC | Interrupting rating (Irms) | 65 kA @ rated current up to 250 A, rated voltage 480V AC |
Threshold current (Irms) | 10 kA @ rated current up to 250 A, rated voltage 600V AC | Intermediate point (Irms) | 42 kA @ rated current up to 250 A, rated voltage 480V AC |
Protection typeâElectronic L (long time trip units) | I1 = 0.4...1 x In (60...150), t1 = 3, 12, 36, 60 s | Electrical life cycle | 8000 ops @ 415V AC |
Protection typeâElectronic I (instantaneous trip units) | I3 = 1...10 x In (150...1500) | Frame size | 125 A |
Rated impulse withstand voltage (Uimp) | 8 kV | Type of control element | Toggle |
Rated permanent current Iu | 150 A | Complete device with protection unit | True |
Integrated earth fault protection | True | Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 70 kA |
With integrated under voltage release | False | Number of auxiliary contacts as change-over contact | 1 |
Number of poles | 3 |
Specifications may be subject to change without notice
