Product Model

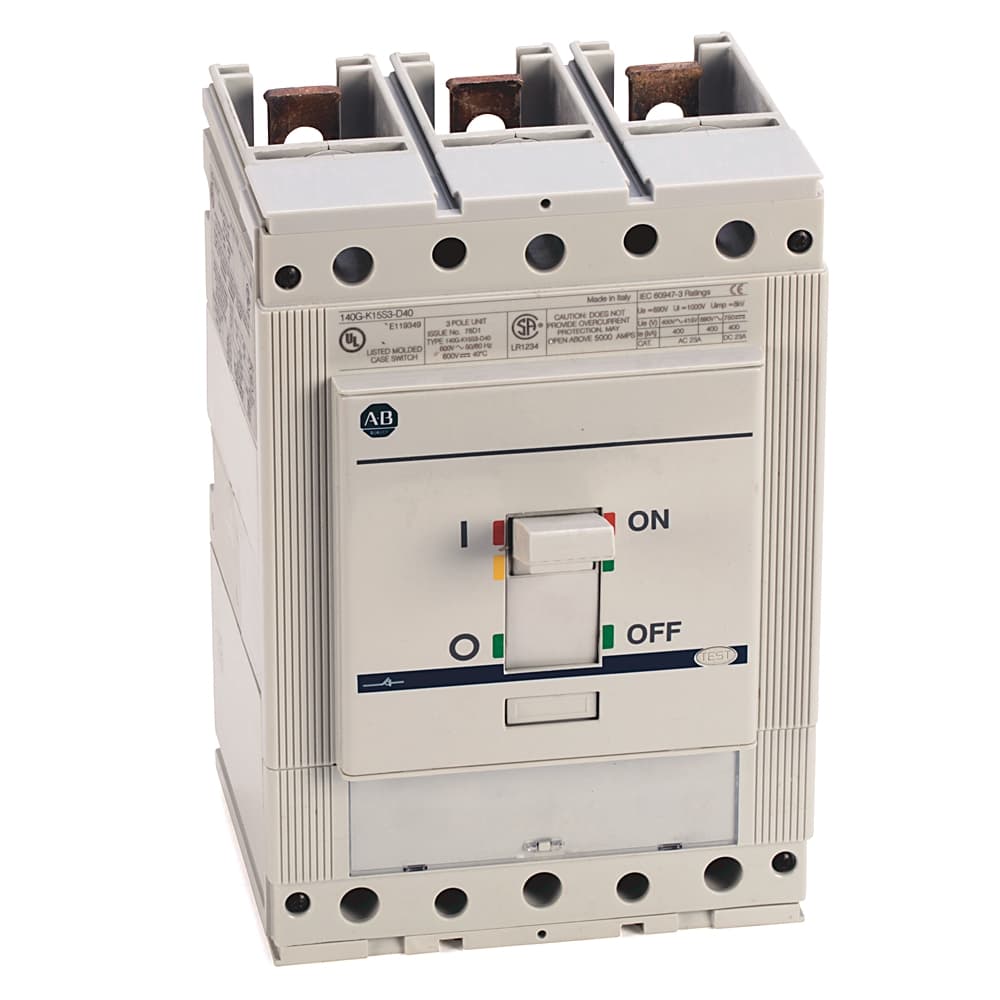

140G-K15X3
Selling Points
- 11. High Breaking Capacity: The Allen-Bradley 140G-K15X3 boasts a breaking capacity of 200kA at 415V, ensuring it can handle high current surges effectively.;
- 22. Dual Protection Mechanism: Equipped with both thermal magnetic and electronic protection, this circuit breaker offers comprehensive protection against overcurrent and short circuits.;
- 33. Global Certification: Certified with UL, CSA, and CCC standards, the 140G-K15X3 meets global industry requirements for safety and performance.;
- 44. Versatile Application: Ideal for line protection of control panels, this circuit breaker is suitable for a wide range of industrial applications.;
- 55. Reliable Performance: With a rating of 400A and a 150kA interrupting rating at 480V, the 140G-K15X3 provides reliable performance in demanding electrical environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Weight | 3.738 | Stock Status | NON_STOCKED |
Dimension Length | 29.464 | Dimension Width | 25.4 |
Lead Time | 42 | Dimension Height | 24.638 |
Quick Turnaround | false | Preferred Availability | false |
Repairable | NOT_REPAIRABLE | UL Interrupting Rating | 150kA @ 480V |
Standards Compliance | UL489, CSA22.2 No. 5, IEC 60947-2 | Rating/Size | 400 A, K-Frame |
Protection | Thermal Magnetic/Electronic | IEC Breaking Capacity | 200kA @ 415V |
Certifications | UL Listed, CSA Certified, CE, CCC | Adjustment Type | Frame Only |
Specifications may be subject to change without notice
