Product Model

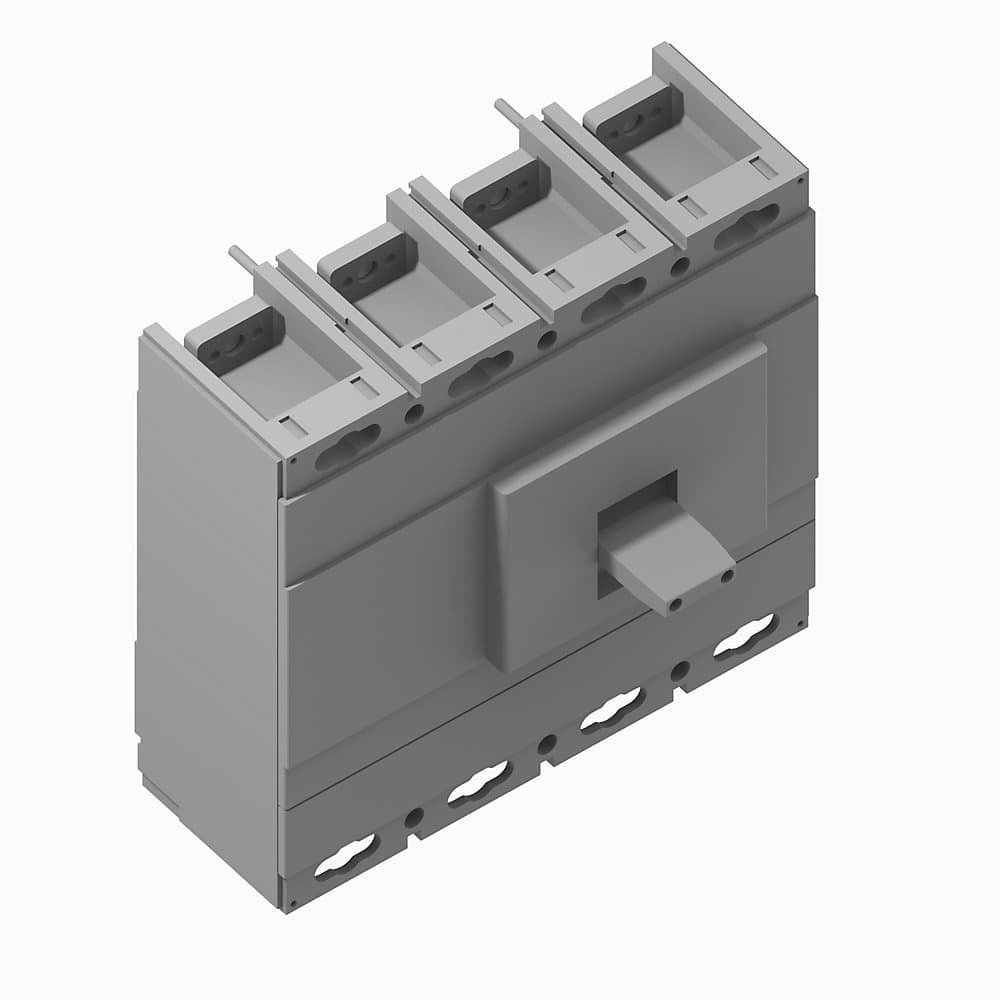

140G-M6S4-D80-SJ-CJ
Selling Points
- 11. High Interrupting Capacity: The 140G-M6S4-D80-SJ-CJ boasts an impressive interrupting capacity of 65kA at 480V AC, ensuring reliable operation even in high-short-circuit conditions.;
- 22. Thermal/Magnetic Protection: Equipped with thermal/magnetic protection, this circuit breaker provides comprehensive overcurrent protection, ensuring the safety of your electrical system.;
- 33. Global Certification: Certified for global applications by UL, CSA, CCC, and IEC, the 140G-M6S4-D80-SJ-CJ meets international standards for performance and safety.;
- 44. Wide Range of Mounting Options: This circuit breaker offers a variety of mounting options, making it versatile for different installation requirements.;
- 55. Reliable Line Protection: Designed for line protection in control panels, the 140G-M6S4-D80-SJ-CJ ensures that your electrical system operates safely and efficiently, reducing the risk of electrical faults and downtime.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Stock Status | NON_STOCKED | Dimension Length | 37.2 |
Dimension Width | 29.0 | Lead Time | 23 |
Dimension Height | 30.6 | Quick Turnaround | false |
Preferred Availability | false | Repairable | NOT_REPAIRABLE |
Ambient temperature without derating | 104 °F | Rated uninterrupted current (Iu) | 98% of current rating @ 3000 m (9840 ft) altitude |
Operational voltage (Ue) | 90% of voltage rating @ 3000 m (9840 ft) altitude | Wire temperature rating | Al or Cu 75 °C |
Storage temperature | -40 °F | Depth | 103.5 mm |
Width | 280 mm | Device construction | Built-in device fixed built-in technique |
Height | 268 mm | Factory option | Shunt-trip, 24...30V AC/DC |
Vibration | 2...13.2 Hz ±1 mm, 13.2...100 Hz ±0.7 G | Mechanical life operations | 20000 /h |
Weight | 12.164 | Degree of protection (IP) | IP40 |
DIN rail (top hat rail) mounting optional | True | Suitable for DIN rail (top hat rail) mounting | False |
Type of electrical connection of main circuit | Screw connection | Position of connection for main current circuit | Front side |
Motor drive optional | True | With switched-off indicator | False |
Motor drive integrated | False | Protection type | Molded case switch (isolator) |
Rated service short-circuit breaking capacity (Ics) | IEC 60947-2: 75% Icu @ 750V DC, 3-poles in series, thermal-magnetic trip units only | Rated ultimate short-circuit breaking capacity (Icu) | IEC 60947-2: 70kA @ 400...415V AC, 50/60 Hz |
Interrupting rating | 65kA @ 480V AC, 50/60 Hz per NEMA, UL, CSA | Operating current (In), max | 800A @ 50°C (122 ?F) per IEC |
Electrical life cycle | 7000 (600...630 A)/5000 (800 A) @ 415V AC | Insulation voltage (Ui) | Rated 1000V per IEC |
Watt loss | Molded case switch type: 128 W | Voltage for reverse-fed circuit breaker, max | 690V AC per IEC |
Current range | 80% MCCB | Frame size | 800 A |
Rated impulse withstand voltage (Uimp) | 8 kV | Type of control element | Toggle |
Rated permanent current Iu | 800 A | Complete device with protection unit | False |
Integrated earth fault protection | False | With integrated under voltage release | False |
Number of auxiliary contacts as change-over contact | 3 | Number of poles | 4 |
Specifications may be subject to change without notice
