Product Model

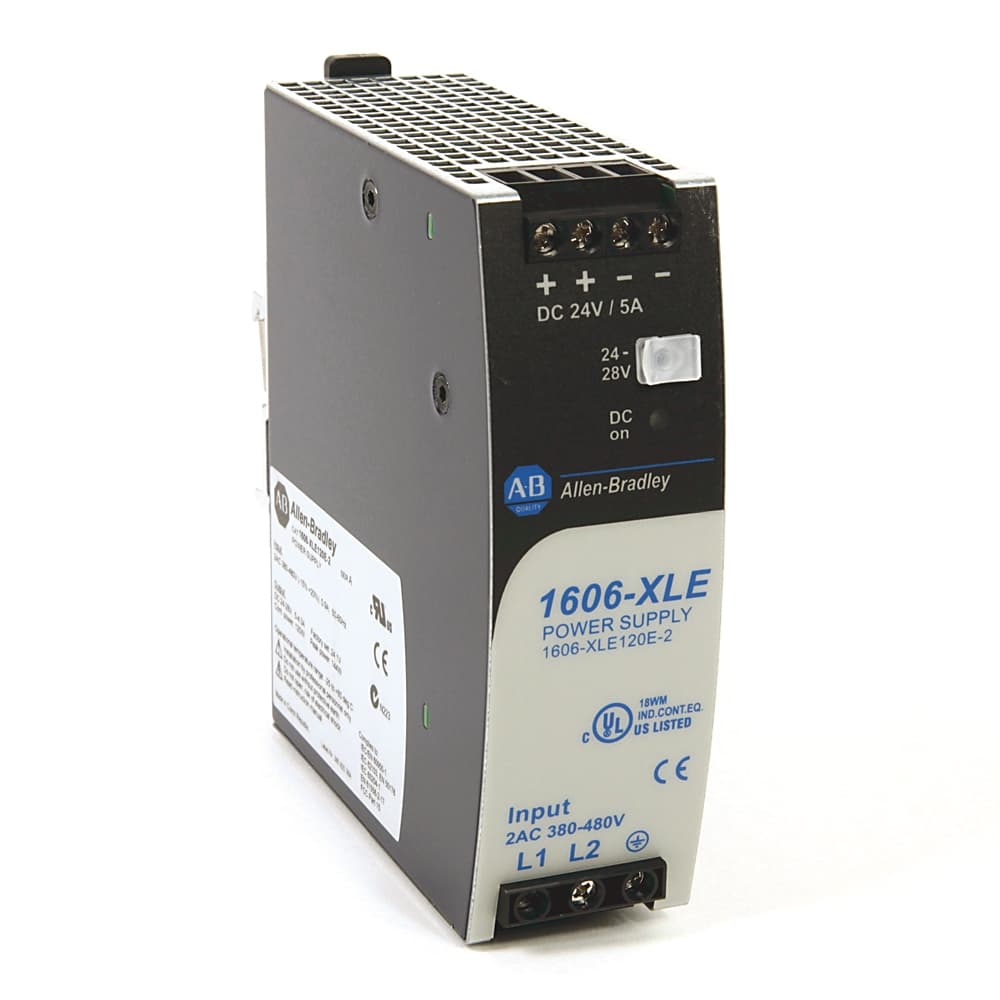

1606-XLE120EN
Selling Points
- 11. Compact Design: The 1606-XLE120EN is ultra-slim, making it ideal for space-constrained industrial environments.;
- 22. Adjustable Voltage: The secondary voltage is adjustable, allowing for flexibility in meeting various application requirements.;
- 33. High Efficiency: With an efficiency of 90.0% typical, this power supply reduces energy consumption and minimizes heat generation, extending its lifespan.;
- 44. Robust Protection: Equipped with an NTC input inrush current limiter and a dynamic 120% power boost under 45°C, it provides robust protection against inrush currents and overloads.;
- 55. Durable Construction: Designed to withstand industrial conditions, it has a high Mean Time Between Failures (MTBF) of 740,000 hours at 40°C, ensuring reliable operation over extended periods.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Stock Status | STOCKED | Dimension Length | 15.088 |
Dimension Width | 14.3 | Lead Time | 5 |
Dimension Height | 6.299 | Quick Turnaround | false |
Preferred Availability | true | Repairable | NOT_REPAIRABLE |
Weight | 0.553 | Relative humidity | 5 to 95 % |
Lifetime, min | 58 kh (+40 °C) | Storage temperature | -25 °C |
Operating temperature | -10 °C | Ripple and noise, max | 50 mV |
Vibration | 2 g | Wall mounting possible | Yes |
MTBF | 740 kh (40 °C, SN29500) | Shock | 30 G, 6ms 20 G, 11ms |
Type of electric connection | Screw connection | Degree of protection (IP) | IP20 |
Width | 32 mm | Direct mounting possible | No |
Depth | 117 mm | Height | 124 mm |
Stabilized | Yes | Rail mounting possible | Yes |
Output voltage stabilized | Yes | Rated input current | 1.4 A |
Special family function | Dynamic 120% power boost under 45C Degree | Input inrush current | 45 A |
Efficiency | 90.0% typical | Hold-up time | >78 ms @ 240V |
Sub group | Essential line | Power losses | 13.5 W typical |
External input fuse, min | B-16 A or C-10 A | Rated output current | 5A @ 24V |
Operational range | 90â¦132V AC | Power factor | 0.59 typical |
Adjustment range | 24 V | Input inrush current limiter | NTC |
Derating | 3 w/°c | Power reserves | 20 % |
Rated supply voltage at AC 60 Hz | 100 V | Rated supply voltage at AC 50 Hz | 100 V |
1st secondary output voltage | 24 V | Voltage type of supply voltage | AC |
Power output | 120 W | Nominal value output current 1 | 5 A |
Max. output current 1 | 5 A | Secondary voltage adjustable | Yes |
Nominal value output voltage 1 | 24 V | Product Family | Power Supply XLE |
Specifications may be subject to change without notice
