Product Model

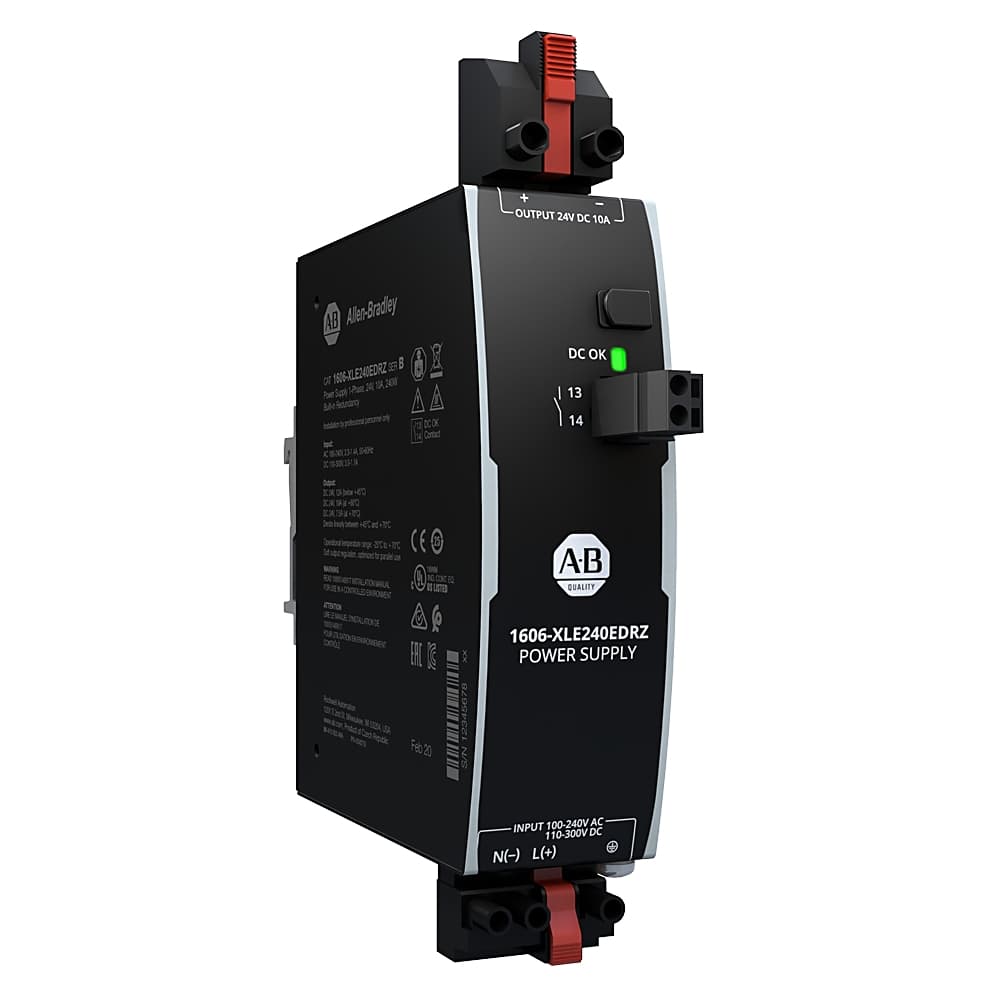

1606-XLE240EDRZ
Selling Points
- 11. Redundancy Module for High Availability: The 1606-XLE240EDRZ features an active redundancy module, ensuring continuous operation even in case of a primary power supply failure. This module supports load-sharing configurations, enhancing system reliability.;
- 22. High Efficiency: With a typical efficiency of 0.97, this power supply minimizes heat generation and reduces energy losses. This results in a cooler operation and longer lifespan of the device.;
- 33. Compact Design: The 1606-XLE240EDRZ is designed to be ultra-compact, making it easy to integrate into various control systems without occupying excessive space.;
- 44. Wide Operating Temperature Range: This power supply operates within a wide temperature range of -25°C to +70°C, ensuring reliable performance in diverse environmental conditions.;
- 55. Enhanced Safety Features: The device includes multiple safety features such as DC OK LED indicators and overload protection, ensuring safe operation and minimizing the risk of system failures.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Stock Status | NON_STOCKED | Dimension Length | 15.24 |
Dimension Width | 14.288 | Lead Time | 5 |
Dimension Height | 9.525 | Quick Turnaround | false |
Preferred Availability | false | Repairable | NOT_REPAIRABLE |
Weight | 0.748 | Lifetime, min | 109 kh (+40 °C) |
Operating temperature | -25 °C | Ripple and noise, max | 50 mV |
Wall mounting possible | Yes | MTBF | 641 kh (+40 °C, SN29500) |
Type of electric connection | Plug-in connection | Degree of protection (IP) | IP20 |
Width | 39 mm | Direct mounting possible | No |
Depth | 117 mm | Height | 124 mm |
Adjustment range | Fixed | Stabilized | Yes |
Rail mounting possible | Yes | Output voltage stabilized | Yes |
Input inrush current | 6 A/9 A | Efficiency | 94.7 % typical |
Derating | 6 W/°C | Power losses | 13.4 W typical |
External input fuse, min | B-6 A or C-6 A | Power factor | 0.97 typical |
Input inrush current limiter | Active | Hot-swap | Yes |
DC OK relay contact | Yes | Power reserves | 20 % |
Rated supply voltage at DC | 110 V | Rated supply voltage at AC 60 Hz | 100 V |
Rated supply voltage at AC 50 Hz | 100 V | Voltage type of supply voltage | AC/DC |
Power output | 240 W | Nominal value output current 1 | 10 A |
Secondary voltage adjustable | No | Nominal value output voltage 1 | 24 V |
Specifications may be subject to change without notice
