Product Model

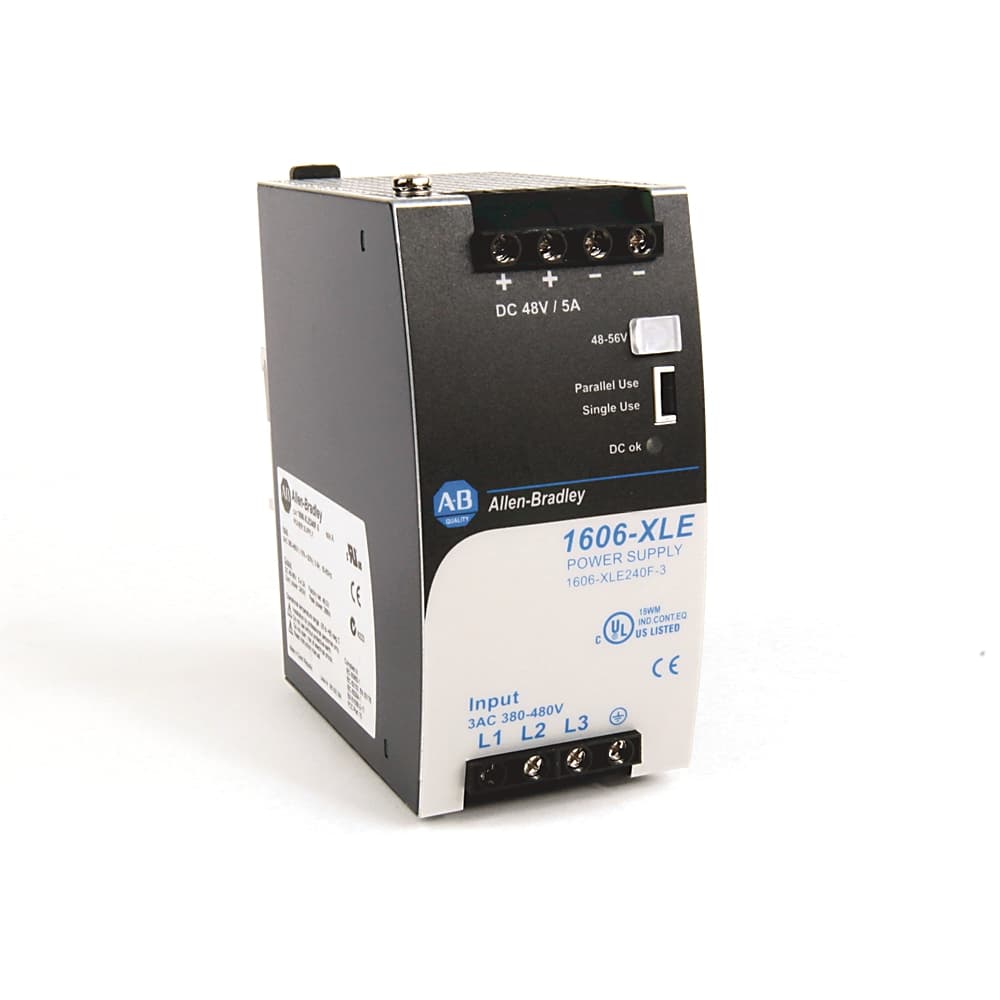

1606-XLE240F-3
Selling Points
- 11. High Efficiency: The 1606-XLE240F-3 achieves an efficiency of up to 92.9%, minimizing energy losses and reducing operating costs.;
- 22. Wide Input Voltage Range: With an input voltage range of 380-480V AC, this power supply can be easily integrated into various industrial settings, ensuring flexibility and adaptability.;
- 33. Excellent Partial Load Efficiency: The power supply maintains high efficiency even under partial load conditions, making it ideal for applications with varying power demands.;
- 44. 20% Power Reserve: The device includes a 20% power reserve, which can be used continuously at temperatures up to +45°C, enhancing its reliability and operational stability.;
- 55. Minimal Inrush Current Surge: The power supply features an electronic inrush current limitation, minimizing the surge during startup and reducing the risk of fuse tripping.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Stock Status | STOCKED | Dimension Length | 15.189 |
Dimension Width | 9.398 | Lead Time | 5 |
Dimension Height | 14.605 | Quick Turnaround | false |
Preferred Availability | false | Repairable | NOT_REPAIRABLE |
Weight | 0.889 | Lifetime, min | 114 kh (+40 °C) |
Operating temperature | -25 °C | Ripple and noise, max | 100 mV |
Wall mounting possible | Yes | MTBF | 1019 kh (+40 °C, SN29500) |
Type of electric connection | Screw connection | Degree of protection (IP) | IP20 |
Width | 62 mm | Direct mounting possible | No |
Depth | 117 mm | Height | 124 mm |
Stabilized | Yes | Rail mounting possible | Yes |
Output voltage stabilized | Yes | Input inrush current | 4 A/4 A |
Derating | 6 W/°C | Power losses | 18.6 W typical |
External input fuse, min | B-6 A or C-3 A | Output current range | 5 to 4.3 A |
Power factor | 0.53 typical | Input inrush current limiter | Active |
Power reserves | 20 % | Rated supply voltage at AC 60 Hz | 380 V |
Rated supply voltage at AC 50 Hz | 380 V | 1st secondary output voltage | 48 V |
Voltage type of supply voltage | AC | Power output | 240 W |
Nominal value output current 1 | 5 A | Max. output current 1 | 5 A |
Secondary voltage adjustable | Yes | Nominal value output voltage 1 | 48 V |
Input Circuit Protection | 6 A Slow Blow Fuse or?Cat. No. 1489-A3C060 | Efficiency | 92.8 % typical |
Specifications may be subject to change without notice
