Product Model

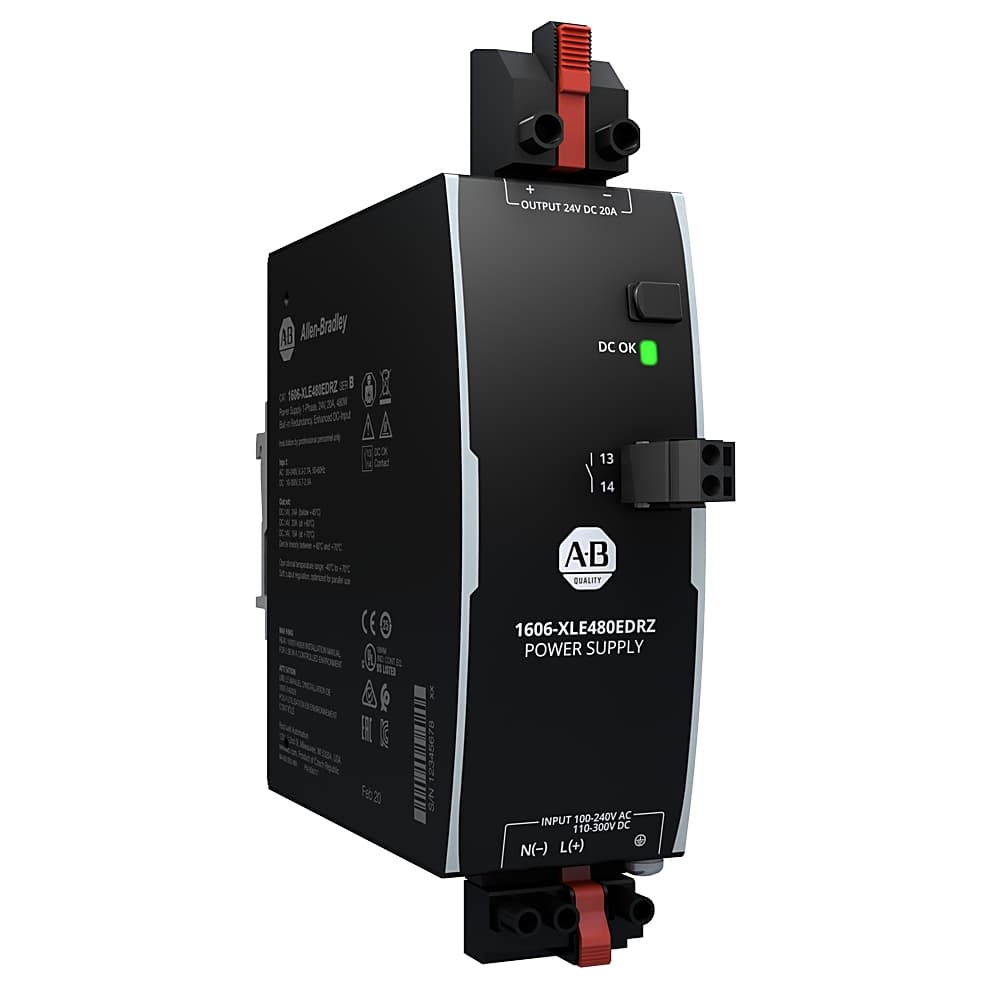

1606-XLE480EDRZ
Selling Points
- 11. High Power Output: The 1606-XLE480EDRZ delivers 480 watts of power, making it suitable for demanding applications that require a reliable and high-capacity power supply.;
- 22. Built-in Redundancy: This power supply features built-in redundancy, ensuring continuous operation even in the event of a primary unit failure. It supports 1+1 or N+1 redundancy configurations.;
- 33. Extended DC Input Range: The 1606-XLE480EDRZ has an extended DC input range, allowing it to operate efficiently with a variety of input voltages, from 110 to 300 volts.;
- 44. Active Inrush Current Limiting: The power supply includes an active inrush current limiter, which helps reduce the initial surge in current when the power supply is turned on, extending its lifespan and improving overall efficiency.;
- 55. High Efficiency and Low Ripple: With an efficiency of 95.2% typical, the 1606-XLE480EDRZ minimizes heat generation and reduces power losses. It also features a maximum ripple and noise of 50 mV, ensuring clean and stable output voltage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Dimension Unit | CM | Weight Unit | KG |
Stock Status | NON_STOCKED | Dimension Length | 6.604 |
Dimension Width | 7.874 | Lead Time | 5 |
Dimension Height | 10.668 | Quick Turnaround | false |
Preferred Availability | false | Repairable | NOT_REPAIRABLE |
Weight | 0.998 | Lifetime, min | 90 kh (+40 °C) |
Operating temperature | -40 °C | Ripple and noise, max | 100 mV |
Wall mounting possible | Yes | MTBF | 543 kh (+40 °C, SN29500) |
Type of electric connection | Plug-in connection | Degree of protection (IP) | IP20 |
Width | 48 mm | Direct mounting possible | No |
Depth | 127 mm | Height | 124 mm |
Adjustment range | Fixed | Stabilized | Yes |
Rail mounting possible | Yes | Output voltage stabilized | Yes |
Input inrush current | 10 A/4.5 A | Efficiency | 95.2 % typical |
Derating | 12 W/°C | Power losses | 24.2 W typical |
External input fuse, min | B-10 A or C-10 A | Power factor | 0.98 typical |
Input inrush current limiter | Active | Hot-swap | Yes |
DC OK relay contact | Yes | Power reserves | 20 % |
Rated supply voltage at DC | 110 V | Rated supply voltage at AC 60 Hz | 100 V |
Rated supply voltage at AC 50 Hz | 100 V | Voltage type of supply voltage | AC/DC |
Power output | 480 W | Nominal value output current 1 | 20 A |
Secondary voltage adjustable | No | Nominal value output voltage 1 | 24 V |
Specifications may be subject to change without notice
